Edit product details -

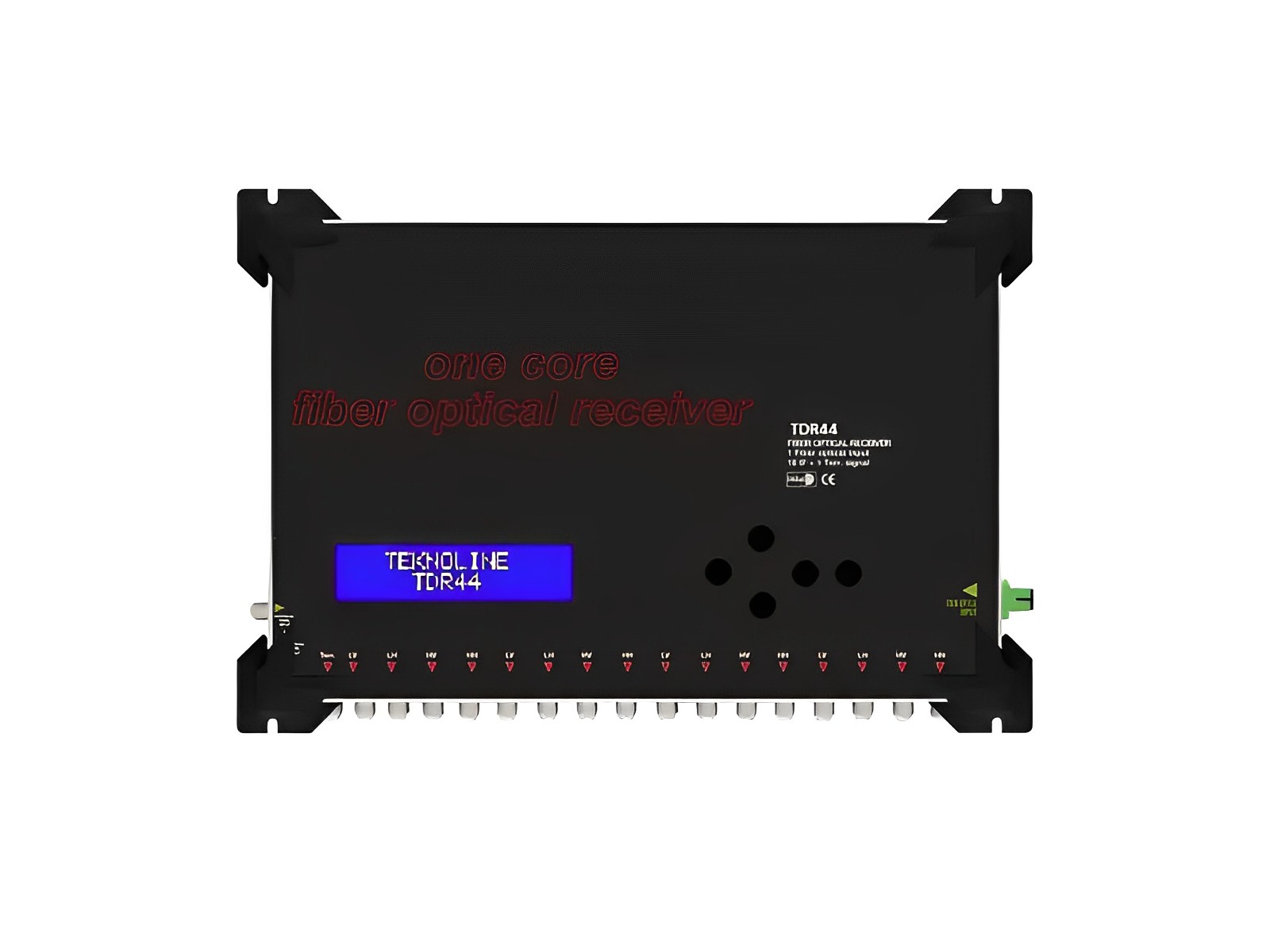

Fiber Optic Receiver 16 if + 1 Rf
Preview
Save
Save and Continue Edit
Copy product
Delete
ID
Created on
12/13/2023 10:32:12 AM
Updated on
12/20/2023 4:06:29 PM
URL of the product page
https://www.alderishop.com/fiber-optic-receiver-16-if-1-rf-2/
Product type
Simple product
Grouped product
Bundled product
Published
Visibility
Fully visible
In search results
On product detail pages
Not visible
Product template
Default Product Template
Standard
English
العربية
Turkce
Russian (Russia)
السلوفاكية (سلوفاكيا)
Product name
Short description
Full description
<ul><li>0dB AGC Digital Control Fiber optic receiver system over a single fiber optic core</li><li>Gain adjustment for each input</li><li>Voltage led indicators</li><li>High insulation compact plug and play</li><li>High performance special power supply</li><li>External Terr Input</li><li><li>Input 1 SC/APC (Full Band) Optical Connector</li><li>Output 17 F Connectors (16IF+1RF)(75ohm)</li><li>Terr Frequency Range 47-870MHZ</li><li>Satellite Frequency Range 950-2150MHZ</li><li>Satellite Gain 26 dB ± 1</li><li>Terr Gain (DVB-C / DVB-T) 33 dB ± 1</li><li>AGC Setting 0...20dB</li><li>Optical Wavelength Width 1270...1570nm (CWDM)</li><li>Optical Input Power 2 mW</li><li>Satellite-to-Satellite Isolation >35dB</li><li>Satellite-TERR Isolation >40dB</li><li>Supply Power 12V-5V 3000mA / 18 W</li><li>Operating Temperature -25+50°C</li><li>Dimensions 310x235x58 mm</li><li>Weight 900 gr.</li></li></ul>
0dB AGC Digital Control Fiber optic receiver system over a single fiber optic core
Gain adjustment for each input
Voltage led indicators
High insulation compact plug and play
High performance special power supply
External Terr Input
Input 1 SC/APC (Full Band) Optical Connector
Output 17 F Connectors (16IF+1RF)(75ohm)
Terr Frequency Range 47-870MHZ
Satellite Frequency Range 950-2150MHZ
Satellite Gain 26 dB ± 1
Terr Gain (DVB-C / DVB-T) 33 dB ± 1
AGC Setting 0...20dB
Optical Wavelength Width 1270...1570nm (CWDM)
Optical Input Power 2 mW
Satellite-to-Satellite Isolation >35dB
Satellite-TERR Isolation >40dB
Supply Power 12V-5V 3000mA / 18 W
Operating Temperature -25+50°C
Dimensions 310x235x58 mm
Weight 900 gr.
Product name
Short description
Full description
<ul><li>0dB AGC Digital Control Fiber optic receiver system over a single fiber optic core</li><li>Gain adjustment for each input</li><li>Voltage led indicators</li><li>High insulation compact plug and play</li><li>High performance special power supply</li><li>External Terr Input</li><li><li>Input 1 SC/APC (Full Band) Optical Connector</li><li>Output 17 F Connectors (16IF+1RF)(75ohm)</li><li>Terr Frequency Range 47-870MHZ</li><li>Satellite Frequency Range 950-2150MHZ</li><li>Satellite Gain 26 dB ± 1</li><li>Terr Gain (DVB-C / DVB-T) 33 dB ± 1</li><li>AGC Setting 0...20dB</li><li>Optical Wavelength Width 1270...1570nm (CWDM)</li><li>Optical Input Power 2 mW</li><li>Satellite-to-Satellite Isolation >35dB</li><li>Satellite-TERR Isolation >40dB</li><li>Supply Power 12V-5V 3000mA / 18 W</li><li>Operating Temperature -25+50°C</li><li>Dimensions 310x235x58 mm</li><li>Weight 900 gr.</li></li></ul>
0dB AGC Digital Control Fiber optic receiver system over a single fiber optic core
Gain adjustment for each input
Voltage led indicators
High insulation compact plug and play
High performance special power supply
External Terr Input
Input 1 SC/APC (Full Band) Optical Connector
Output 17 F Connectors (16IF+1RF)(75ohm)
Terr Frequency Range 47-870MHZ
Satellite Frequency Range 950-2150MHZ
Satellite Gain 26 dB ± 1
Terr Gain (DVB-C / DVB-T) 33 dB ± 1
AGC Setting 0...20dB
Optical Wavelength Width 1270...1570nm (CWDM)
Optical Input Power 2 mW
Satellite-to-Satellite Isolation >35dB
Satellite-TERR Isolation >40dB
Supply Power 12V-5V 3000mA / 18 W
Operating Temperature -25+50°C
Dimensions 310x235x58 mm
Weight 900 gr.
Product name
Short description
Full description
<ul><li>نظام استقبال الألياف الضوئية للتحكم الرقمي 0dB AGC عبر قلب واحد من الألياف الضوئية</li><li>كسب التعديل لكل المدخلات</li><li>مؤشرات الجهد بقيادة</li><li>التوصيل والتشغيل المدمج عالي العزل</li><li>مصدر طاقة خاص عالي الأداء</li><li>مدخلات تير الخارجية</li><li><li>الإدخال 1 موصل بصري SC/APC (نطاق كامل).</li><li>مخرج 17 موصل F (16IF+1RF)(75ohm)</li><li>نطاق التردد تير 47-870 ميجا هرتز</li><li>نطاق تردد الأقمار الصناعية 950-2150 ميجا هرتز</li><li>كسب القمر الصناعي 26 ديسيبل ± 1</li><li>كسب Terr (DVB-C / DVB-T) 33 ديسيبل ± 1</li><li>إعداد AGC 0...20 ديسيبل</li><li>عرض الطول الموجي البصري 1270...1570 نانومتر (CWDM)</li><li>طاقة الإدخال الضوئية 2 ميجاوات</li><li>عزل الأقمار الصناعية إلى الأقمار الصناعية> 35 ديسيبل</li><li>عزل القمر الصناعي TERR> 40 ديسيبل</li><li>طاقة إمداد 12 فولت - 5 فولت 3000 مللي أمبير / 18 وات</li><li>درجة حرارة التشغيل -25+50 درجة مئوية</li><li>الأبعاد 310x235x58 ملم</li><li>الوزن 900 جرام.</li></li></ul>
نظام استقبال الألياف الضوئية للتحكم الرقمي 0dB AGC عبر قلب واحد من الألياف الضوئية
كسب التعديل لكل المدخلات
مؤشرات الجهد بقيادة
التوصيل والتشغيل المدمج عالي العزل
مصدر طاقة خاص عالي الأداء
مدخلات تير الخارجية
الإدخال 1 موصل بصري SC/APC (نطاق كامل).
مخرج 17 موصل F (16IF+1RF)(75ohm)
نطاق التردد تير 47-870 ميجا هرتز
نطاق تردد الأقمار الصناعية 950-2150 ميجا هرتز
كسب القمر الصناعي 26 ديسيبل ± 1
كسب Terr (DVB-C / DVB-T) 33 ديسيبل ± 1
إعداد AGC 0...20 ديسيبل
عرض الطول الموجي البصري 1270...1570 نانومتر (CWDM)
طاقة الإدخال الضوئية 2 ميجاوات
عزل الأقمار الصناعية إلى الأقمار الصناعية> 35 ديسيبل
عزل القمر الصناعي TERR> 40 ديسيبل
طاقة إمداد 12 فولت - 5 فولت 3000 مللي أمبير / 18 وات
درجة حرارة التشغيل -25+50 درجة مئوية
الأبعاد 310x235x58 ملم
الوزن 900 جرام.
Product name
Short description
Full description
<ul><li>0dB AGC Digital Kontrol Tek fiber optik core üzerinden fiber optik alıcı sistem</li><li>Her giriş için kazanç ayarı</li><li>Voltaj led göstergeleri</li><li>Yüksek izolasyon kompakt tak ve çalıştır</li><li>Yüksek performans özel güç kaynağı</li><li>Harici Terr Girişi</li><li><li>Giriş<span style="white-space:pre"> </span>1 SC/APC (Full Band) Optical Connector</li><li>Çıkış <span style="white-space:pre"> </span>17 F Connectors (16IF+1RF)(75ohm)</li><li>Terr Frekans Aralığı<span style="white-space:pre"> </span>47-870MHZ</li><li>Uydu Frekans Aralığı<span style="white-space:pre"> </span>950-2150MHZ</li><li>Uydu Kazanç<span style="white-space:pre"> </span>26 dB ± 1</li><li>Terr Kazancı (DVB-C / DVB-T)<span style="white-space:pre"> </span>33 dB ± 1</li><li>AGC Ayarı<span style="white-space:pre"> </span>0...20dB</li><li>Optik Dalga Boyu Genişliği<span style="white-space:pre"> </span>1270...1570nm (CWDM)</li><li>Optik Giriş Gücü<span style="white-space:pre"> </span>2 mW</li><li>Uydu-Uydu İzolasyon<span style="white-space:pre"> </span>>35dB</li><li>Uydu-TERR İzolasyon<span style="white-space:pre"> </span>>40dB</li><li>Besleme Gücü<span style="white-space:pre"> </span>12V-5V 3000mA / 18 W</li><li>Çalışma Sıcaklığı<span style="white-space:pre"> </span>-25+50°C</li><li>Ölçüler <span style="white-space:pre"> </span>310x235x58 mm</li><li>Ağırlık<span style="white-space:pre"> </span>900 gr.</li></li></ul>
0dB AGC Digital Kontrol Tek fiber optik core üzerinden fiber optik alıcı sistem
Her giriş için kazanç ayarı
Voltaj led göstergeleri
Yüksek izolasyon kompakt tak ve çalıştır
Yüksek performans özel güç kaynağı
Harici Terr Girişi
Giriş
1 SC/APC (Full Band) Optical Connector
Çıkış
17 F Connectors (16IF+1RF)(75ohm)
Terr Frekans Aralığı
47-870MHZ
Uydu Frekans Aralığı
950-2150MHZ
Uydu Kazanç
26 dB ± 1
Terr Kazancı (DVB-C / DVB-T)
33 dB ± 1
AGC Ayarı
0...20dB
Optik Dalga Boyu Genişliği
1270...1570nm (CWDM)
Optik Giriş Gücü
2 mW
Uydu-Uydu İzolasyon
>35dB
Uydu-TERR İzolasyon
>40dB
Besleme Gücü
12V-5V 3000mA / 18 W
Çalışma Sıcaklığı
-25+50°C
Ölçüler
310x235x58 mm
Ağırlık
900 gr.
