Ürün bilgilerini düzenle - Pnomatic Direction Flap

Ürünü kopyala

Oluşturulma tarihi

30.11.2022 10:52:59

Güncellenme tarihi

21.07.2023 17:27:21

Ürün sayfasının URL'si

https://www.alderishop.com/pnoematk-yoen-klapes/

Ürün tipi

Yayınlanmış

görünürlük

Ürün adı

Kısa açıklama

Tam açıklama

<p>Driven directional flap It is used for pneumatic conveying of products to reach different points on one line. The product can be moved to many different points in all directions. It is allowed to change direction while moving the building</p><p><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="125"><col width="81"><col width="81"><col width="81"><col width="81"><col width="81"><col width="81"><col width="81"><col width="81"><col width="165"></colgroup><tbody><tr style="height: 20px;"><td rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;MODEL&quot;}" style="border: 2px solid rgb(0, 0, 0); overflow: hidden; padding: 0px 3px; vertical-align: middle; font-weight: bold; text-align: center;"><span><div style="max-height: 40px;">MODEL</div></span></td><td rowspan="1" colspan="6" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;DIMENSIONS mm&quot;}" style="border-width: 2px 2px 2px 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-weight: bold; text-align: center;">DIMENSIONS mm</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Weight kg&quot;}" style="border-width: 2px 2px 2px 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-weight: bold; white-space: normal; overflow-wrap: break-word; text-align: center;">Weight kg</td><td rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Gross Volume  m3&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0}{&quot;1&quot;:15,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10,&quot;10&quot;:2}}" style="border-width: 2px 2px 2px 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-weight: bold; white-space: normal; overflow-wrap: break-word; text-align: center;"><span><div style="max-height: 40px;"><span style="font-size: 10pt; font-family: Arial; font-weight: bold; font-style: normal;">Gross Volume m</span><span style="font-size: 10pt; font-family: Arial; font-weight: bold; font-style: normal;">3</span></div></span></td></tr><tr style="height: 20px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;A&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-weight: bold; text-align: center;">A</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;B&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-weight: bold; text-align: center;">B</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;øC&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-weight: bold; text-align: center;">øC</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;øD&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-weight: bold; text-align: center;">øD</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;E&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-weight: bold; text-align: center;">E</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;øF&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-weight: bold; text-align: center;">øF</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Net&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-weight: bold; text-align: center;">Net</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Gross &quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-weight: bold; white-space: normal; overflow-wrap: break-word; text-align: center;">Gross</td></tr><tr style="height: 20px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;TMDK-5O&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">TMDK-5O</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;256&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">256</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;251&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">251</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø36-42 ø42-48 ø54-60&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; font-family: &quot;Times New Roman&quot;; font-size: 8pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; text-align: center;">ø36-42&nbsp; &nbsp; &nbsp; &nbsp; &nbsp;ø42-48&nbsp; &nbsp; &nbsp; &nbsp; ø54-60</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø110&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-size: 11pt; text-align: center;">ø110</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;107&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">107</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø179&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-size: 11pt; text-align: center;">ø179</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;32&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">32</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;39&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">39</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.1&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">0.1</td></tr><tr style="height: 20px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;TMDK-70&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">TMDK-70</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;330&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">330</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;310&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">310</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø63-70 ø70-76&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-family: &quot;Times New Roman&quot;; font-size: 8pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; text-align: center;">ø63-70&nbsp; &nbsp; &nbsp; &nbsp; &nbsp;ø70-76</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø130&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-size: 11pt; text-align: center;">ø130</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;126&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">126</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø225&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-size: 11pt; text-align: center;">ø225</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;45&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">45</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;55&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">55</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.3&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">0.3</td></tr><tr style="height: 20px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;TMDK-95&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">TMDK-95</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;345&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">345</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;401&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">401</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø76-83 ø83-89 ø96-102&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; font-family: &quot;Times New Roman&quot;; font-size: 8pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; text-align: center;">ø76-83&nbsp; &nbsp; &nbsp; &nbsp; &nbsp;ø83-89&nbsp; &nbsp; &nbsp; &nbsp; ø96-102</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø165&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-size: 11pt; text-align: center;">ø165</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;154&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">154</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø287&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-size: 11pt; text-align: center;">ø287</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;55&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">55</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;69&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:11}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">69</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.5&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">0.5</td></tr><tr style="height: 20px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;TMDK-125&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">TMDK-125</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;370&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">370</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;492&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">492</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø102-108 ø108-114 ø121-127&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-family: &quot;Times New Roman&quot;; font-size: 8pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; text-align: center;">ø102-108&nbsp; &nbsp; &nbsp;ø108-114&nbsp; &nbsp; ø121-127</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø195&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-size: 11pt; text-align: center;">ø195</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;194&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">194</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø370&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-size: 11pt; text-align: center;">ø370</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;70&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">70</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;83&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:11}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">83</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.7&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">0.7</td></tr><tr style="height: 20px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;TMDK-135&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">TMDK-135</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;425&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">425</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;484&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">484</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø133-139&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-family: &quot;Times New Roman&quot;; font-size: 8pt; font-weight: normal; text-align: center;">ø133-139</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø215&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-size: 11pt; text-align: center;">ø215</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;202&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">202</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø380&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-size: 11pt; text-align: center;">ø380</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;90&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">90</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;103&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">103</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.8&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">0.8</td></tr><tr style="height: 20px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;TMDK-160&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; text-align: center;">TMDK-160</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;581&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; text-align: center;">581</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;544&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; text-align: center;">544</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø153-159 ø162-168&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; font-family: &quot;Times New Roman&quot;; font-size: 8pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; text-align: center;">ø153-159&nbsp; &nbsp; ø162-168</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø274&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; font-size: 11pt; text-align: center;">ø274</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;258&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; text-align: center;">258</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø435&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; font-size: 11pt; text-align: center;">ø435</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;110&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; text-align: center;">110</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;115&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:11}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; text-align: center;">115</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.9&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; text-align: center;">0.9</td></tr></tbody></table>

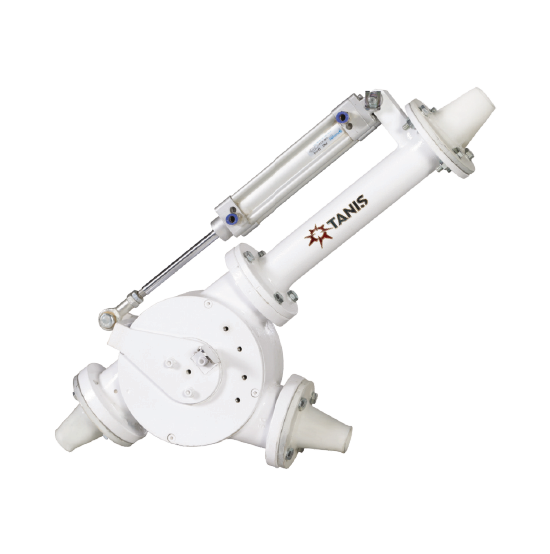

Driven directional flap It is used for pneumatic conveying of products to reach different points on one line. The product can be moved to many different points in all directions. It is allowed to change direction while moving the building

MODEL	DIMENSIONS mm						Weight kg		Gross Volume m3
MODEL	A	B	øC	øD	E	øF	Net	Gross	Gross Volume m3
TMDK-5O	256	251	ø36-42 ø42-48 ø54-60	ø110	107	ø179	32	39	0.1
TMDK-70	330	310	ø63-70 ø70-76	ø130	126	ø225	45	55	0.3
TMDK-95	345	401	ø76-83 ø83-89 ø96-102	ø165	154	ø287	55	69	0.5
TMDK-125	370	492	ø102-108 ø108-114 ø121-127	ø195	194	ø370	70	83	0.7
TMDK-135	425	484	ø133-139	ø215	202	ø380	90	103	0.8
TMDK-160	581	544	ø153-159 ø162-168	ø274	258	ø435	110	115	0.9

Ürün adı

Kısa açıklama

Tam açıklama

<p>Driven directional flap It is used for pneumatic conveying of products to reach different points on one line. The product can be moved to many different points in all directions. It is allowed to change direction while moving the building</p><p><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="125"><col width="81"><col width="81"><col width="81"><col width="81"><col width="81"><col width="81"><col width="81"><col width="81"><col width="165"></colgroup><tbody><tr style="height: 20px;"><td rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;MODEL&quot;}" style="border: 2px solid rgb(0, 0, 0); overflow: hidden; padding: 0px 3px; vertical-align: middle; font-weight: bold; text-align: center;"><div style="max-height: 40px;">MODEL</div></td><td rowspan="1" colspan="6" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;DIMENSIONS mm&quot;}" style="border-width: 2px 2px 2px 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-weight: bold; text-align: center;">DIMENSIONS mm</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Weight kg&quot;}" style="border-width: 2px 2px 2px 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-weight: bold; overflow-wrap: break-word; text-align: center;">Weight kg</td><td rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Gross Volume  m3&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0}{&quot;1&quot;:15,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10,&quot;10&quot;:2}}" style="border-width: 2px 2px 2px 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-weight: bold; overflow-wrap: break-word; text-align: center;"><div style="max-height: 40px;"><span style="font-size: 10pt;">Gross Volume m</span><span style="font-size: 10pt;">3</span></div></td></tr><tr style="height: 20px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;A&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-weight: bold; text-align: center;">A</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;B&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-weight: bold; text-align: center;">B</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;øC&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-weight: bold; text-align: center;">øC</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;øD&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-weight: bold; text-align: center;">øD</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;E&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-weight: bold; text-align: center;">E</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;øF&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-weight: bold; text-align: center;">øF</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Net&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-weight: bold; text-align: center;">Net</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Gross &quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-weight: bold; overflow-wrap: break-word; text-align: center;">Gross</td></tr><tr style="height: 20px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;TMDK-5O&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">TMDK-5O</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;256&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">256</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;251&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">251</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø36-42 ø42-48 ø54-60&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; font-family: &quot;Times New Roman&quot;; font-size: 8pt; overflow-wrap: break-word; text-align: center;">ø36-42&nbsp; &nbsp; &nbsp; &nbsp; &nbsp;ø42-48&nbsp; &nbsp; &nbsp; &nbsp; ø54-60</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø110&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-size: 11pt; text-align: center;">ø110</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;107&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">107</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø179&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-size: 11pt; text-align: center;">ø179</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;32&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">32</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;39&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">39</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.1&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">0.1</td></tr><tr style="height: 20px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;TMDK-70&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">TMDK-70</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;330&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">330</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;310&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">310</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø63-70 ø70-76&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-family: &quot;Times New Roman&quot;; font-size: 8pt; overflow-wrap: break-word; text-align: center;">ø63-70&nbsp; &nbsp; &nbsp; &nbsp; &nbsp;ø70-76</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø130&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-size: 11pt; text-align: center;">ø130</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;126&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">126</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø225&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-size: 11pt; text-align: center;">ø225</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;45&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">45</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;55&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">55</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.3&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">0.3</td></tr><tr style="height: 20px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;TMDK-95&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">TMDK-95</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;345&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">345</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;401&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">401</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø76-83 ø83-89 ø96-102&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; font-family: &quot;Times New Roman&quot;; font-size: 8pt; overflow-wrap: break-word; text-align: center;">ø76-83&nbsp; &nbsp; &nbsp; &nbsp; &nbsp;ø83-89&nbsp; &nbsp; &nbsp; &nbsp; ø96-102</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø165&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-size: 11pt; text-align: center;">ø165</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;154&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">154</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø287&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-size: 11pt; text-align: center;">ø287</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;55&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">55</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;69&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:11}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">69</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.5&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">0.5</td></tr><tr style="height: 20px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;TMDK-125&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">TMDK-125</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;370&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">370</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;492&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">492</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø102-108 ø108-114 ø121-127&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-family: &quot;Times New Roman&quot;; font-size: 8pt; overflow-wrap: break-word; text-align: center;">ø102-108&nbsp; &nbsp; &nbsp;ø108-114&nbsp; &nbsp;ø121-127</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø195&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-size: 11pt; text-align: center;">ø195</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;194&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">194</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø370&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-size: 11pt; text-align: center;">ø370</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;70&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">70</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;83&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:11}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">83</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.7&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">0.7</td></tr><tr style="height: 20px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;TMDK-135&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">TMDK-135</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;425&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">425</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;484&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">484</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø133-139&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-family: &quot;Times New Roman&quot;; font-size: 8pt; text-align: center;">ø133-139</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø215&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-size: 11pt; text-align: center;">ø215</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;202&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">202</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø380&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-size: 11pt; text-align: center;">ø380</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;90&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">90</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;103&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">103</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.8&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">0.8</td></tr><tr style="height: 20px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;TMDK-160&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; text-align: center;">TMDK-160</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;581&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; text-align: center;">581</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;544&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; text-align: center;">544</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø153-159 ø162-168&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; font-family: &quot;Times New Roman&quot;; font-size: 8pt; overflow-wrap: break-word; text-align: center;">ø153-159&nbsp; &nbsp; ø162-168</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø274&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; font-size: 11pt; text-align: center;">ø274</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;258&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; text-align: center;">258</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø435&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; font-size: 11pt; text-align: center;">ø435</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;110&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; text-align: center;">110</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;115&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:11}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; text-align: center;">115</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.9&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; text-align: center;">0.9</td></tr></tbody></table>

MODEL	DIMENSIONS mm						Weight kg		Gross Volume m3
MODEL	A	B	øC	øD	E	øF	Net	Gross	Gross Volume m3
TMDK-5O	256	251	ø36-42 ø42-48 ø54-60	ø110	107	ø179	32	39	0.1
TMDK-70	330	310	ø63-70 ø70-76	ø130	126	ø225	45	55	0.3
TMDK-95	345	401	ø76-83 ø83-89 ø96-102	ø165	154	ø287	55	69	0.5
TMDK-125	370	492	ø102-108 ø108-114 ø121-127	ø195	194	ø370	70	83	0.7
TMDK-135	425	484	ø133-139	ø215	202	ø380	90	103	0.8
TMDK-160	581	544	ø153-159 ø162-168	ø274	258	ø435	110	115	0.9

Ürün adı

Kısa açıklama

Tam açıklama

<p>رفرف اتجاهي مدفوع يتم استخدامه للنقل الهوائي للمنتجات للوصول إلى نقاط مختلفة على خط واحد. يمكن نقل المنتج إلى العديد من النقاط المختلفة في جميع الاتجاهات. يسمح بتغيير الاتجاه أثناء نقل المبنى</p><p style="direction: ltr; "><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium; text-align: start;"></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="rtl" border="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="125"><col width="81"><col width="81"><col width="81"><col width="81"><col width="81"><col width="81"><col width="81"><col width="81"><col width="165"></colgroup><tbody><tr style="height: 20px;"><td dir="rtl" rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الموديل &quot;}" style="border-width: 2px 2px 2px 1px; border-style: solid; border-color: rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-weight: bold; text-align: center;"><span><div style="max-height: 41px;">الموديل</div></span></td><td dir="rtl" rowspan="1" colspan="6" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الأبعاد mm&quot;}" style="border-width: 2px 1px 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-weight: bold; text-align: center;">الأبعاد mm</td><td dir="rtl" rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الوزن kg&quot;}" style="border-width: 2px 1px 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-weight: bold; white-space: normal; overflow-wrap: break-word; text-align: center;">الوزن kg</td><td dir="rtl" rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;حجم التعبئة  m3&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0}{&quot;1&quot;:14,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10,&quot;10&quot;:2}}" style="border-width: 2px 1px 2px 2px; border-style: solid; border-color: rgb(0, 0, 0) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-weight: bold; white-space: normal; overflow-wrap: break-word; text-align: center;"><span><div style="max-height: 41px;"><span style="font-size: 10pt; font-family: Arial; font-weight: bold; font-style: normal;">حجم التعبئة m</span><span style="font-size: 10pt; font-family: Arial; font-weight: bold; font-style: normal;">3</span></div></span></td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;A&quot;}" style="border-width: 1px 1px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-weight: bold; text-align: center;">A</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;B&quot;}" style="border-width: 1px 1px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-weight: bold; text-align: center;">B</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;øC&quot;}" style="border-width: 1px 1px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-weight: bold; text-align: center;">øC</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;øD&quot;}" style="border-width: 1px 1px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-weight: bold; text-align: center;">øD</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;E&quot;}" style="border-width: 1px 1px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-weight: bold; text-align: center;">E</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;øF&quot;}" style="border-width: 1px 1px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-weight: bold; text-align: center;">øF</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الصافي&quot;}" style="border-width: 1px 1px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-weight: bold; text-align: center;">الصافي</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الاجمالي&quot;}" style="border-width: 1px 1px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-weight: bold; white-space: normal; overflow-wrap: break-word; text-align: center;">الاجمالي</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;TMDK-5O&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 1px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">TMDK-5O</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;256&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">256</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;251&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">251</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø36-42 ø42-48 ø54-60&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; font-family: &quot;Times New Roman&quot;; font-size: 8pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; text-align: center;">ø36-42&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;ø42-48&nbsp; &nbsp; &nbsp; &nbsp; &nbsp;ø54-60</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø110&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-size: 11pt; text-align: center;">ø110</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;107&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">107</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø179&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-size: 11pt; text-align: center;">ø179</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;32&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">32</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;39&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">39</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.1&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 1px 1px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">0.1</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;TMDK-70&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 1px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">TMDK-70</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;330&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">330</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;310&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">310</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø63-70 ø70-76&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-family: &quot;Times New Roman&quot;; font-size: 8pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; text-align: center;">ø63-70&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; ø70-76</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø130&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-size: 11pt; text-align: center;">ø130</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;126&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">126</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø225&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-size: 11pt; text-align: center;">ø225</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;45&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">45</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;55&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">55</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.3&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 1px 1px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">0.3</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;TMDK-95&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 1px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">TMDK-95</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;345&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">345</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;401&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">401</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø76-83 ø83-89 ø96-102&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; font-family: &quot;Times New Roman&quot;; font-size: 8pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; text-align: center;">ø76-83&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;ø83-89&nbsp; &nbsp; &nbsp; &nbsp; &nbsp;ø96-102</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø165&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-size: 11pt; text-align: center;">ø165</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;154&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">154</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø287&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-size: 11pt; text-align: center;">ø287</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;55&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">55</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;69&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:11}}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">69</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.5&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 1px 1px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">0.5</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;TMDK-125&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 1px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">TMDK-125</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;370&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">370</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;492&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">492</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø102-108 ø108-114 ø121-127&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-family: &quot;Times New Roman&quot;; font-size: 8pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; text-align: center;">ø102-108&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;ø108-114&nbsp; &nbsp; &nbsp; &nbsp; &nbsp;ø121-127</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø195&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-size: 11pt; text-align: center;">ø195</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;194&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">194</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø370&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-size: 11pt; text-align: center;">ø370</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;70&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">70</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;83&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:11}}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">83</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.7&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 1px 1px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">0.7</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;TMDK-135&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 1px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">TMDK-135</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;425&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">425</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;484&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">484</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø133-139&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-family: &quot;Times New Roman&quot;; font-size: 8pt; font-weight: normal; text-align: center;">ø133-139</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø215&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-size: 11pt; text-align: center;">ø215</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;202&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">202</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø380&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-size: 11pt; text-align: center;">ø380</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;90&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">90</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;103&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">103</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.8&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 1px 1px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">0.8</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;TMDK-160&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; text-align: center;">TMDK-160</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;581&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 1px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; text-align: center;">581</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;544&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 1px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; text-align: center;">544</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø153-159 ø162-168&quot;}" style="border-width: 1px 1px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; font-family: &quot;Times New Roman&quot;; font-size: 8pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; text-align: center;">ø153-159&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;ø162-168</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø274&quot;}" style="border-width: 1px 1px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; font-size: 11pt; text-align: center;">ø274</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;258&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 1px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; text-align: center;">258</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø435&quot;}" style="border-width: 1px 1px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; font-size: 11pt; text-align: center;">ø435</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;110&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 1px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; text-align: center;">110</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;115&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:11}}" style="border-width: 1px 1px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; text-align: center;">115</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.9&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 1px 2px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; text-align: center;">0.9</td></tr></tbody></table>

رفرف اتجاهي مدفوع يتم استخدامه للنقل الهوائي للمنتجات للوصول إلى نقاط مختلفة على خط واحد. يمكن نقل المنتج إلى العديد من النقاط المختلفة في جميع الاتجاهات. يسمح بتغيير الاتجاه أثناء نقل المبنى

الموديل	الأبعاد mm						الوزن kg		حجم التعبئة m3
الموديل	A	B	øC	øD	E	øF	الصافي	الاجمالي	حجم التعبئة m3
TMDK-5O	256	251	ø36-42 ø42-48 ø54-60	ø110	107	ø179	32	39	0.1
TMDK-70	330	310	ø63-70 ø70-76	ø130	126	ø225	45	55	0.3
TMDK-95	345	401	ø76-83 ø83-89 ø96-102	ø165	154	ø287	55	69	0.5
TMDK-125	370	492	ø102-108 ø108-114 ø121-127	ø195	194	ø370	70	83	0.7
TMDK-135	425	484	ø133-139	ø215	202	ø380	90	103	0.8
TMDK-160	581	544	ø153-159 ø162-168	ø274	258	ø435	110	115	0.9

Ürün adı

Kısa açıklama

Tam açıklama

<p>Ürünlerin pnömatik olarak taşınmasında tek bir hat üzerinden farklı noktalara ulaştırılabilmesi için kullanılmaktadır. Ürün tüm yönlerde çok farklı noktalara taşınabilmektedir. Yapı taşıma esnasında yön değiştirmeye imkan vermektedir</p><p><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="125"><col width="81"><col width="81"><col width="81"><col width="81"><col width="81"><col width="81"><col width="81"><col width="81"><col width="165"></colgroup><tbody><tr style="height: 20px;"><td rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;MODEL&quot;}" style="border: 2px solid rgb(0, 0, 0); overflow: hidden; padding: 0px 3px; vertical-align: middle; font-weight: bold; text-align: center;"><span><div style="max-height: 40px;">MODEL</div></span></td><td rowspan="1" colspan="6" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ÖLÇÜLER mm&quot;}" style="border-width: 2px 2px 2px 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-weight: bold; text-align: center;">ÖLÇÜLER mm</td><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot; Ağırlık kg&quot;}" style="border-width: 2px 2px 2px 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-weight: bold; white-space: normal; overflow-wrap: break-word; text-align: center;">Ağırlık kg</td><td rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Ambalaj Hacmi m3&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0}{&quot;1&quot;:15,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10,&quot;10&quot;:2}}" style="border-width: 2px 2px 2px 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-weight: bold; white-space: normal; overflow-wrap: break-word; text-align: center;"><span><div style="max-height: 40px;"><span style="font-size: 10pt; font-family: Arial; font-weight: bold; font-style: normal;">Ambalaj Hacmi m</span><span style="font-size: 10pt; font-family: Arial; font-weight: bold; font-style: normal;">3</span></div></span></td></tr><tr style="height: 20px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;A&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-weight: bold; text-align: center;">A</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;B&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-weight: bold; text-align: center;">B</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;øC&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-weight: bold; text-align: center;">øC</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;øD&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-weight: bold; text-align: center;">øD</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;E&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-weight: bold; text-align: center;">E</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;øF&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-weight: bold; text-align: center;">øF</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Net&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-weight: bold; text-align: center;">Net</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Brüt&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-weight: bold; white-space: normal; overflow-wrap: break-word; text-align: center;">Brüt</td></tr><tr style="height: 20px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;TMDK-5O&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">TMDK-5O</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;256&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">256</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;251&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">251</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø36-42 ø42-48 ø54-60&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; font-family: &quot;Times New Roman&quot;; font-size: 8pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; text-align: center;">ø36-42&nbsp; &nbsp; &nbsp; &nbsp; &nbsp;ø42-48&nbsp; &nbsp; &nbsp; &nbsp; &nbsp;ø54-60</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø110&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-size: 11pt; text-align: center;">ø110</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;107&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">107</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø179&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-size: 11pt; text-align: center;">ø179</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;32&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">32</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;39&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">39</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.1&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">0.1</td></tr><tr style="height: 20px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;TMDK-70&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">TMDK-70</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;330&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">330</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;310&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">310</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø63-70 ø70-76&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-family: &quot;Times New Roman&quot;; font-size: 8pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; text-align: center;">ø63-70&nbsp; &nbsp; &nbsp; &nbsp; &nbsp;ø70-76</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø130&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-size: 11pt; text-align: center;">ø130</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;126&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">126</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø225&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-size: 11pt; text-align: center;">ø225</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;45&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">45</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;55&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">55</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.3&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">0.3</td></tr><tr style="height: 20px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;TMDK-95&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">TMDK-95</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;345&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">345</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;401&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">401</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø76-83 ø83-89 ø96-102&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; font-family: &quot;Times New Roman&quot;; font-size: 8pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; text-align: center;">ø76-83&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; ø83-89&nbsp; &nbsp; &nbsp; &nbsp; &nbsp;ø96-102</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø165&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-size: 11pt; text-align: center;">ø165</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;154&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">154</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø287&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-size: 11pt; text-align: center;">ø287</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;55&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">55</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;69&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:11}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">69</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.5&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">0.5</td></tr><tr style="height: 20px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;TMDK-125&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">TMDK-125</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;370&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">370</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;492&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">492</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø102-108 ø108-114 ø121-127&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-family: &quot;Times New Roman&quot;; font-size: 8pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; text-align: center;">ø102-108&nbsp; &nbsp; &nbsp;ø108-114&nbsp; &nbsp;ø121-127</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø195&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-size: 11pt; text-align: center;">ø195</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;194&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">194</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø370&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-size: 11pt; text-align: center;">ø370</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;70&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">70</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;83&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:11}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">83</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.7&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">0.7</td></tr><tr style="height: 20px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;TMDK-135&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">TMDK-135</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;425&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">425</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;484&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">484</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø133-139&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-family: &quot;Times New Roman&quot;; font-size: 8pt; font-weight: normal; text-align: center;">ø133-139</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø215&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-size: 11pt; text-align: center;">ø215</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;202&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">202</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø380&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; font-size: 11pt; text-align: center;">ø380</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;90&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">90</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;103&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">103</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.8&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: bottom; text-align: center;">0.8</td></tr><tr style="height: 20px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;TMDK-160&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; text-align: center;">TMDK-160</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;581&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; text-align: center;">581</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;544&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; text-align: center;">544</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø153-159 ø162-168&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; font-family: &quot;Times New Roman&quot;; font-size: 8pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; text-align: center;">ø153-159&nbsp; &nbsp; ø162-168</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø274&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; font-size: 11pt; text-align: center;">ø274</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;258&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; text-align: center;">258</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ø435&quot;}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; font-size: 11pt; text-align: center;">ø435</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;110&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; text-align: center;">110</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;115&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:11}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; text-align: center;">115</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.9&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0,&quot;2&quot;:{&quot;3&quot;:&quot;Arial&quot;,&quot;4&quot;:10}}" style="border-width: 1px 2px 2px 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: top; text-align: center;">0.9</td></tr></tbody></table>

Ürünlerin pnömatik olarak taşınmasında tek bir hat üzerinden farklı noktalara ulaştırılabilmesi için kullanılmaktadır. Ürün tüm yönlerde çok farklı noktalara taşınabilmektedir. Yapı taşıma esnasında yön değiştirmeye imkan vermektedir

MODEL	ÖLÇÜLER mm						Ağırlık kg		Ambalaj Hacmi m3
MODEL	A	B	øC	øD	E	øF	Net	Brüt	Ambalaj Hacmi m3
TMDK-5O	256	251	ø36-42 ø42-48 ø54-60	ø110	107	ø179	32	39	0.1
TMDK-70	330	310	ø63-70 ø70-76	ø130	126	ø225	45	55	0.3
TMDK-95	345	401	ø76-83 ø83-89 ø96-102	ø165	154	ø287	55	69	0.5
TMDK-125	370	492	ø102-108 ø108-114 ø121-127	ø195	194	ø370	70	83	0.7
TMDK-135	425	484	ø133-139	ø215	202	ø380	90	103	0.8
TMDK-160	581	544	ø153-159 ø162-168	ø274	258	ø435	110	115	0.9
