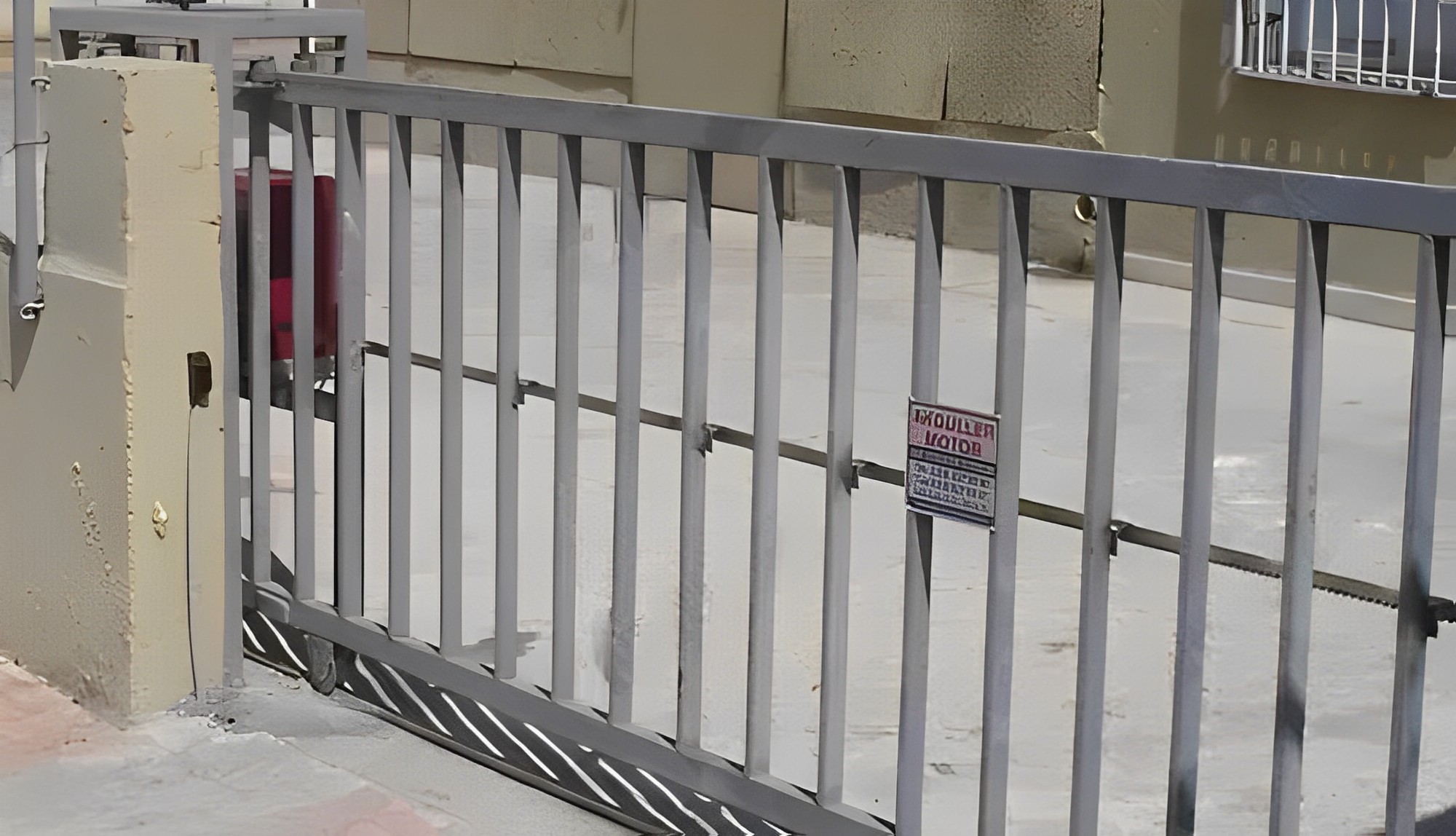

It can cover a distance of one meter in one second and its power and speed can be adjusted
They are custom manufactured for doors from 1 ton to 5 tons.
It is designed for places such as military, police, malls and factory entrances that require high-level security with the fear of
assassinations to prevent wasting time at the door.

Technical information:

Type	JET2000	JET3000	JET4000
Maximum gate weight	2000 Kg	3000 Kg	4000 Kg
Protection rating	IP54
Power supply	230 V 50/60 Hz
Motor voltage	380 V 50/60 Hz
Control unit	GA PLUS
Current draw	ЗА	4,3 A	5,9 A
Maximum power	750 W	1100 W	1500 W
Opening time	Speed Control - 12 m / min - 40 m / min
Maximum torque	77 Nm	112 Nm	154 Nm
Continuously of operation	100 %
Pulling power	3200 N	3800 N	4450 N
Limit switch type	Electromechanical
Pinion module	4 ( Z18 )
Pinion rotation speed	Average 93 rpm
Slow Down	Adjustable

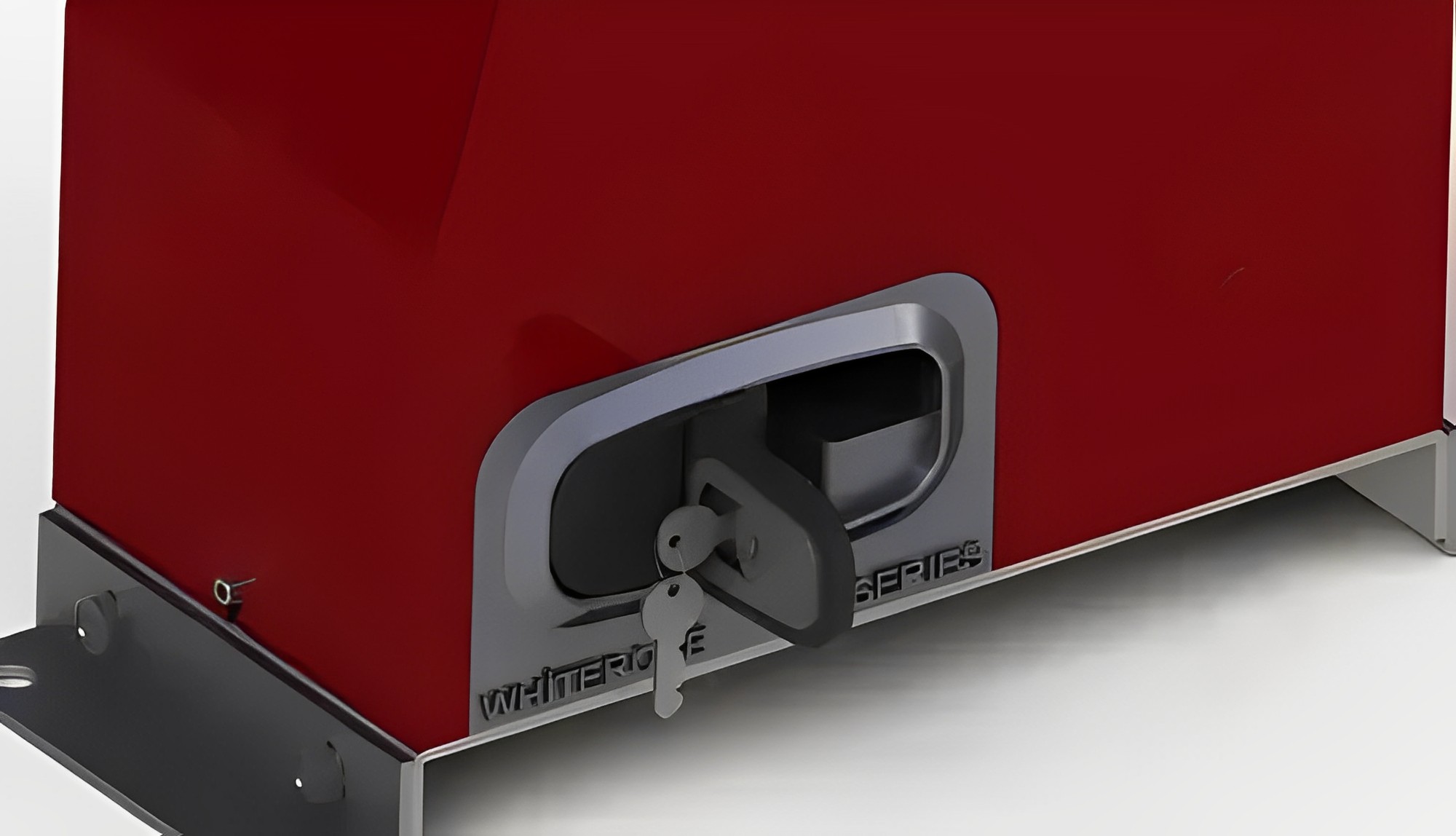

Manual use	With personal key
Working temperature	-20 ° C min + 70 ° C max
Motor weight	21,6 Kg	40 Kg	40 Kg
