Ürün bilgilerini düzenle -
Automatic glass door operator - battery op...
Önizleme
Kaydet
Kaydet ve Düzenlemeye Devam Et
Ürünü kopyala
Sil
ID
Oluşturulma tarihi
14.02.2024 10:50:09
Güncellenme tarihi
3.04.2024 03:28:03
Ürün sayfasının URL'si
https://www.alderishop.com/otomatik-kap-akuelue-sistem/
Ürün tipi
Simple product
Grouped product
Bundled product
Yayınlanmış
görünürlük
Fully visible
In search results
On product detail pages
Not visible
Ürün şablonu
Default Product Template
Standart
English
العربية
Turkce
Russian (Russia)
السلوفاكية (سلوفاكيا)
Ürün adı
Kısa açıklama
Tam açıklama
<ul><li>With their strengthened motor and control panel, suitably designed for intensive use in harsh conditions.</li><li>Thanks to the battery system, they keep operating even in power outages without causing a trouble.</li><li>They minimize indoor heat losses in hot and cold weather conditions.</li><li><span data-sheets-root="1" data-sheets-value="{"1":2,"2":"Technical information:"}" data-sheets-userformat="{"2":513,"3":{"1":0},"12":0}" style="">Technical information:<br></span><br><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="204"><col width="143"><col width="83"></colgroup><tbody><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Type"}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">Type</td><td data-sheets-value="{"1":2,"2":"RAPID 1"}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt; text-align: center;">RAPID 1</td><td data-sheets-value="{"1":2,"2":"RAPID 2"}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt; text-align: center;">RAPID 2</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Maximum wing weight"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">Maximum wing weight</td><td data-sheets-value="{"1":2,"2":"200 Kg"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt; text-align: center;">200 Kg</td><td data-sheets-value="{"1":2,"2":"200+200 Kg"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt; text-align: center;">200+200 Kg</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Power supply"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">Power supply</td><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"230 V 50/60 Hz"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">230 V 50/60 Hz</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Motor voltage"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">Motor voltage</td><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"24 V DC"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">24 V DC</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Control unit"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">Control unit</td><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"MTF 16"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">MTF 16</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Maximum power"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">Maximum power</td><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"100 W"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">100 W</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Opening Time"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">Opening Time</td><td data-sheets-value="{"1":2,"2":"40 cm/sn"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt; text-align: center;">40 cm/sn</td><td data-sheets-value="{"1":2,"2":"80 cm/sn"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt; text-align: center;">80 cm/sn</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Closing Time"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">Closing Time</td><td data-sheets-value="{"1":2,"2":"30 cm/sn"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt; text-align: center;">30 cm/sn</td><td data-sheets-value="{"1":2,"2":"60 cm/sn"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt; text-align: center;">60 cm/sn</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Continuously of operation"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">Continuously of operation</td><td rowspan="1" colspan="2" data-sheets-value="{"1":3,"3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">100 %</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Limit switch type"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">Limit switch type</td><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"Encoder"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">Encoder</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Slow Down"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">Slow Down</td><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"Available"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">Available</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Manual use"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">Manual use</td><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"Manual open/close"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">Manual open/close</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Working temperature"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">Working temperature</td><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"-20°C min +70°C max"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">-20°C min +70°C max</td></tr></tbody></table></google-sheets-html-origin><br></li></ul>

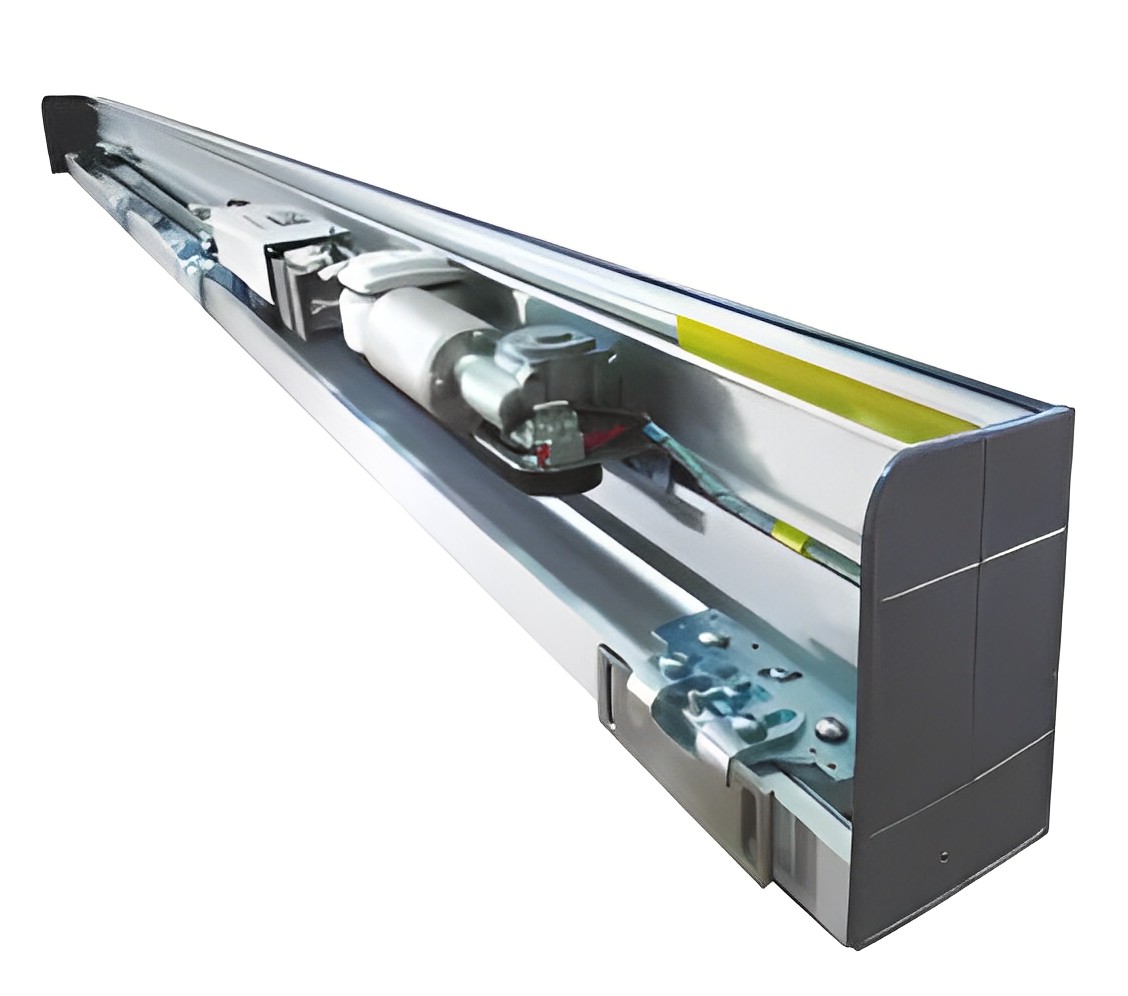

With their strengthened motor and control panel, suitably designed for intensive use in harsh conditions.
Thanks to the battery system, they keep operating even in power outages without causing a trouble.
They minimize indoor heat losses in hot and cold weather conditions.
Technical information:
Type
RAPID 1
RAPID 2
Maximum wing weight
200 Kg
200+200 Kg
Power supply
230 V 50/60 Hz
Motor voltage
24 V DC
Control unit
MTF 16
Maximum power
100 W
Opening Time
40 cm/sn
80 cm/sn
Closing Time
30 cm/sn
60 cm/sn
Continuously of operation
100 %
Limit switch type
Encoder
Slow Down
Available
Manual use
Manual open/close
Working temperature
-20°C min +70°C max
Ürün adı
Kısa açıklama
Tam açıklama
<ul><li>With their strengthened motor and control panel, suitably designed for intensive use in harsh conditions.</li><li>Thanks to the battery system, they keep operating even in power outages without causing a trouble.</li><li>They minimize indoor heat losses in hot and cold weather conditions.</li><li><span data-sheets-root="1" data-sheets-value="{"1":2,"2":"Technical information:"}" data-sheets-userformat="{"2":513,"3":{"1":0},"12":0}">Technical information:<br></span><br><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="204"><col width="143"><col width="83"></colgroup><tbody><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Type"}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">Type</td><td data-sheets-value="{"1":2,"2":"RAPID 1"}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt; text-align: center;">RAPID 1</td><td data-sheets-value="{"1":2,"2":"RAPID 2"}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt; text-align: center;">RAPID 2</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Maximum wing weight"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">Maximum wing weight</td><td data-sheets-value="{"1":2,"2":"200 Kg"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt; text-align: center;">200 Kg</td><td data-sheets-value="{"1":2,"2":"200+200 Kg"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt; text-align: center;">200+200 Kg</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Power supply"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">Power supply</td><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"230 V 50/60 Hz"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">230 V 50/60 Hz</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Motor voltage"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">Motor voltage</td><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"24 V DC"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">24 V DC</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Control unit"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">Control unit</td><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"MTF 16"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">MTF 16</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Maximum power"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">Maximum power</td><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"100 W"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">100 W</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Opening Time"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">Opening Time</td><td data-sheets-value="{"1":2,"2":"40 cm/sn"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt; text-align: center;">40 cm/sn</td><td data-sheets-value="{"1":2,"2":"80 cm/sn"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt; text-align: center;">80 cm/sn</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Closing Time"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">Closing Time</td><td data-sheets-value="{"1":2,"2":"30 cm/sn"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt; text-align: center;">30 cm/sn</td><td data-sheets-value="{"1":2,"2":"60 cm/sn"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt; text-align: center;">60 cm/sn</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Continuously of operation"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">Continuously of operation</td><td rowspan="1" colspan="2" data-sheets-value="{"1":3,"3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">100%</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Limit switch type"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">Limit switch type</td><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"Encoder"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">Encoder</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Slow Down"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">Slow Down</td><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"Available"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">Available</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Manual use"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">Manual use</td><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"Manual open/close"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">Manual open/close</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Working temperature"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">Working temperature</td><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"-20°C min +70°C max"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">-20°C min +70°C max<br></td></tr></tbody></table></google-sheets-html-origin></li></ul>
With their strengthened motor and control panel, suitably designed for intensive use in harsh conditions.
Thanks to the battery system, they keep operating even in power outages without causing a trouble.
They minimize indoor heat losses in hot and cold weather conditions.
Technical information:
Type
RAPID 1
RAPID 2
Maximum wing weight
200 Kg
200+200 Kg
Power supply
230 V 50/60 Hz
Motor voltage
24 V DC
Control unit
MTF 16
Maximum power
100 W
Opening Time
40 cm/sn
80 cm/sn
Closing Time
30 cm/sn
60 cm/sn
Continuously of operation
100%
Limit switch type
Encoder
Slow Down
Available
Manual use
Manual open/close
Working temperature
-20°C min +70°C max
Ürün adı
Kısa açıklama
Tam açıklama
<ul><li>بفضل المحرك المعزز ولوحة التحكم، تم تصميمهما بشكل مناسب للاستخدام المكثف في الظروف القاسية.</li><li>بفضل نظام البطارية، فإنها تستمر في العمل حتى في حالة انقطاع التيار الكهربائي دون التسبب في أي مشكلة.</li><li>أنها تقلل من فقدان الحرارة في الأماكن المغلقة في الظروف الجوية الحارة والباردة.</li><li>المعلومات التقنية:<br><br><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="152"><col width="143"><col width="191"></colgroup><tbody><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"RAPID 1"}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt; text-align: center;">RAPID 1</td><td data-sheets-value="{"1":2,"2":"RAPID 2"}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt; text-align: center;">RAPID 2</td><td data-sheets-value="{"1":2,"2":"النوع"}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">النوع</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"200 كجم"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt; text-align: center;">200 كجم</td><td data-sheets-value="{"1":2,"2":"200+200 كجم"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt; text-align: center;">200+200 كجم</td><td data-sheets-value="{"1":2,"2":"الحد الأقصى لوزن الجناح"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">الحد الأقصى لوزن الجناح</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"230 فولت 50/60 هرتز"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt; text-align: center;">230 فولت 50/60 هرتز</td><td data-sheets-value="{"1":2,"2":"مزود الطاقة"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">مزود الطاقة</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"24 فولت تيار مستمر"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt; text-align: center;">24 فولت تيار مستمر</td><td data-sheets-value="{"1":2,"2":"جهد المحرك"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">جهد المحرك</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"MTF 16"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">MTF 16</td><td data-sheets-value="{"1":2,"2":"وحدة التحكم"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">وحدة التحكم</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"100 واط"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt; text-align: center;">100 واط</td><td data-sheets-value="{"1":2,"2":"الطاقة القصوى"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">الطاقة القصوى</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"40 سم/الثانية"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt; text-align: center;">40 سم/الثانية</td><td data-sheets-value="{"1":2,"2":"80 سم/الثانية"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt; text-align: center;">80 سم/الثانية</td><td data-sheets-value="{"1":2,"2":"وقت مفتوح"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">وقت مفتوح</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"30 سم/الثانية"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt; text-align: center;">30 سم/الثانية</td><td data-sheets-value="{"1":2,"2":"60 سم/الثانية"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt; text-align: center;">60 سم/الثانية</td><td data-sheets-value="{"1":2,"2":"وقت الإغلاق"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">وقت الإغلاق</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{"1":3,"3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">100%</td><td data-sheets-value="{"1":2,"2":"استمرارية التشغيل"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">استمرارية التشغيل</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"التشفير"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">التشفير</td><td data-sheets-value="{"1":2,"2":"الحد من نوع التبديل"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">الحد من نوع التبديل</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"متاح"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">متاح</td><td data-sheets-value="{"1":2,"2":"ابطئ"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">ابطئ</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"تشغيل/إيقاف يدوي"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">تشغيل/إيقاف يدوي</td><td data-sheets-value="{"1":2,"2":"الاستخدام اليدوي"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">الاستخدام اليدوي</td></tr><tr style="height: 21px;"><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"-20 درجة مئوية دقيقة +70 درجة مئوية كحد أقصى"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">-20 درجة مئوية دقيقة +70 درجة مئوية كحد أقصى</td><td data-sheets-value="{"1":2,"2":"درجة حرارة العمل"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">درجة حرارة العمل</td></tr></tbody></table></google-sheets-html-origin></li></ul>
بفضل المحرك المعزز ولوحة التحكم، تم تصميمهما بشكل مناسب للاستخدام المكثف في الظروف القاسية.
بفضل نظام البطارية، فإنها تستمر في العمل حتى في حالة انقطاع التيار الكهربائي دون التسبب في أي مشكلة.
أنها تقلل من فقدان الحرارة في الأماكن المغلقة في الظروف الجوية الحارة والباردة.
المعلومات التقنية:
RAPID 1
RAPID 2
النوع
200 كجم
200+200 كجم
الحد الأقصى لوزن الجناح
230 فولت 50/60 هرتز
مزود الطاقة
24 فولت تيار مستمر
جهد المحرك
MTF 16
وحدة التحكم
100 واط
الطاقة القصوى
40 سم/الثانية
80 سم/الثانية
وقت مفتوح
30 سم/الثانية
60 سم/الثانية
وقت الإغلاق
100%
استمرارية التشغيل
التشفير
الحد من نوع التبديل
متاح
ابطئ
تشغيل/إيقاف يدوي
الاستخدام اليدوي
-20 درجة مئوية دقيقة +70 درجة مئوية كحد أقصى
درجة حرارة العمل
Ürün adı
Kısa açıklama
Tam açıklama
<ul><li>Güçlendirilmiş motoru ve kontrol paneli ile zorlu koşullarda yoğun kullanıma uygun şekilde tasarlanmıştır.</li><li>Batarya sistemi sayesinde elektrik kesintilerinde bile sorun yaratmadan çalışmaya devam ederler.</li><li>Sıcak ve soğuk hava koşullarında iç mekan ısı kayıplarını en aza indirir.</li><li><span data-sheets-root="1" data-sheets-value="{"1":2,"2":"Teknik Özellikler"}" data-sheets-userformat="{"2":513,"3":{"1":0},"12":0}" style="">Teknik Özellikler:<br></span><br><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; font-size: 10pt; font-family: Arial; width: 0px; border: none;"><colgroup><col width="203"><col width="143"><col width="94"></colgroup><tbody><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Tip"}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">Tip</td><td data-sheets-value="{"1":2,"2":"RAPID 1"}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt; text-align: center;">RAPID 1</td><td data-sheets-value="{"1":2,"2":"RAPID 2"}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt; text-align: center;">RAPID 2</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Maksimum kanat ağırlığı"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">Maksimum kanat ağırlığı</td><td data-sheets-value="{"1":2,"2":"200 Kg"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt; text-align: center;">200 Kg</td><td data-sheets-value="{"1":2,"2":"200+200 Kg"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt; text-align: center;">200+200 Kg</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Güç kaynağı"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">Güç kaynağı</td><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"230 V 50/60 Hz"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">230 V 50/60 Hz</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Motor voltajı"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">Motor voltajı</td><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"24 V DC"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">24 V DC</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Kontrol ünitesi"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">Kontrol ünitesi</td><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"MTF 16"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">MTF 16</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Maksimum güç"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">Maksimum güç</td><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"100 W"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">100 W</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Açılış zamanı"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">Açılış zamanı</td><td data-sheets-value="{"1":2,"2":"40 cm/sn"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt; text-align: center;">40 cm/sn</td><td data-sheets-value="{"1":2,"2":"80 cm/sn"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt; text-align: center;">80 cm/sn</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Kapanış saati"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">Kapanış saati</td><td data-sheets-value="{"1":2,"2":"30 cm/sn"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt; text-align: center;">30 cm/sn</td><td data-sheets-value="{"1":2,"2":"60 cm/sn"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt; text-align: center;">60 cm/sn</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Sürekli çalışma"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">Sürekli çalışma</td><td rowspan="1" colspan="2" data-sheets-value="{"1":3,"3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">100%</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Limit anahtarı tipi"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">Limit anahtarı tipi</td><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"Kodlayıcı"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">Kodlayıcı</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Yavaşla"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">Yavaşla</td><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"Mevcut"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">Mevcut</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Manuel kullanım"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">Manuel kullanım</td><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"Manuel açma/kapama"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; text-align: center;">Manuel açma/kapama</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"Çalışma sıcaklığı"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt;">Çalışma sıcaklığı</td><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"-20°C minimum +70°C maksimum"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; font-family: Calibri; font-size: 11pt; text-align: center;">-20°C minimum +70°C maksimum</td></tr></tbody></table></google-sheets-html-origin></li></ul>
Güçlendirilmiş motoru ve kontrol paneli ile zorlu koşullarda yoğun kullanıma uygun şekilde tasarlanmıştır.
Batarya sistemi sayesinde elektrik kesintilerinde bile sorun yaratmadan çalışmaya devam ederler.
Sıcak ve soğuk hava koşullarında iç mekan ısı kayıplarını en aza indirir.
Teknik Özellikler:
Tip
RAPID 1
RAPID 2
Maksimum kanat ağırlığı
200 Kg
200+200 Kg
Güç kaynağı
230 V 50/60 Hz
Motor voltajı
24 V DC
Kontrol ünitesi
MTF 16
Maksimum güç
100 W
Açılış zamanı
40 cm/sn
80 cm/sn
Kapanış saati
30 cm/sn
60 cm/sn
Sürekli çalışma
100%
Limit anahtarı tipi
Kodlayıcı
Yavaşla
Mevcut
Manuel kullanım
Manuel açma/kapama
Çalışma sıcaklığı
-20°C minimum +70°C maksimum
