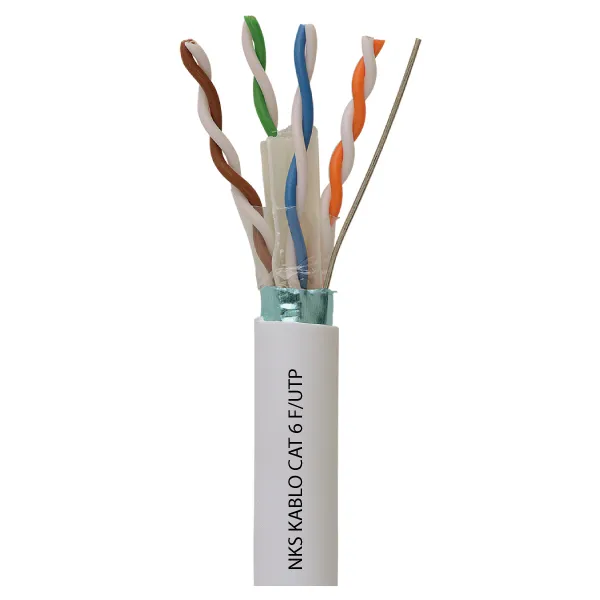

تعديل تفاصيل منتج - CAT 6 F UTP 4x2x23 AWG Cable

نسخ المنتج

الرقم التعريفى

تم الإنشاء فى

16‏‏/3‏‏/2023 5:01:06 م

تم التحديث فى

13‏‏/6‏‏/2023 10:32:37 ص

الرابط الخاص بصفحة المنتج

https://www.alderishop.com/cat-6-f-utp-4x2x23-awg-2/

نوع المنتج

تم النشر

الرؤية

إسم المنتج

وصف قصير

وصف كامل

<p>For indoor use as signal and data communication cables.</p><div align="center">

</div><div align="center"><br><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody></tbody></table></div><div align="center"><div align="center">

</div><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody></tbody></table><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium; text-align: start;"><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" style="table-layout: fixed; font-size: 11pt; font-family: Calibri; width: 0px; border: none;"><colgroup><col width="107"><col width="238"></colgroup><tbody><tr style="height: 56px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Cable structure&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; text-align: center;">Cable structure</td></tr><tr style="height: 46px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Conductor&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Conductor</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Electrolytic mono annealed copper (23 AWG) – Ø 0,57 mm&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Electrolytic mono annealed copper (23 AWG) – Ø 0,57 mm</td></tr><tr style="height: 82px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Insulation&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Insulation</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Solid PE (EN 50290-2-23, VDE 0207-2YI1) Core colors will be according to IEC 189&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Solid PE (EN 50290-2-23, VDE 0207-2YI1) Core colors will be according to IEC 189</td></tr><tr style="height: 63px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Vein Structure&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Vein Structure</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Veins are twisted together in pairs and pairs are twisted together with separator&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Veins are twisted together in pairs and pairs are twisted together with separator</td></tr><tr style="height: 48px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Screen&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Screen</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Pes-Tape + Tinned Copper (Ground Wire) + Al-Pet Foil&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Pes-Tape + Tinned Copper (Ground Wire) + Al-Pet Foil</td></tr><tr style="height: 48px;"><td rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Sheath&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;"><div style="max-height: 139px;">Sheath</div></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;PVC (EN 50290-2-22) RAL 7001, Grey and RAL 2004 Orange&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">PVC (EN 50290-2-22) RAL 7001, Grey and RAL 2004 Orange</td></tr><tr style="height: 43px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;HFFR (EN 50290-2-27, VDE 0207), RAL 7001, Grey&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">HFFR (EN 50290-2-27, VDE 0207), RAL 7001, Grey</td></tr><tr style="height: 48px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;PE (EN 50290-2-24, VDE 0207), RAL 9005, Black&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">PE (EN 50290-2-24, VDE 0207), RAL 9005, Black</td></tr></tbody></table></google-sheets-html-origin></div><div align="center"><br></div><div align="center"><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium; text-align: start;"><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" style="table-layout: fixed; font-size: 11pt; font-family: Calibri; width: 0px; border: none;"><colgroup><col width="188"><col width="274"></colgroup><tbody><tr style="height: 56px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Technicial Specifications&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">Technicial Specifications</td></tr><tr style="height: 46px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;DC Resistor&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">DC Resistor</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(max) 95Ω/km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">(max) 95Ω/km</td></tr><tr style="height: 82px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Insulation Resistance&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Insulation Resistance</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(min) 2 GΩ x km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">(min) 2 GΩ x km</td></tr><tr style="height: 63px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Capacity&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Capacity</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(nom) 48 pF /m&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">(nom) 48 pF /m</td></tr><tr style="height: 48px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Capacity Imbalance&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Capacity Imbalance</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(max) 1500 pf/km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">(max) 1500 pf/km</td></tr><tr style="height: 48px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Characteristic Impedance&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Characteristic Impedance</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(100MHz) 100±5Ω&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">(100MHz) 100±5Ω</td></tr><tr style="height: 43px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Test Voltage&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Test Voltage</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1000V&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">1000V</td></tr><tr style="height: 48px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Operating voltage&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Operating voltage</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(max) 125V&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">(max) 125V</td></tr></tbody></table></google-sheets-html-origin></div>

<p>
</p>

For indoor use as signal and data communication cables.

Cable structure
Conductor	Electrolytic mono annealed copper (23 AWG) – Ø 0,57 mm
Insulation	Solid PE (EN 50290-2-23, VDE 0207-2YI1) Core colors will be according to IEC 189
Vein Structure	Veins are twisted together in pairs and pairs are twisted together with separator
Screen	Pes-Tape + Tinned Copper (Ground Wire) + Al-Pet Foil
Sheath	PVC (EN 50290-2-22) RAL 7001, Grey and RAL 2004 Orange
	HFFR (EN 50290-2-27, VDE 0207), RAL 7001, Grey
	PE (EN 50290-2-24, VDE 0207), RAL 9005, Black

Technicial Specifications
DC Resistor	(max) 95Ω/km
Insulation Resistance	(min) 2 GΩ x km
Capacity	(nom) 48 pF /m
Capacity Imbalance	(max) 1500 pf/km
Characteristic Impedance	(100MHz) 100±5Ω
Test Voltage	1000V
Operating voltage	(max) 125V

إسم المنتج

وصف قصير

وصف كامل

<p>For indoor use as signal and data communication cables.</p><div align="center"></div><div align="center"><br><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody></tbody></table></div><div align="center"><div align="center"></div><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody></tbody></table><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium; text-align: start;"><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" style="table-layout: fixed; font-size: 11pt; font-family: Calibri; width: 0px; border: none;"><colgroup><col width="107"><col width="238"></colgroup><tbody><tr style="height: 56px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Cable structure&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; text-align: center;">Cable structure</td></tr><tr style="height: 46px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Conductor&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Conductor</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Electrolytic mono annealed copper (23 AWG) – Ø 0,57 mm&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Electrolytic mono annealed copper (23 AWG) – Ø 0,57 mm</td></tr><tr style="height: 82px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Insulation&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Insulation</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Solid PE (EN 50290-2-23, VDE 0207-2YI1) Core colors will be according to IEC 189&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Solid PE (EN 50290-2-23, VDE 0207-2YI1) Core colors will be according to IEC 189</td></tr><tr style="height: 63px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Vein Structure&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Vein Structure</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Veins are twisted together in pairs and pairs are twisted together with separator&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Veins are twisted together in pairs and pairs are twisted together with separator</td></tr><tr style="height: 48px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Screen&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Screen</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Pes-Tape + Tinned Copper (Ground Wire) + Al-Pet Foil&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Pes-Tape + Tinned Copper (Ground Wire) + Al-Pet Foil</td></tr><tr style="height: 48px;"><td rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Sheath&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;"><div style="max-height: 139px;">Sheath</div></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;PVC (EN 50290-2-22) RAL 7001, Grey and RAL 2004 Orange&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">PVC (EN 50290-2-22) RAL 7001, Grey and RAL 2004 Orange</td></tr><tr style="height: 43px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;HFFR (EN 50290-2-27, VDE 0207), RAL 7001, Grey&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">HFFR (EN 50290-2-27, VDE 0207), RAL 7001, Grey</td></tr><tr style="height: 48px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;PE (EN 50290-2-24, VDE 0207), RAL 9005, Black&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">PE (EN 50290-2-24, VDE 0207), RAL 9005, Black</td></tr></tbody></table></google-sheets-html-origin></div><div align="center"><br></div><div align="center"><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium; text-align: start;"><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" style="table-layout: fixed; font-size: 11pt; font-family: Calibri; width: 0px; border: none;"><colgroup><col width="188"><col width="274"></colgroup><tbody><tr style="height: 56px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Technicial Specifications&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">Technicial Specifications</td></tr><tr style="height: 46px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;DC Resistor&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">DC Resistor</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(max) 95Ω/km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">(max) 95Ω/km</td></tr><tr style="height: 82px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Insulation Resistance&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Insulation Resistance</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(min) 2 GΩ x km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">(min) 2 GΩ x km</td></tr><tr style="height: 63px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Capacity&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Capacity</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(nom) 48 pF /m&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">(nom) 48 pF /m</td></tr><tr style="height: 48px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Capacity Imbalance&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Capacity Imbalance</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(max) 1500 pf/km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">(max) 1500 pf/km</td></tr><tr style="height: 48px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Characteristic Impedance&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Characteristic Impedance</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(100MHz) 100±5Ω&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">(100MHz) 100±5Ω</td></tr><tr style="height: 43px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Test Voltage&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Test Voltage</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1000V&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">1000V</td></tr><tr style="height: 48px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Operating voltage&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Operating voltage</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(max) 125V&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">(max) 125V</td></tr></tbody></table></google-sheets-html-origin></div>

For indoor use as signal and data communication cables.

Cable structure
Conductor	Electrolytic mono annealed copper (23 AWG) – Ø 0,57 mm
Insulation	Solid PE (EN 50290-2-23, VDE 0207-2YI1) Core colors will be according to IEC 189
Vein Structure	Veins are twisted together in pairs and pairs are twisted together with separator
Screen	Pes-Tape + Tinned Copper (Ground Wire) + Al-Pet Foil
Sheath	PVC (EN 50290-2-22) RAL 7001, Grey and RAL 2004 Orange
	HFFR (EN 50290-2-27, VDE 0207), RAL 7001, Grey
	PE (EN 50290-2-24, VDE 0207), RAL 9005, Black

Technicial Specifications
DC Resistor	(max) 95Ω/km
Insulation Resistance	(min) 2 GΩ x km
Capacity	(nom) 48 pF /m
Capacity Imbalance	(max) 1500 pf/km
Characteristic Impedance	(100MHz) 100±5Ω
Test Voltage	1000V
Operating voltage	(max) 125V

إسم المنتج

وصف قصير

وصف كامل

<p>يتم استخدامها للإشارة واتصالات البيانات في التركيبات الداخلية.<br><br></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="rtl" border="1" style="table-layout: fixed; font-size: 11pt; font-family: Calibri; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="90"><col width="206"></colgroup><tbody><tr style="height: 95px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;موصل&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">موصل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;النحاس الملدن كهربائيا أحادي (23 AWG) - Ø 0.57 مم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">النحاس الملدن كهربائيا أحادي (23 AWG) - Ø 0.57 مم</td></tr><tr style="height: 131px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;عازلة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">عازلة</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;مادة PE الصلبة (TR 50290-2-23 VDE 0207-2YI1) تتوافق الألوان الأساسية مع IEC 189&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">مادة PE الصلبة (TR 50290-2-23 VDE 0207-2YI1) تتوافق الألوان الأساسية مع IEC 189</td></tr><tr style="height: 79px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;خلق الجوهر&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">خلق الجوهر</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;يتم لف النوى معًا في أزواج ويتم لف الأزواج معًا باستخدام المباعد&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">يتم لف النوى معًا في أزواج ويتم لف الأزواج معًا باستخدام المباعد</td></tr><tr style="height: 81px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;شاشة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">شاشة</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;شريط بيس + نحاس معلب (سلك أرضي) + رقائق Al-Pet&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">شريط بيس + نحاس معلب (سلك أرضي) + رقائق Al-Pet</td></tr><tr style="height: 89px;"><td dir="rtl" rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;غطاء&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;"><span><div style="max-height: 226px;">غطاء</div></span></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;PVC (EN 50290-2-22) RAL 7001 ، رمادي و RAL 2004 برتقالي &quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">PVC (EN 50290-2-22) RAL 7001 ، رمادي و RAL 2004 برتقالي</td></tr><tr style="height: 71px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;HFFR (EN 50290-2-27 ، VDE 0207) ، RAL 7001 ، رمادي &quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">HFFR (EN 50290-2-27 ، VDE 0207) ، RAL 7001 ، رمادي</td></tr><tr style="height: 66px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;PE (EN 50290-2-24 ، VDE 0207) ، RAL 9005 ، أسود&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">PE (EN 50290-2-24 ، VDE 0207) ، RAL 9005 ، أسود</td></tr></tbody></table><p><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin><br><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="rtl" border="1" style="table-layout: fixed; font-size: 11pt; font-family: Calibri; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="130"><col width="233"></colgroup><tbody><tr style="height: 76px;"><td dir="rtl" rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;المواصفات الفنية&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">المواصفات الفنية</td></tr><tr style="height: 95px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;المقاوم DC&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">المقاوم DC</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(حد أقصى) 95 درجة / كم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">(حد أقصى) 95 درجة / كم</td></tr><tr style="height: 131px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;مقاومة العزل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">مقاومة العزل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(دقيقة) 2 جيجا × كم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">(دقيقة) 2 جيجا × كم</td></tr><tr style="height: 79px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;سعة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">سعة</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(اسم) 48 بيكو فاراد / م&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">(اسم) 48 بيكو فاراد / م</td></tr><tr style="height: 81px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;عدم توازن القدرات&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">عدم توازن القدرات</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(حد أقصى) 1500 pf / كم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">(حد أقصى) 1500 pf / كم</td></tr><tr style="height: 89px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;مقاومة مميزة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">مقاومة مميزة</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(100 ميجا هرتز) 100 ± 5 أوم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">(100 ميجا هرتز) 100 ± 5 أوم</td></tr><tr style="height: 71px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;اختبار الجهد&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">اختبار الجهد</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1000 فولت&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">1000 فولت</td></tr><tr style="height: 66px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;جهد التشغيل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">جهد التشغيل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(بحد أقصى) 125 فول&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">(بحد أقصى) 125 فول</td></tr></tbody></table><div align="center">

</div><div align="center"><br><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="297" style="width: 223pt;"><tbody></tbody></table></div><div align="center"><div align="center">



</div>

</div><p>
</p>

يتم استخدامها للإشارة واتصالات البيانات في التركيبات الداخلية.

موصل	النحاس الملدن كهربائيا أحادي (23 AWG) - Ø 0.57 مم
عازلة	مادة PE الصلبة (TR 50290-2-23 VDE 0207-2YI1) تتوافق الألوان الأساسية مع IEC 189
خلق الجوهر	يتم لف النوى معًا في أزواج ويتم لف الأزواج معًا باستخدام المباعد
شاشة	شريط بيس + نحاس معلب (سلك أرضي) + رقائق Al-Pet
غطاء	PVC (EN 50290-2-22) RAL 7001 ، رمادي و RAL 2004 برتقالي
	HFFR (EN 50290-2-27 ، VDE 0207) ، RAL 7001 ، رمادي
	PE (EN 50290-2-24 ، VDE 0207) ، RAL 9005 ، أسود

المواصفات الفنية
المقاوم DC	(حد أقصى) 95 درجة / كم
مقاومة العزل	(دقيقة) 2 جيجا × كم
سعة	(اسم) 48 بيكو فاراد / م
عدم توازن القدرات	(حد أقصى) 1500 pf / كم
مقاومة مميزة	(100 ميجا هرتز) 100 ± 5 أوم
اختبار الجهد	1000 فولت
جهد التشغيل	(بحد أقصى) 125 فول

إسم المنتج

وصف قصير

وصف كامل

<p>Bina içi tesisatlarda sinyal ve data iletişiminde kullanılırlar.</p><div align="center">

</div><div align="center"><br><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="329" style="width: 247pt;"><tbody></tbody></table></div><div align="center"><div align="center">

</div><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="329" style="width: 247pt;"><tbody></tbody></table><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium; text-align: start;"><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" style="table-layout: fixed; font-size: 11pt; font-family: Calibri; width: 0px; border: none;"><colgroup><col width="106"><col width="222"></colgroup><tbody><tr style="height: 56px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Kablo yapısı&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; text-align: center;">Kablo yapısı</td></tr><tr style="height: 46px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;İletken&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">İletken</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Elektrolitik mono tavlı bakır ( 23 AWG ) - Ø 0,57 mm&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Elektrolitik mono tavlı bakır ( 23 AWG ) - Ø 0,57 mm</td></tr><tr style="height: 82px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;izolasyon&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">izolasyon</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Katı PE (TR 50290-2-23 VDE 0207-2YI1) Çekirdek renkleri, IEC 189 uyarınca olacak&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Katı PE (TR 50290-2-23 VDE 0207-2YI1) Çekirdek renkleri, IEC 189 uyarınca olacak</td></tr><tr style="height: 63px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Öz Oluşturma&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Öz Oluşturma</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Damarlar çiftler halinde birlikte bükülür ve çiftler ayırıcı ile birlikte bükülür&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Damarlar çiftler halinde birlikte bükülür ve çiftler ayırıcı ile birlikte bükülür</td></tr><tr style="height: 48px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Ekran&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Ekran</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Pes-Bant + Kalaylı Bakır (Toprak Teli) + Al-Pet Folyo&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Pes-Bant + Kalaylı Bakır (Toprak Teli) + Al-Pet Folyo</td></tr><tr style="height: 48px;"><td rowspan="3" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Kılıf&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;"><div style="max-height: 139px;">Kılıf</div></td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;PVC (EN 50290-2-22) RAL 7001, Gri and RAL 2004 Turuncu &quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">PVC (EN 50290-2-22) RAL 7001, Gri and RAL 2004 Turuncu</td></tr><tr style="height: 43px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;HFFR (EN 50290-2-27, VDE 0207), RAL 7001, Gri &quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">HFFR (EN 50290-2-27, VDE 0207), RAL 7001, Gri</td></tr><tr style="height: 48px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;PE (EN 50290-2-24, VDE 0207), RAL 9005, Siyah&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">PE (EN 50290-2-24, VDE 0207), RAL 9005, Siyah</td></tr></tbody></table></google-sheets-html-origin></div><div align="center"><br></div><div align="center"><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium; text-align: start;"><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" style="table-layout: fixed; font-size: 11pt; font-family: Calibri; width: 0px; border: none;"><colgroup><col width="125"><col width="283"></colgroup><tbody><tr style="height: 56px;"><td rowspan="1" colspan="2" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Teknik Özellikler&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 0px 3px; vertical-align: middle; text-align: center;">Teknik Özellikler</td></tr><tr style="height: 46px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;DC&nbsp; Direnc&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">DC&nbsp; Direnc</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(max) 95 Ω/km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">(max) 95 Ω/km</td></tr><tr style="height: 82px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;İzalasyon Direnci&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">İzalasyon Direnci</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(min) 2 GΩ x km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">(min) 2 GΩ x km</td></tr><tr style="height: 63px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Kapasite&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Kapasite</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(nom) 48 pF /m&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">(nom) 48 pF /m</td></tr><tr style="height: 48px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Kapasite Dengesizliği&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Kapasite Dengesizliği</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(max) 1500 pf/km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">(max) 1500 pf/km</td></tr><tr style="height: 48px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Karakteristik Empedans&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Karakteristik Empedans</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(100MHz) 100±5 Ω&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">(100MHz) 100±5 Ω</td></tr><tr style="height: 43px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Test Gerilimi&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Test Gerilimi</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1000 V&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">1000 V</td></tr><tr style="height: 48px;"><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Çalışma Gerilimi&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Çalışma Gerilimi</td><td data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;(max) 125 V&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; font-family: Roboto; font-size: 12pt; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">(max) 125 V</td></tr></tbody></table></google-sheets-html-origin><div align="center">



</div></div><p>
</p>

Bina içi tesisatlarda sinyal ve data iletişiminde kullanılırlar.

Kablo yapısı
İletken	Elektrolitik mono tavlı bakır ( 23 AWG ) - Ø 0,57 mm
izolasyon	Katı PE (TR 50290-2-23 VDE 0207-2YI1) Çekirdek renkleri, IEC 189 uyarınca olacak
Öz Oluşturma	Damarlar çiftler halinde birlikte bükülür ve çiftler ayırıcı ile birlikte bükülür
Ekran	Pes-Bant + Kalaylı Bakır (Toprak Teli) + Al-Pet Folyo
Kılıf	PVC (EN 50290-2-22) RAL 7001, Gri and RAL 2004 Turuncu
	HFFR (EN 50290-2-27, VDE 0207), RAL 7001, Gri
	PE (EN 50290-2-24, VDE 0207), RAL 9005, Siyah

Teknik Özellikler
DC Direnc	(max) 95 Ω/km
İzalasyon Direnci	(min) 2 GΩ x km
Kapasite	(nom) 48 pF /m
Kapasite Dengesizliği	(max) 1500 pf/km
Karakteristik Empedans	(100MHz) 100±5 Ω
Test Gerilimi	1000 V
Çalışma Gerilimi	(max) 125 V
