For use in connecting control equipment to mechanical assembly lines, conveyor belts, transportation systems and manufacturing lines.The screen, comprising of thin,tinned copper wires, is designed to transmit control signals without any interference or noise.These cables are flame retardant and are ideal for use where toxic gas emission must be avoided.

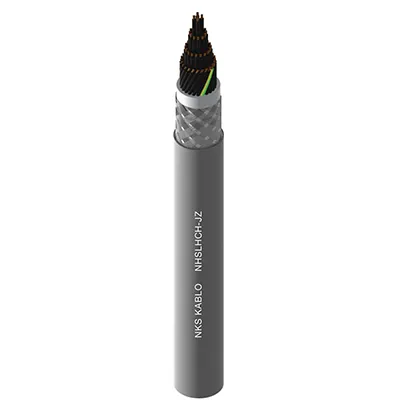

Cable structure
Conductor
Twisted copper wires; IEC 60228 SINIF 5, TS DIN 60228 CLASS 5
Insulation
HFFR, HI2, VDE 0207-23
Insulation Colors
According to TS / DIN EN 50334, white numerical code on black core, along with yellow and green core.No yellow or green core for OZ.
Stranding
Cores are twisted in layers at regular intervals.
Internal Sheath
HFFR, HM2, RAL 7001 Grey
Screen
Thin, tinned copper wires
Sheath
HFFR, HM2, VDE 0207-24
Sheath Color
RAL 7001 Gray
Technicial Specifications
Conductor Resistance
0.50 mm² = 39 Ω.Km
0.75 mm² = 26 Ω.Km
1.00 mm² = 19.5 Ω.Km
1.50 mm² = 13.3 Ω.Km
2.50 mm² = 7.98 Ω. Km
4.00 mm² = 4.95 Ω.Km
6.00 mm² = 3.30 Ω.Km
10.00 mm² = 1.91 Ω.Km
16.00 mm² = 1.21 Ω.Km
Insulation Resistance
min. 20 MΩ.Km
Operating temperature
Fixed Fixed Laying -40 ° C ~ + 70 ° C
Movable Flexible -5 ° C ~ + 50 ° C
min. Bending Radius
Fixed Fixed Laying 8 x D
Movable Flexible 15 x D
Operating voltage
300 / 500 V
Test Voltage
2000V
Flame Retardant Test
IEC 60332-1-2 & TS/DIN EN 50266-2-4
Smoke Density
IEC 61034-2 & TS/DIN EN 50268-2
Corrosive Gas Test
IEC 60754-1/2 & TS/DIN EN 50267-2-3
Kablo yapısı
İletken
Bükülü bakır tellerden, IEC 60228 SINIF 5, TS DIN 60228 SINIF 5
İzolasyon
YI2 PVC
Yalıtkan Renkleri
TS / DIN EN 50334 e göre Sarı/Yeşil damarla beraber sşyah damar üzerine beyaz numara kodlu, OZ için Sarı/Yeşil damar olmaksızın
Büküm
Damarlar sabit adımlarla katlar halinde bükülür.
Kılıf Rengi
RAL 7001
Teknik Özellikler
İletken Direnci
0,50 mm² = 39 Ω.Km
0,75 mm² = 26 Ω.Km
1,00 mm² = 19,5 Ω.Km
1,50 mm² = 13,3 Ω.Km
2,50 mm² = 7,98 Ω.Km
4,00 mm² = 4,95 Ω.Km
6,00 mm² = 3,30 Ω.Km
10,00 mm² = 1,91 Ω.Km
16,00 mm² = 1,21 Ω.Km
Yalıtım Direnci
Min. 20 MΩ. Km
Test Gerilimi
2000 V
Min. Bükülme Yarıçapı
Sabit Fixed Laying 4 x D
Hareketli Flexible 12,5 x D
Çalışma Gerilimi
Çalışma Sıcaklığı
Sabit Fixed Laying -40 ° C ~ + 70 ° C
Hareketli Flexible -5 ° C ~ + 70 ° C
