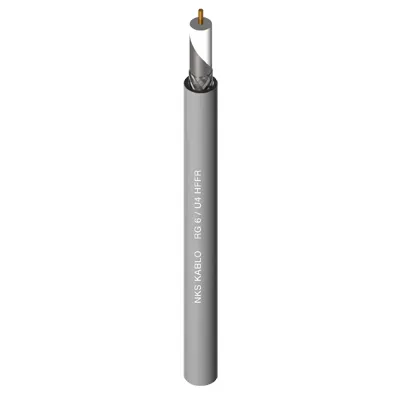

Edit product details - RG 6 U-4 HFFR Cable

Copy product

Created on

3/16/2023 5:01:06 PM

Updated on

6/13/2023 10:42:16 AM

URL of the product page

https://www.alderishop.com/rg-6-u-4-hffr-cable-4/

Product type

Published

Visibility

Product name

Short description

Full description

For indoor use as a subscriber distribution cable in TV and satellite antenna systems where lower low-tension currents are of importance.<div align="center">

<table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;">
 <tbody><tr style="mso-yfti-irow:0;mso-yfti-firstrow:yes;height:31.5pt">
 <td width="347" nowrap="" colspan="2" style="width: 260pt; border-width: 1pt; border-style: solid; border-color: windowtext; padding: 0cm 5.4pt; height: 31.5pt;">
 Cable structure<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:1;height:15.75pt">
 <td width="126" style="width: 94.65pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Conductor<o:p></o:p>
 </td>
 <td width="220" style="width: 165.35pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Cu - Ø 1,00 mm<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:2;height:28.5pt">
 <td width="126" style="width: 94.65pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 28.5pt;">
 Insulation<o:p></o:p>
 </td>
 <td width="220" style="width: 165.35pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 28.5pt;">
 FPE Ø 4,70 mm<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:3;height:31.5pt">
 <td width="126" style="width: 94.65pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 External Conductor<o:p></o:p>
 </td>
 <td width="220" style="width: 165.35pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Al- PES<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:4;height:15.75pt">
 <td width="126" style="width: 94.65pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Screen<o:p></o:p>
 </td>
 <td width="220" style="width: 165.35pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Thin plated Copper
 Wire<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:5;height:31.5pt">
 <td width="126" style="width: 94.65pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Sheath<o:p></o:p>
 </td>
 <td width="220" style="width: 165.35pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 HFFR -&nbsp;White,&nbsp;Black,
 Gray<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:6;height:30.0pt">
 <td width="126" style="width: 94.65pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 Cable Diameter&nbsp;<o:p></o:p>
 </td>
 <td width="220" style="width: 165.35pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 Ø 7,00 mm<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:7;height:31.5pt">
 <td width="126" style="width: 94.65pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Cable&nbsp;Weight42,5<o:p></o:p>
 </td>
 <td width="220" style="width: 165.35pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 51 Kg / Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:8;height:36.75pt">
 <td width="126" style="width: 94.65pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 36.75pt;">
 Standard Length<o:p></o:p>
 </td>
 <td width="220" style="width: 165.35pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 36.75pt;">
 100 / 500 /1000 m<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:9;mso-yfti-lastrow:yes;height:21.75pt">
 <td width="126" style="width: 94.65pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 21.75pt;">
 Code No<o:p></o:p>
 </td>
 <td width="220" style="width: 165.35pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 21.75pt;">
 101 14442 1024<o:p></o:p>
 </td>
 </tr>
</tbody></table></div><div align="center"> </div><div align="center"> <table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody></tbody></table></div><div align="center"><div align="center">

</div><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody></tbody></table><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="464" style="width: 348pt;">
 <tbody><tr style="mso-yfti-irow:0;mso-yfti-firstrow:yes;height:30.0pt">
 <td width="464" nowrap="" colspan="2" style="width: 348pt; border-width: 1pt; border-style: solid; border-color: windowtext; padding: 0cm 5.4pt; height: 30pt;">
 <span style="mso-ascii-font-family:Calibri;mso-fareast-font-family:
 &quot;Times New Roman&quot;;mso-hansi-font-family:Calibri;mso-bidi-font-family:Calibri;
 color:black;mso-font-kerning:0pt;mso-ligatures:none">Technicial
 Specifications<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:1;height:15.75pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Capacity<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 55 ± 3 pF/m<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:2;height:28.5pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 28.5pt;">
 Insulator Resistance<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 28.5pt;">
 500 M.Ω.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:3;height:31.5pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Characteristic
 Impedance<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 75 ± 3Ω<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:4;height:15.75pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Propagation Velocity<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 84% v/c<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:5;height:31.5pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Operating voltage<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 1.3 kV<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:6;height:30.0pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 Operating temperature<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 -40°C ~ +70°C<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:7;height:31.5pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 min.&nbsp;Bending
 Radius<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 10 x D<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:8;height:36.75pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 36.75pt;">
 Flame Test<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 36.75pt;">
 IEC 60332-3 &amp;
 TS/DIN EN 50266-2-4<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:9;height:21.75pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 21.75pt;">
 Smoke Density<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 21.75pt;">
 IEC 61034-2 &amp;
 TS/DIN EN 50268-2<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:10;height:16.5pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 16.5pt;">
 Corrosive Gas Test<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 16.5pt;">
 IEC 60754-1/2 &amp; TS/DIN
 EN 50267-2<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:11;height:25.5pt">
 <td width="189" rowspan="5" style="width: 142pt; border-top: none; border-left: 1pt solid windowtext; border-bottom: 1pt solid black; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 25.5pt;">
 Weakening<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 25.5pt;">
 100 MHz = 7 dB / 100 m<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:12;height:26.25pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 26.25pt;">
 200 MHz = 10.4 dB /
 100 m<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:13;height:27.75pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 27.75pt;">
 400 MHz = 14.8 dB /
 100 m<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:14;height:20.25pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 20.25pt;">
 800 MHz = 20.5 dB /
 100 m<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:15;mso-yfti-lastrow:yes;height:20.25pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 20.25pt;">
 1000 MHz = 23 dB / 100
 m<o:p></o:p>
 </td>
 </tr>
</tbody></table>

</div>

For indoor use as a subscriber distribution cable in TV and satellite antenna systems where lower low-tension currents are of importance.

Cable structure
Conductor	Cu - Ø 1,00 mm
Insulation	FPE Ø 4,70 mm
External Conductor	Al- PES
Screen	Thin plated Copper Wire
Sheath	HFFR - White, Black, Gray
Cable Diameter	Ø 7,00 mm
Cable Weight42,5	51 Kg / Km
Standard Length	100 / 500 /1000 m
Code No	101 14442 1024

Technicial Specifications
Capacity	55 ± 3 pF/m
Insulator Resistance	500 M.Ω.Km
Characteristic Impedance	75 ± 3Ω
Propagation Velocity	84% v/c
Operating voltage	1.3 kV
Operating temperature	-40°C ~ +70°C
min. Bending Radius	10 x D
Flame Test	IEC 60332-3 & TS/DIN EN 50266-2-4
Smoke Density	IEC 61034-2 & TS/DIN EN 50268-2
Corrosive Gas Test	IEC 60754-1/2 & TS/DIN EN 50267-2
Weakening	100 MHz = 7 dB / 100 m
	200 MHz = 10.4 dB / 100 m
	400 MHz = 14.8 dB / 100 m
	800 MHz = 20.5 dB / 100 m
	1000 MHz = 23 dB / 100 m

Product name

Short description

Full description

For indoor use as a subscriber distribution cable in TV and satellite antenna systems where lower low-tension currents are of importance.<div align="center"><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody><tr style="height: 31.5pt;"><td width="347" nowrap="" colspan="2" style="border-width: 1pt; border-style: solid; border-color: windowtext; width: 260pt; padding: 0cm 5.4pt; height: 31.5pt;">Cable structure<o:p></o:p></td></tr><tr style="height: 15.75pt;"><td width="126" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 94.65pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">Conductor<o:p></o:p></td><td width="220" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 165.35pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">Cu - Ø 1,00 mm<o:p></o:p></td></tr><tr style="height: 28.5pt;"><td width="126" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 94.65pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 28.5pt;">Insulation<o:p></o:p></td><td width="220" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 165.35pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 28.5pt;">FPE Ø 4,70 mm<o:p></o:p></td></tr><tr style="height: 31.5pt;"><td width="126" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 94.65pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">External Conductor<o:p></o:p></td><td width="220" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 165.35pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">Al- PES<o:p></o:p></td></tr><tr style="height: 15.75pt;"><td width="126" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 94.65pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">Screen<o:p></o:p></td><td width="220" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 165.35pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">Thin plated Copper Wire<o:p></o:p></td></tr><tr style="height: 31.5pt;"><td width="126" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 94.65pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">Sheath<o:p></o:p></td><td width="220" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 165.35pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">HFFR -&nbsp;White,&nbsp;Black, Gray<o:p></o:p></td></tr><tr style="height: 30pt;"><td width="126" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 94.65pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">Cable Diameter&nbsp;<o:p></o:p></td><td width="220" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 165.35pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">Ø 7,00 mm<o:p></o:p></td></tr><tr style="height: 31.5pt;"><td width="126" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 94.65pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">Cable&nbsp;Weight42,5<o:p></o:p></td><td width="220" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 165.35pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">51 Kg / Km<o:p></o:p></td></tr><tr style="height: 36.75pt;"><td width="126" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 94.65pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 36.75pt;">Standard Length<o:p></o:p></td><td width="220" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 165.35pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 36.75pt;">100 / 500 /1000 m<o:p></o:p></td></tr><tr style="height: 21.75pt;"><td width="126" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 94.65pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 21.75pt;">Code No<o:p></o:p></td><td width="220" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 165.35pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 21.75pt;">101 14442 1024<o:p></o:p></td></tr></tbody></table></div><div align="center"> <table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody></tbody></table></div><div align="center"><div align="center"></div><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody></tbody></table><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="464" style="width: 348pt;"><tbody><tr style="height: 30pt;"><td width="464" nowrap="" colspan="2" style="border-width: 1pt; border-style: solid; border-color: windowtext; width: 348pt; padding: 0cm 5.4pt; height: 30pt;">Technicial Specifications<o:p></o:p></td></tr><tr style="height: 15.75pt;"><td width="189" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">Capacity<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">55 ± 3 pF/m<o:p></o:p></td></tr><tr style="height: 28.5pt;"><td width="189" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 28.5pt;">Insulator Resistance<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 28.5pt;">500 M.Ω.Km<o:p></o:p></td></tr><tr style="height: 31.5pt;"><td width="189" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">Characteristic Impedance<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">75 ± 3Ω<o:p></o:p></td></tr><tr style="height: 15.75pt;"><td width="189" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">Propagation Velocity<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">84% v/c<o:p></o:p></td></tr><tr style="height: 31.5pt;"><td width="189" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">Operating voltage<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">1.3 kV<o:p></o:p></td></tr><tr style="height: 30pt;"><td width="189" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">Operating temperature<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">-40°C ~ +70°C<o:p></o:p></td></tr><tr style="height: 31.5pt;"><td width="189" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">min.&nbsp;Bending Radius<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">10 x D<o:p></o:p></td></tr><tr style="height: 36.75pt;"><td width="189" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 36.75pt;">Flame Test<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 36.75pt;">IEC 60332-3 &amp; TS/DIN EN 50266-2-4<o:p></o:p></td></tr><tr style="height: 21.75pt;"><td width="189" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 21.75pt;">Smoke Density<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 21.75pt;">IEC 61034-2 &amp; TS/DIN EN 50268-2<o:p></o:p></td></tr><tr style="height: 16.5pt;"><td width="189" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 16.5pt;">Corrosive Gas Test<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 16.5pt;">IEC 60754-1/2 &amp; TS/DIN EN 50267-2<o:p></o:p></td></tr><tr style="height: 25.5pt;"><td width="189" rowspan="5" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid black; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 25.5pt;">Weakening<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 25.5pt;">100 MHz = 7 dB / 100 m<o:p></o:p></td></tr><tr style="height: 26.25pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 26.25pt;">200 MHz = 10.4 dB / 100 m<o:p></o:p></td></tr><tr style="height: 27.75pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 27.75pt;">400 MHz = 14.8 dB / 100 m<o:p></o:p></td></tr><tr style="height: 20.25pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 20.25pt;">800 MHz = 20.5 dB / 100 m<o:p></o:p></td></tr><tr style="height: 20.25pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 20.25pt;">1000 MHz = 23 dB / 100 m<o:p></o:p></td></tr></tbody></table></div>

For indoor use as a subscriber distribution cable in TV and satellite antenna systems where lower low-tension currents are of importance.

Cable structure
Conductor	Cu - Ø 1,00 mm
Insulation	FPE Ø 4,70 mm
External Conductor	Al- PES
Screen	Thin plated Copper Wire
Sheath	HFFR - White, Black, Gray
Cable Diameter	Ø 7,00 mm
Cable Weight42,5	51 Kg / Km
Standard Length	100 / 500 /1000 m
Code No	101 14442 1024

Technicial Specifications
Capacity	55 ± 3 pF/m
Insulator Resistance	500 M.Ω.Km
Characteristic Impedance	75 ± 3Ω
Propagation Velocity	84% v/c
Operating voltage	1.3 kV
Operating temperature	-40°C ~ +70°C
min. Bending Radius	10 x D
Flame Test	IEC 60332-3 & TS/DIN EN 50266-2-4
Smoke Density	IEC 61034-2 & TS/DIN EN 50268-2
Corrosive Gas Test	IEC 60754-1/2 & TS/DIN EN 50267-2
Weakening	100 MHz = 7 dB / 100 m
	200 MHz = 10.4 dB / 100 m
	400 MHz = 14.8 dB / 100 m
	800 MHz = 20.5 dB / 100 m
	1000 MHz = 23 dB / 100 m

Product name

Short description

Full description

للاستخدام الداخلي ككابل توزيع مشترك في أنظمة التلفزيون الهوائي والأقمار الصناعية حيث تكون التيارات منخفضة التوتر ذات أهمية. <table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="rtl" border="1" style="table-layout: fixed; font-size: 11pt; font-family: Calibri; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="90"><col width="206"></colgroup><tbody><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;موصل&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">موصل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;نحاس - قطر 1.00 مم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">نحاس - قطر 1.00 مم</td></tr><tr style="height: 38px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;عازلة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">عازلة</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;FPE Ø 4.70 ملم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">FPE Ø 4.70 ملم</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;موصل خارجي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">موصل خارجي</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;آل بيس&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">آل بيس</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;شاشة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">شاشة</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;أسلاك نحاسية معلبة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">أسلاك نحاسية معلبة</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;غطاء&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">غطاء</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;HFFR - أبيض ، أسود ، رمادي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">HFFR - أبيض ، أسود ، رمادي</td></tr><tr style="height: 40px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;القطر الخارجي للكابل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">القطر الخارجي للكابل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Ø 7.00 ملم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Ø 7.00 ملم</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;وزن الكابل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">وزن الكابل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;51 كجم / كم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">51 كجم / كم</td></tr><tr style="height: 49px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;طول قياسي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">طول قياسي</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;100/500/1000 م&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">100/500/1000 م</td></tr><tr style="height: 29px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;رقم الكود.&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">رقم الكود.</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;101 14442 1024&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">101 14442 1024</td></tr></tbody></table><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="rtl" border="1" style="table-layout: fixed; font-size: 11pt; font-family: Calibri; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="130"><col width="233"></colgroup><tbody><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;سعة&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">سعة</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;55 ± 3 بيكو فاراد / م&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">55 ± 3 بيكو فاراد / م</td></tr><tr style="height: 38px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;مقاومة العازل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">مقاومة العازل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;500 م&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">500 م</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;مقاومة مميزة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">مقاومة مميزة</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;75 ± 3Ω&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">75 ± 3Ω</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;سرعة الانتشار&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">سرعة الانتشار</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;84٪ حجم / ج&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">84٪ حجم / ج</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;جهد التشغيل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">جهد التشغيل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1.3 كيلو فولت&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">1.3 كيلو فولت</td></tr><tr style="height: 40px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;درجة حرارة التشغيل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">درجة حرارة التشغيل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-40 درجة مئوية ~ + 70 درجة مئوية&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">-40 درجة مئوية ~ + 70 درجة مئوية</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;دقيقة.&nbsp;الانحناء الشعاع&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">دقيقة.&nbsp;الانحناء الشعاع</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;10 × د&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">10 × د</td></tr><tr style="height: 49px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;اختبار اللهب&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">اختبار اللهب</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;IEC 60332-3 &amp; TS / DIN EN 50266-2-4&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">IEC 60332-3 &amp; TS / DIN EN 50266-2-4</td></tr><tr style="height: 29px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;كثافة الدخان&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">كثافة الدخان</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;IEC 61034-2 &amp; TS / DIN EN 50268-2&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">IEC 61034-2 &amp; TS / DIN EN 50268-2</td></tr><tr style="height: 22px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;اختبار الغازات المسببة للتآكل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">اختبار الغازات المسببة للتآكل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;IEC 60754-1 / 2 &amp; TS / DIN EN 50267-2&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">IEC 60754-1 / 2 &amp; TS / DIN EN 50267-2</td></tr><tr style="height: 34px;"><td dir="rtl" rowspan="5" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;إضعاف&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;"><div style="max-height: 160px;">إضعاف</div></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;100 ميجاهرتز = 7 ديسيبل / 100 م&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">100 ميجاهرتز = 7 ديسيبل / 100 م</td></tr><tr style="height: 35px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;200 ميجاهرتز = 10.4 ديسيبل / 100 م&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">200 ميجاهرتز = 10.4 ديسيبل / 100 م</td></tr><tr style="height: 37px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;400 ميجاهرتز = 14.8 ديسيبل / 100 م&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">400 ميجاهرتز = 14.8 ديسيبل / 100 م</td></tr><tr style="height: 27px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;800 ميجاهرتز = 20.5 ديسيبل / 100 م&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">800 ميجاهرتز = 20.5 ديسيبل / 100 م</td></tr><tr style="height: 27px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1000 ميجاهرتز = 23 ديسيبل / 100 م&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">1000 ميجاهرتز = 23 ديسيبل / 100 م</td></tr></tbody></table><div align="center"></div>

للاستخدام الداخلي ككابل توزيع مشترك في أنظمة التلفزيون الهوائي والأقمار الصناعية حيث تكون التيارات منخفضة التوتر ذات أهمية.

موصل	نحاس - قطر 1.00 مم
عازلة	FPE Ø 4.70 ملم
موصل خارجي	آل بيس
شاشة	أسلاك نحاسية معلبة
غطاء	HFFR - أبيض ، أسود ، رمادي
القطر الخارجي للكابل	Ø 7.00 ملم
وزن الكابل	51 كجم / كم
طول قياسي	100/500/1000 م
رقم الكود.	101 14442 1024

سعة	55 ± 3 بيكو فاراد / م
مقاومة العازل	500 م
مقاومة مميزة	75 ± 3Ω
سرعة الانتشار	84٪ حجم / ج
جهد التشغيل	1.3 كيلو فولت
درجة حرارة التشغيل	-40 درجة مئوية ~ + 70 درجة مئوية
دقيقة. الانحناء الشعاع	10 × د
اختبار اللهب	IEC 60332-3 & TS / DIN EN 50266-2-4
كثافة الدخان	IEC 61034-2 & TS / DIN EN 50268-2
اختبار الغازات المسببة للتآكل	IEC 60754-1 / 2 & TS / DIN EN 50267-2
إضعاف	100 ميجاهرتز = 7 ديسيبل / 100 م
	200 ميجاهرتز = 10.4 ديسيبل / 100 م
	400 ميجاهرتز = 14.8 ديسيبل / 100 م
	800 ميجاهرتز = 20.5 ديسيبل / 100 م
	1000 ميجاهرتز = 23 ديسيبل / 100 م

Product name

Short description

Full description

Düsük zayıf akım istenen bina içi tv ve uydu sistemlerinde abone dagıtım kablosu olarak kullanılır.Yüksek frekans geçirgenligi ile tercih edilir.<div align="center">

<table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="329" style="width: 247pt;">
 <tbody><tr style="mso-yfti-irow:0;mso-yfti-firstrow:yes;height:31.5pt">
 <td width="329" nowrap="" colspan="2" style="width: 247pt; border-width: 1pt; border-style: solid; border-color: windowtext; padding: 0cm 5.4pt; height: 31.5pt;">
 Kablo yapısı<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:1;height:15.75pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 İletken<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Cu - Ø 1,00 mm<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:2;height:28.5pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 28.5pt;">
 İzolasyon<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 28.5pt;">
 FPE Ø 4,70 mm<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:3;height:31.5pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Dış İletken<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Al-PES<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:4;height:15.75pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Ekran<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Kalaylı Bakır Tel<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:5;height:31.5pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Kılıf<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 HFFR - Beyaz, Siyah,
 Gri<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:6;height:30.0pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 Kablo Dış Çapı<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 Ø 7,00 mm<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:7;height:31.5pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Kablo Ağırlığı<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 51 Kg / Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:8;height:36.75pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 36.75pt;">
 Standart Uzunluk<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 36.75pt;">
 100 / 500 /1000 m<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:9;mso-yfti-lastrow:yes;height:21.75pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 21.75pt;">
 Kod No<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 21.75pt;">
 101 14442 1024<o:p></o:p>
 </td>
 </tr>
</tbody></table></div><div align="center"><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="329" style="width: 247pt;"><tbody> </tbody></table></div><div align="center"><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="329" style="width: 247pt;"><tbody><div align="center">

<table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="406" style="width: 304.55pt;">
 <tbody><tr style="mso-yfti-irow:0;mso-yfti-firstrow:yes;height:30.0pt">
 <td width="406" nowrap="" colspan="2" style="width: 304.55pt; border-top: 1pt solid windowtext; border-right: 1pt solid windowtext; border-left: 1pt solid windowtext; border-bottom: none; padding: 0cm 5.4pt; height: 30pt;">
 <span style="mso-ascii-font-family:Calibri;mso-fareast-font-family:
 &quot;Times New Roman&quot;;mso-hansi-font-family:Calibri;mso-bidi-font-family:Calibri;
 color:black;mso-font-kerning:0pt;mso-ligatures:none">Teknik Özellikler<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:1;height:15.75pt">
 <td width="127" style="width: 95pt; border-width: 1pt; border-style: solid; border-color: windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Kapasite<o:p></o:p>
 </td>
 <td width="279" style="width: 209.55pt; border-top: 1pt solid windowtext; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 55&nbsp;±&nbsp;3 pF/m<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:2;height:28.5pt">
 <td width="127" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 28.5pt;">
 Yalıtkan Direnci<o:p></o:p>
 </td>
 <td width="279" style="width: 209.55pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 28.5pt;">
 500 M.Ω.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:3;height:31.5pt">
 <td width="127" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Karakteristik Empedans<o:p></o:p>
 </td>
 <td width="279" style="width: 209.55pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 75&nbsp;± 3Ω<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:4;height:15.75pt">
 <td width="127" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Yayılma Hızı<o:p></o:p>
 </td>
 <td width="279" style="width: 209.55pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 % 84 v/c<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:5;height:31.5pt">
 <td width="127" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Çalısma Gerilimi<o:p></o:p>
 </td>
 <td width="279" style="width: 209.55pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 1,3 kV<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:6;height:30.0pt">
 <td width="127" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 Çalışma Sıcaklığı<o:p></o:p>
 </td>
 <td width="279" style="width: 209.55pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 -40 ° C ~ + 70 ° C<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:7;height:31.5pt">
 <td width="127" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Min. Bükülme Yarıçapı<o:p></o:p>
 </td>
 <td width="279" style="width: 209.55pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 10 x D<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:8;height:36.75pt">
 <td width="127" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 36.75pt;">
 Alev Testi<o:p></o:p>
 </td>
 <td width="279" style="width: 209.55pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 36.75pt;">
 IEC 60332-3 &amp; TS/DIN
 EN 50266-2-4<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:9;height:21.75pt">
 <td width="127" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 21.75pt;">
 Duman Yoğunluğu<o:p></o:p>
 </td>
 <td width="279" style="width: 209.55pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 21.75pt;">
 IEC 61034-2 &amp;
 TS/DIN EN 50268-2<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:10;height:16.5pt">
 <td width="127" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 16.5pt;">
 Korozif Gaz Testi<o:p></o:p>
 </td>
 <td width="279" style="width: 209.55pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 16.5pt;">
 IEC 60754-1/2 &amp;
 TS/DIN EN 50267-2<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:11;height:25.5pt">
 <td width="127" rowspan="5" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 25.5pt;">
 Zayıflama<o:p></o:p>
 </td>
 <td width="279" style="width: 209.55pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 25.5pt;">
 100 MHz = 7 dB / 100 m<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:12;height:26.25pt">
 <td width="279" style="width: 209.55pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 26.25pt;">
 200 MHz = 10,4 dB /
 100 m<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:13;height:27.75pt">
 <td width="279" style="width: 209.55pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 27.75pt;">
 400 MHz = 14,8 dB /
 100 m<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:14;height:20.25pt">
 <td width="279" style="width: 209.55pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 20.25pt;">
 800 MHz = 20,5&nbsp;dB
 / 100 m<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:15;mso-yfti-lastrow:yes;height:20.25pt">
 <td width="279" style="width: 209.55pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 20.25pt;">
 1000 MHz = 23&nbsp;dB
 / 100 m<o:p></o:p>
 </td>
 </tr>
</tbody></table>

</div></tbody></table>

</div>

Düsük zayıf akım istenen bina içi tv ve uydu sistemlerinde abone dagıtım kablosu olarak kullanılır.Yüksek frekans geçirgenligi ile tercih edilir.

Kablo yapısı
İletken	Cu - Ø 1,00 mm
İzolasyon	FPE Ø 4,70 mm
Dış İletken	Al-PES
Ekran	Kalaylı Bakır Tel
Kılıf	HFFR - Beyaz, Siyah, Gri
Kablo Dış Çapı	Ø 7,00 mm
Kablo Ağırlığı	51 Kg / Km
Standart Uzunluk	100 / 500 /1000 m
Kod No	101 14442 1024

Teknik Özellikler
Kapasite	55 ± 3 pF/m
Yalıtkan Direnci	500 M.Ω.Km
Karakteristik Empedans	75 ± 3Ω
Yayılma Hızı	% 84 v/c
Çalısma Gerilimi	1,3 kV
Çalışma Sıcaklığı	-40 ° C ~ + 70 ° C
Min. Bükülme Yarıçapı	10 x D
Alev Testi	IEC 60332-3 & TS/DIN EN 50266-2-4
Duman Yoğunluğu	IEC 61034-2 & TS/DIN EN 50268-2
Korozif Gaz Testi	IEC 60754-1/2 & TS/DIN EN 50267-2
Zayıflama	100 MHz = 7 dB / 100 m
	200 MHz = 10,4 dB / 100 m
	400 MHz = 14,8 dB / 100 m
	800 MHz = 20,5 dB / 100 m
	1000 MHz = 23 dB / 100 m

Product name

Short description

Full description

Click to edit HTML...

Product name

Short description

Full description

Click to edit HTML...

SKU

Manufacturer part number

GTIN (global trade item number)

Customs Tariff Number

Product condition

Country of Origin

Admin comment

Product tags

Available start date

Available end date

Allow customer reviews

Show on home page

Display order

Limited to stores

Limited to customer roles

Require other products are added to the cart

Required product IDs

Automatically add these products to the cart

Is gift card

Gift card type

Recurring product

Cycle length

Cycle period

Total cycles

Shipping enabled

Delivery time

Free shipping

Additional shipping charge

USD

Quantity unit

Product Unit Id

Weight

milliliter

Length

centimeter

Width

centimeter

Height

centimeter

Box Weight

Item Count In Box

Box Price

USD

Boxes Count In Container

Container Price

USD

Tax exempt

Tax category

Is Electronic Service

Add Video

Options

Exclude first image from gallery

Add a new picture

To upload files drop them here or click.

Main media file


Title tag

Meta description

Meta keywords

URL alias

Show all (4)

Title tag

Meta description

Meta keywords

URL alias

Title tag

Meta description

Meta keywords

URL alias

Title tag

Meta description

Meta keywords

URL alias

Title tag

Meta description

Meta keywords

URL alias

Title tag

Meta description

Meta keywords

URL alias

Download

Downloadable product

Download file

To upload files drop them here or click.

Version

Options

Unlimited downloads

Max. downloads

Number of days

Days

Download activation type

Has user agreement

User agreement text

Click to edit HTML...

Has sample download file

Sample download file

To upload files drop them here or click.
