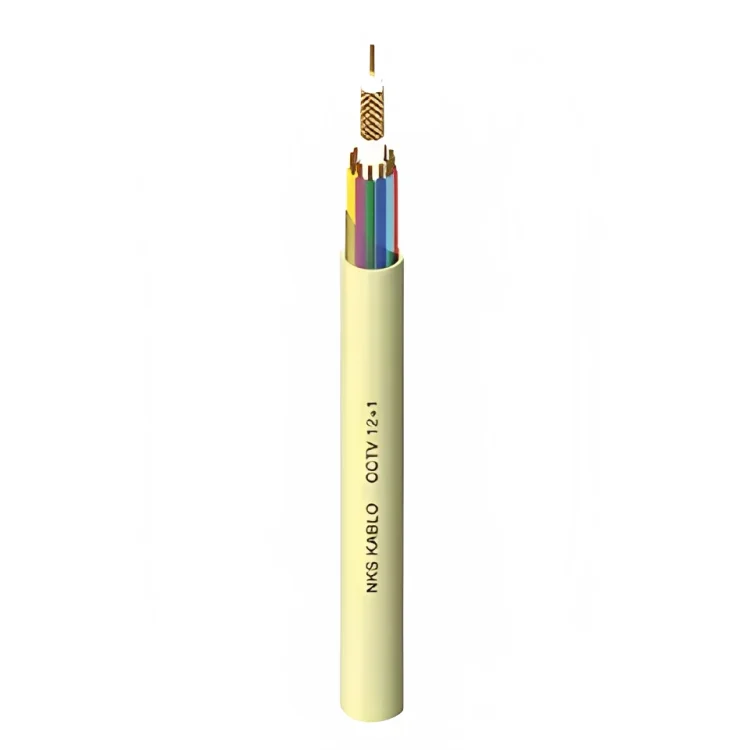

Edit product details - CCTV 12+1 ( 1 COAX + 12X0,22) Cable

Copy product

Created on

3/16/2023 5:01:06 PM

Updated on

6/13/2023 10:33:01 AM

URL of the product page

https://www.alderishop.com/cctv-12-1-1-coax-12x0-22-cable-4/

Product type

Published

Visibility

Product name

Short description

Full description

CCTV cables are used to connect video, sound and communication systems to each other aswell as closed circuit TV systems.CCTV cables are manufactured for various different uses.<div align="center">

<table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;">
 <tbody><tr style="mso-yfti-irow:0;mso-yfti-firstrow:yes;height:31.5pt">
 <td width="347" nowrap="" colspan="2" style="width: 260pt; border-width: 1pt; border-style: solid; border-color: windowtext; padding: 0cm 5.4pt; height: 31.5pt;">
 Cable structure<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:1;height:15.75pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Conductor<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Ø 0,60 mm<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:2;height:31.5pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Insulation<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 SOLID PE<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:3;height:31.5pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Screen<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Thin plated Copper
 Wires<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:4;height:15.75pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Sheath<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 PVC White - Black<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:5;height:47.25pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">
 Cores for Signal<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">
 0,22 mm²<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:6;height:47.25pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">
 Signal Core Structure<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">
 SOLID PE / Ø 1,20 mm<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:7;height:31.5pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Signal Core Colors<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 12 Different Color<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:8;height:15.75pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Stranding<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 12 Colors Over Coaxial<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:9;height:31.5pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Seperator Tape<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 PES TAPE<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:10;height:31.5pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 External Diameter<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Ø 7,50 mm<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:11;height:15.75pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Sheath<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 PVC RAL 7032 GRAY<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:12;height:31.5pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Cable Weight<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 75 Kg / Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:13;height:31.5pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Standard Length<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 100 / 500 / 1000 m<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:14;mso-yfti-lastrow:yes;height:15.75pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Code No<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 102 12113 1121<o:p></o:p>
 </td>
 </tr>
</tbody></table></div><div align="center"> <table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody></tbody></table></div><div align="center"><div align="center">

</div><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody></tbody></table><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="464" style="width: 348pt;">
 <tbody><tr style="mso-yfti-irow:0;mso-yfti-firstrow:yes;height:30.0pt">
 <td width="464" nowrap="" colspan="2" style="width: 348pt; border-width: 1pt; border-style: solid; border-color: windowtext; padding: 0cm 5.4pt; height: 30pt;">
 <span style="mso-ascii-font-family:Calibri;mso-fareast-font-family:
 &quot;Times New Roman&quot;;mso-hansi-font-family:Calibri;mso-bidi-font-family:Calibri;
 color:black;mso-font-kerning:0pt;mso-ligatures:none">Technicial
 Specifications<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:1;height:15.75pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Conductor Resistance<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 79Ω / Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:2;height:31.5pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Effective Capacity<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 58 pF/m<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:3;height:31.5pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Impedance<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 75 ± 3Ω<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:4;height:15.75pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Operating voltage<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 250V<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:5;height:47.25pt">
 <td width="189" rowspan="2" style="width: 142pt; border-top: none; border-left: 1pt solid windowtext; border-bottom: 1pt solid black; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">
 Operating temperature<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">
 Fixed Fixed Laying -5
 ° C ~ + 70 ° C<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:6;height:47.25pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">
 Movable Flexible -30 °
 C ~ + 80 ° C<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:7;height:31.5pt">
 <td width="189" rowspan="2" style="width: 142pt; border-top: none; border-left: 1pt solid windowtext; border-bottom: 1pt solid black; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 min.&nbsp;Bending
 Radius<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Fixed Fixed Laying 7,5
 x D<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:8;height:78.75pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 78.75pt;">
 Movable Flexible 10 x
 D<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:9;mso-yfti-lastrow:yes;height:31.5pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Flame Test<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 IEC 60332-1 , EN
 50265-2-1<o:p></o:p>
 </td>
 </tr>
</tbody></table>

</div>

CCTV cables are used to connect video, sound and communication systems to each other aswell as closed circuit TV systems.

CCTV cables are manufactured for various different uses.

Cable structure
Conductor	Ø 0,60 mm
Insulation	SOLID PE
Screen	Thin plated Copper Wires
Sheath	PVC White - Black
Cores for Signal	0,22 mm²
Signal Core Structure	SOLID PE / Ø 1,20 mm
Signal Core Colors	12 Different Color
Stranding	12 Colors Over Coaxial
Seperator Tape	PES TAPE
External Diameter	Ø 7,50 mm
Sheath	PVC RAL 7032 GRAY
Cable Weight	75 Kg / Km
Standard Length	100 / 500 / 1000 m
Code No	102 12113 1121

Technicial Specifications
Conductor Resistance	79Ω / Km
Effective Capacity	58 pF/m
Impedance	75 ± 3Ω
Operating voltage	250V
Operating temperature	Fixed Fixed Laying -5 ° C ~ + 70 ° C
Operating temperature	Movable Flexible -30 ° C ~ + 80 ° C
min. Bending Radius	Fixed Fixed Laying 7,5 x D
min. Bending Radius	Movable Flexible 10 x D
Flame Test	IEC 60332-1 , EN 50265-2-1

Product name

Short description

Full description

CCTV cables are used to connect video, sound and communication systems to each other aswell as closed circuit TV systems.CCTV cables are manufactured for various different uses.<div align="center"><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody><tr style="height: 31.5pt;"><td width="347" nowrap="" colspan="2" style="border-width: 1pt; border-style: solid; border-color: windowtext; width: 260pt; padding: 0cm 5.4pt; height: 31.5pt;">Cable structure<o:p></o:p></td></tr><tr style="height: 15.75pt;"><td width="108" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 81pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">Conductor<o:p></o:p></td><td width="239" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 179pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">Ø 0,60 mm<o:p></o:p></td></tr><tr style="height: 31.5pt;"><td width="108" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 81pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">Insulation<o:p></o:p></td><td width="239" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 179pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">SOLID PE<o:p></o:p></td></tr><tr style="height: 31.5pt;"><td width="108" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 81pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">Screen<o:p></o:p></td><td width="239" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 179pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">Thin plated Copper Wires<o:p></o:p></td></tr><tr style="height: 15.75pt;"><td width="108" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 81pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">Sheath<o:p></o:p></td><td width="239" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 179pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">PVC White - Black<o:p></o:p></td></tr><tr style="height: 47.25pt;"><td width="108" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 81pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">Cores for Signal<o:p></o:p></td><td width="239" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 179pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">0,22 mm²<o:p></o:p></td></tr><tr style="height: 47.25pt;"><td width="108" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 81pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">Signal Core Structure<o:p></o:p></td><td width="239" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 179pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">SOLID PE / Ø 1,20 mm<o:p></o:p></td></tr><tr style="height: 31.5pt;"><td width="108" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 81pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">Signal Core Colors<o:p></o:p></td><td width="239" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 179pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">12 Different Color<o:p></o:p></td></tr><tr style="height: 15.75pt;"><td width="108" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 81pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">Stranding<o:p></o:p></td><td width="239" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 179pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">12 Colors Over Coaxial<o:p></o:p></td></tr><tr style="height: 31.5pt;"><td width="108" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 81pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">Seperator Tape<o:p></o:p></td><td width="239" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 179pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">PES TAPE<o:p></o:p></td></tr><tr style="height: 31.5pt;"><td width="108" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 81pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">External Diameter<o:p></o:p></td><td width="239" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 179pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">Ø 7,50 mm<o:p></o:p></td></tr><tr style="height: 15.75pt;"><td width="108" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 81pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">Sheath<o:p></o:p></td><td width="239" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 179pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">PVC RAL 7032 GRAY<o:p></o:p></td></tr><tr style="height: 31.5pt;"><td width="108" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 81pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">Cable Weight<o:p></o:p></td><td width="239" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 179pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">75 Kg / Km<o:p></o:p></td></tr><tr style="height: 31.5pt;"><td width="108" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 81pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">Standard Length<o:p></o:p></td><td width="239" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 179pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">100 / 500 / 1000 m<o:p></o:p></td></tr><tr style="height: 15.75pt;"><td width="108" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 81pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">Code No<o:p></o:p></td><td width="239" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 179pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">102 12113 1121<o:p></o:p></td></tr></tbody></table></div><div align="center"> <table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody></tbody></table></div><div align="center"><div align="center"></div><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody></tbody></table><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="464" style="width: 348pt;"><tbody><tr style="height: 30pt;"><td width="464" nowrap="" colspan="2" style="border-width: 1pt; border-style: solid; border-color: windowtext; width: 348pt; padding: 0cm 5.4pt; height: 30pt;">Technicial Specifications<o:p></o:p></td></tr><tr style="height: 15.75pt;"><td width="189" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">Conductor Resistance<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">79Ω / Km<o:p></o:p></td></tr><tr style="height: 31.5pt;"><td width="189" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">Effective Capacity<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">58 pF/m<o:p></o:p></td></tr><tr style="height: 31.5pt;"><td width="189" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">Impedance<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">75 ± 3Ω<o:p></o:p></td></tr><tr style="height: 15.75pt;"><td width="189" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">Operating voltage<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">250V<o:p></o:p></td></tr><tr style="height: 47.25pt;"><td width="189" rowspan="2" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid black; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">Operating temperature<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">Fixed Fixed Laying -5 ° C ~ + 70 ° C<o:p></o:p></td></tr><tr style="height: 47.25pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">Movable Flexible -30 ° C ~ + 80 ° C<o:p></o:p></td></tr><tr style="height: 31.5pt;"><td width="189" rowspan="2" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid black; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">min.&nbsp;Bending Radius<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">Fixed Fixed Laying 7,5 x D<o:p></o:p></td></tr><tr style="height: 78.75pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 78.75pt;">Movable Flexible 10 x D<o:p></o:p></td></tr><tr style="height: 31.5pt;"><td width="189" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">Flame Test<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">IEC 60332-1 , EN 50265-2-1<o:p></o:p></td></tr></tbody></table></div>

CCTV cables are used to connect video, sound and communication systems to each other aswell as closed circuit TV systems.

CCTV cables are manufactured for various different uses.

Cable structure
Conductor	Ø 0,60 mm
Insulation	SOLID PE
Screen	Thin plated Copper Wires
Sheath	PVC White - Black
Cores for Signal	0,22 mm²
Signal Core Structure	SOLID PE / Ø 1,20 mm
Signal Core Colors	12 Different Color
Stranding	12 Colors Over Coaxial
Seperator Tape	PES TAPE
External Diameter	Ø 7,50 mm
Sheath	PVC RAL 7032 GRAY
Cable Weight	75 Kg / Km
Standard Length	100 / 500 / 1000 m
Code No	102 12113 1121

Technicial Specifications
Conductor Resistance	79Ω / Km
Effective Capacity	58 pF/m
Impedance	75 ± 3Ω
Operating voltage	250V
Operating temperature	Fixed Fixed Laying -5 ° C ~ + 70 ° C
Operating temperature	Movable Flexible -30 ° C ~ + 80 ° C
min. Bending Radius	Fixed Fixed Laying 7,5 x D
min. Bending Radius	Movable Flexible 10 x D
Flame Test	IEC 60332-1 , EN 50265-2-1

Product name

Short description

Full description

تستخدم كابلات الدوائر التلفزيونية المغلقة لتوصيل أنظمة الفيديو والصوت والاتصالات ببعضها البعض وكذلك أنظمة الدوائر التلفزيونية المغلقة ، ويتم تصنيع كابلات CCTV لاستخدامات مختلفة. <table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="rtl" border="1" style="table-layout: fixed; font-size: 11pt; font-family: Calibri; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="90"><col width="206"></colgroup><tbody><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;موصل&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">موصل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Ø 0.60 مم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Ø 0.60 مم</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;عازلة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">عازلة</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;مادة البولي ايثيلين الصلبة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">مادة البولي ايثيلين الصلبة</td></tr><tr style="height: 42px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;شاشة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">شاشة</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;نسج من فاين ستراندز&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">نسج من فاين ستراندز</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;غطاء&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">غطاء</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;PVC أبيض - أسود&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">PVC أبيض - أسود</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;موصل الإشارة الأساسية&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">موصل الإشارة الأساسية</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.22 مم²&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">0.22 مم²</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;هيكل سفينة الإشارة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">هيكل سفينة الإشارة</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;بولي ايثيلين صلب / قطر 1.20 ملم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">بولي ايثيلين صلب / قطر 1.20 ملم</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الألوان الأساسية&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">الألوان الأساسية</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;12 لون مختلف&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">12 لون مختلف</td></tr><tr style="height: 105px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;التواء&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">التواء</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;12 لون على محوري&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">12 لون على محوري</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;شريط فاصل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">شريط فاصل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;PES TAPE&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">PES TAPE</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;القطر الخارجي للكابل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">القطر الخارجي للكابل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;Ø 7.50 ملم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">Ø 7.50 ملم</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;غطاء&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">غطاء</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;PVC RAL 7032 رمادي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">PVC RAL 7032 رمادي</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;وزن تقريبي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">وزن تقريبي</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;75 كجم / كم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">75 كجم / كم</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;طول قياسي&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">طول قياسي</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;100/500/1000 م&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">100/500/1000 م</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;رقم الكود.&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">رقم الكود.</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;102 12113 1121&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">102 12113 1121</td></tr></tbody></table><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="rtl" border="1" style="table-layout: fixed; font-size: 11pt; font-family: Calibri; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="130"><col width="233"></colgroup><tbody><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;مقاومة الموصل&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">مقاومة الموصل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;79Ω / كم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">79Ω / كم</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;القدرة الفعالة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">القدرة الفعالة</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;58 بيكو فاراد / م&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">58 بيكو فاراد / م</td></tr><tr style="height: 42px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;معاوقة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">معاوقة</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;75 ± 3Ω&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">75 ± 3Ω</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;جهد التشغيل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">جهد التشغيل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;250 فولت&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">250 فولت</td></tr><tr style="height: 21px;"><td dir="rtl" rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;درجة حرارة التشغيل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;"><div style="max-height: 42px;">درجة حرارة التشغيل</div></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;وضع ثابت ثابت -5 ° C ~ + 70 ° C&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">وضع ثابت ثابت -5 ° C ~ + 70 ° C</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;مرن متحرك -30 ° C ~ + 80 ° C&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">مرن متحرك -30 ° C ~ + 80 ° C</td></tr><tr style="height: 21px;"><td dir="rtl" rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;دقيقة.&nbsp;الانحناء الشعاع&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;"><div style="max-height: 126px;">دقيقة.&nbsp;الانحناء الشعاع</div></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ثابت ثابت وضع 7.5 × د&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">ثابت ثابت وضع 7.5 × د</td></tr><tr style="height: 105px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;المنقولة مرنة 10 × د&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">المنقولة مرنة 10 × د</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;اختبار اللهب&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">اختبار اللهب</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;IEC 60332-1 ، EN 50265-2-1&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">IEC 60332-1 ، EN 50265-2-1</td></tr></tbody></table><div align="center"></div>

تستخدم كابلات الدوائر التلفزيونية المغلقة لتوصيل أنظمة الفيديو والصوت والاتصالات ببعضها البعض وكذلك أنظمة الدوائر التلفزيونية المغلقة ، ويتم تصنيع كابلات CCTV لاستخدامات مختلفة.

موصل	Ø 0.60 مم
عازلة	مادة البولي ايثيلين الصلبة
شاشة	نسج من فاين ستراندز
غطاء	PVC أبيض - أسود
موصل الإشارة الأساسية	0.22 مم²
هيكل سفينة الإشارة	بولي ايثيلين صلب / قطر 1.20 ملم
الألوان الأساسية	12 لون مختلف
التواء	12 لون على محوري
شريط فاصل	PES TAPE
القطر الخارجي للكابل	Ø 7.50 ملم
غطاء	PVC RAL 7032 رمادي
وزن تقريبي	75 كجم / كم
طول قياسي	100/500/1000 م
رقم الكود.	102 12113 1121

مقاومة الموصل	79Ω / كم
القدرة الفعالة	58 بيكو فاراد / م
معاوقة	75 ± 3Ω
جهد التشغيل	250 فولت
درجة حرارة التشغيل	وضع ثابت ثابت -5 ° C ~ + 70 ° C
درجة حرارة التشغيل	مرن متحرك -30 ° C ~ + 80 ° C
دقيقة. الانحناء الشعاع	ثابت ثابت وضع 7.5 × د
دقيقة. الانحناء الشعاع	المنقولة مرنة 10 × د
اختبار اللهب	IEC 60332-1 ، EN 50265-2-1

Product name

Short description

Full description

CCTV kabloları video, ses ve iletisim sistemlerinin birbirine baglanmasında, kapalı devre TV kamera sistemlerinde kullanılırlar.CCTV kabloları kullanım amaçlarına göre çesitli sekillerde üretilmektedir. <div align="center">

<table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="329" style="width: 247pt;">
 <tbody><tr style="mso-yfti-irow:0;mso-yfti-firstrow:yes;height:31.5pt">
 <td width="329" nowrap="" colspan="2" style="width: 247pt; border-width: 1pt; border-style: solid; border-color: windowtext; padding: 0cm 5.4pt; height: 31.5pt;">
 Kablo yapısı<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:1;height:15.75pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 İletken<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Ø 0,60 mm<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:2;height:31.5pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 İzolasyon<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 SOLID PE<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:3;height:31.5pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Ekran<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Ince Tellerden Örgü<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:4;height:15.75pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Kılıf<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 PVC Beyaz - Siyah<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:5;height:47.25pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">
 Sinyal Damar Iletkeni<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">
 0,22 mm²<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:6;height:47.25pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">
 Sinyal Damar Yapısı<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">
 SOLID PE / Ø 1,20 mm<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:7;height:31.5pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Damar Renkleri<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 12 Farklı Renk<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:8;height:78.75pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 78.75pt;">
 Büküm<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 78.75pt;">
 Koaksiyel üzerine 12
 Renk<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:9;height:31.5pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Ayırıcı Bant<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 PES BANT<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:10;height:31.5pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Kablo Dıs Çapı<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Ø 7,50 mm<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:11;height:15.75pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Kılıf<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 PVC RAL 7032 GRI<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:12;height:31.5pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Yaklaşık Ağırlık<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 75 Kg / Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:13;height:31.5pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Standart Uzunluk<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 100 / 500 / 1000 m<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:14;mso-yfti-lastrow:yes;height:15.75pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Kod No<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 102 12113 1121<o:p></o:p>
 </td>
 </tr>
</tbody></table></div><div align="center"> <table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="329" style="width: 247pt;"><tbody></tbody></table></div><div align="center"><div align="center">

</div><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="329" style="width: 247pt;"><tbody></tbody></table><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="406" style="width: 304.55pt;">
 <tbody><tr style="mso-yfti-irow:0;mso-yfti-firstrow:yes;height:30.0pt">
 <td width="406" nowrap="" colspan="2" style="width: 304.55pt; border-top: 1pt solid windowtext; border-right: 1pt solid windowtext; border-left: 1pt solid windowtext; border-bottom: none; padding: 0cm 5.4pt; height: 30pt;">
 <span style="mso-ascii-font-family:Calibri;mso-fareast-font-family:
 &quot;Times New Roman&quot;;mso-hansi-font-family:Calibri;mso-bidi-font-family:Calibri;
 color:black;mso-font-kerning:0pt;mso-ligatures:none">Teknik Özellikler<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:1;height:15.75pt">
 <td width="127" style="width: 95pt; border-width: 1pt; border-style: solid; border-color: windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Iletken Direnci<o:p></o:p>
 </td>
 <td width="279" style="width: 209.55pt; border-top: 1pt solid windowtext; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 79Ω / Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:2;height:31.5pt">
 <td width="127" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Efektif Kapasite<o:p></o:p>
 </td>
 <td width="279" style="width: 209.55pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 58 pF / m<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:3;height:31.5pt">
 <td width="127" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Empedans<o:p></o:p>
 </td>
 <td width="279" style="width: 209.55pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 75&nbsp;± 3Ω<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:4;height:15.75pt">
 <td width="127" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Çalısma Voltajı<o:p></o:p>
 </td>
 <td width="279" style="width: 209.55pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 250 V<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:5;height:47.25pt">
 <td width="127" rowspan="2" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">
 Çalışma Sıcaklığı<o:p></o:p>
 </td>
 <td width="279" style="width: 209.55pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">
 Sabit Fixed Laying -5
 ° C ~ + 70 ° C<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:6;height:47.25pt">
 <td width="279" style="width: 209.55pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">
 Hareketli Flexible -30
 ° C ~ + 80 ° C<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:7;height:31.5pt">
 <td width="127" rowspan="2" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Min. Bükülme Yarıçapı<o:p></o:p>
 </td>
 <td width="279" style="width: 209.55pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Sabit Fixed Laying 7,5
 x D<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:8;height:78.75pt">
 <td width="279" style="width: 209.55pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 78.75pt;">
 Hareketli Flexible 10
 x D<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:9;mso-yfti-lastrow:yes;height:31.5pt">
 <td width="127" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Alev Testi<o:p></o:p>
 </td>
 <td width="279" style="width: 209.55pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 IEC 60332-1 , EN
 50265-2-1<o:p></o:p>
 </td>
 </tr>
</tbody></table>

</div>

CCTV kabloları video, ses ve iletisim sistemlerinin birbirine baglanmasında, kapalı devre TV kamera sistemlerinde kullanılırlar.CCTV kabloları kullanım amaçlarına göre çesitli sekillerde üretilmektedir.

Kablo yapısı
İletken	Ø 0,60 mm
İzolasyon	SOLID PE
Ekran	Ince Tellerden Örgü
Kılıf	PVC Beyaz - Siyah
Sinyal Damar Iletkeni	0,22 mm²
Sinyal Damar Yapısı	SOLID PE / Ø 1,20 mm
Damar Renkleri	12 Farklı Renk
Büküm	Koaksiyel üzerine 12 Renk
Ayırıcı Bant	PES BANT
Kablo Dıs Çapı	Ø 7,50 mm
Kılıf	PVC RAL 7032 GRI
Yaklaşık Ağırlık	75 Kg / Km
Standart Uzunluk	100 / 500 / 1000 m
Kod No	102 12113 1121

Teknik Özellikler
Iletken Direnci	79Ω / Km
Efektif Kapasite	58 pF / m
Empedans	75 ± 3Ω
Çalısma Voltajı	250 V
Çalışma Sıcaklığı	Sabit Fixed Laying -5 ° C ~ + 70 ° C
Çalışma Sıcaklığı	Hareketli Flexible -30 ° C ~ + 80 ° C
Min. Bükülme Yarıçapı	Sabit Fixed Laying 7,5 x D
Min. Bükülme Yarıçapı	Hareketli Flexible 10 x D
Alev Testi	IEC 60332-1 , EN 50265-2-1

Product name

Short description

Full description

Click to edit HTML...

Product name

Short description

Full description

Click to edit HTML...

SKU

Manufacturer part number

GTIN (global trade item number)

Customs Tariff Number

Product condition

Country of Origin

Admin comment

Product tags

Available start date

Available end date

Allow customer reviews

Show on home page

Display order

Limited to stores

Limited to customer roles

Require other products are added to the cart

Required product IDs

Automatically add these products to the cart

Is gift card

Gift card type

Recurring product

Cycle length

Cycle period

Total cycles

Shipping enabled

Delivery time

Free shipping

Additional shipping charge

USD

Quantity unit

Product Unit Id

Weight

milliliter

Length

centimeter

Width

centimeter

Height

centimeter

Box Weight

Item Count In Box

Box Price

USD

Boxes Count In Container

Container Price

USD

Tax exempt

Tax category

Is Electronic Service

Add Video

Options

Exclude first image from gallery

Add a new picture

To upload files drop them here or click.

Main media file


Title tag

Meta description

Meta keywords

URL alias

Show all (4)

Title tag

Meta description

Meta keywords

URL alias

Title tag

Meta description

Meta keywords

URL alias

Title tag

Meta description

Meta keywords

URL alias

Title tag

Meta description

Meta keywords

URL alias

Title tag

Meta description

Meta keywords

URL alias

Download

Downloadable product

Download file

To upload files drop them here or click.

Version

Options

Unlimited downloads

Max. downloads

Number of days

Days

Download activation type

Has user agreement

User agreement text

Click to edit HTML...

Has sample download file

Sample download file

To upload files drop them here or click.
