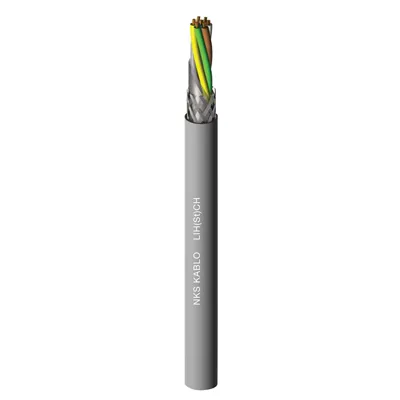

Ürün bilgilerini düzenle - LIH(ST)CH Cable

Ürünü kopyala

Oluşturulma tarihi

16.03.2023 17:01:06

Güncellenme tarihi

13.06.2023 10:36:24

Ürün sayfasının URL'si

https://www.alderishop.com/nks-lih-st-ch-kablo-3/

Ürün tipi

Yayınlanmış

görünürlük

Ürün adı

Kısa açıklama

Tam açıklama

For use on computer systems, control equipments as control and signal cable.Nor for outdoor or subterranean use.Copper screen protects PVC cores.These cables are halogen free and flame retardant.<div align="center">

<table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;">
 <tbody><tr style="mso-yfti-irow:0;mso-yfti-firstrow:yes;height:31.5pt">
 <td width="347" nowrap="" colspan="2" style="width: 260pt; border-width: 1pt; border-style: solid; border-color: windowtext; padding: 0cm 5.4pt; height: 31.5pt;">
 Cable structure<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:1;height:47.25pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">
 Conductor<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">
 IEC 60228 S 5 TS/DIN
 EN 60228 CLASS 5 Twisted electrolytic copper<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:2;height:15.75pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Insulation<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 HFFR, HI2, VDE 0207-23<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:3;height:31.5pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Stranding<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Cores are twisted in
 layers at regular intervals<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:4;height:31.5pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Insulation color
 coding<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 DIN 47100<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:5;height:15.75pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Seperator<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 PES TAPE<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:6;height:15.75pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Screen1<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 AL-PES TAPE<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:7;height:15.75pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Screen2<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Tinned copper braid<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:8;mso-yfti-lastrow:yes;height:31.5pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Sheath<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 HFFR, HM2, VDE
 0207-24, RAL 7001 GRİ&nbsp;<o:p></o:p>
 </td>
 </tr>
</tbody></table></div><div align="center"> </div><div align="center"> <table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody></tbody></table></div><div align="center"><div align="center">

</div><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody></tbody></table><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="464" style="width: 348pt;">
 <tbody><tr style="mso-yfti-irow:0;mso-yfti-firstrow:yes;height:30.0pt">
 <td width="464" nowrap="" colspan="2" style="width: 348pt; border-width: 1pt; border-style: solid; border-color: windowtext; padding: 0cm 5.4pt; height: 30pt;">
 <span style="mso-ascii-font-family:Calibri;mso-fareast-font-family:
 &quot;Times New Roman&quot;;mso-hansi-font-family:Calibri;mso-bidi-font-family:Calibri;
 color:black;mso-font-kerning:0pt;mso-ligatures:none">Technicial
 Specifications<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:1;height:47.25pt">
 <td width="189" rowspan="9" style="width: 142pt; border-top: none; border-left: 1pt solid windowtext; border-bottom: 1pt solid black; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">
 Conductor Resistance<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">
 0.14 mm² = 148 Ω.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:2;height:15.75pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 0.22 mm² = 96 Ω.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:3;height:31.5pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 0.25 mm² = 79.9 Ω.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:4;height:31.5pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 0.34 mm² = 56 Ω.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:5;height:15.75pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 0.50 mm² = 39 Ω.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:6;height:15.75pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 0.75 mm² = 26 Ω.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:7;height:15.75pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 1.00 mm² = 19.5 Ω.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:8;height:31.5pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 1.50 mm² = 13.3 Ω.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:9;height:15.75pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 2.50 mm² = 7.98 Ω.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:10;height:15.75pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Insulation Resistance<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 &gt; 200 MΩ.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:11;height:15.75pt">
 <td width="189" rowspan="2" style="width: 142pt; border-top: none; border-left: 1pt solid windowtext; border-bottom: 1pt solid black; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Operating voltage<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 0.14 mm² = 350 V<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:12;height:15.75pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 ≥&nbsp;&nbsp;0.22 mm² = 500 V<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:13;height:15.75pt">
 <td width="189" rowspan="9" style="width: 142pt; border-top: none; border-left: 1pt solid windowtext; border-bottom: 1pt solid black; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Effective Capacity<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 0.14 mm² = 90 nF/km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:14;height:15.75pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 0.22 mm² = 100 nF/km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:15;height:15.75pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 0.25 mm² = 100 nF/km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:16;height:15.75pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 0.34 mm² = 110 nF/km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:17;height:31.5pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 0.50 mm² = 120 nF/km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:18;height:15.75pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 0.75 mm² = 120 nF/km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:19;height:15.75pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 1.00 mm² = 120 nF/km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:20;height:15.75pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 1.50 mm² = 120 nF/km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:21;height:15.75pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 2.50 mm² = 120 nF/km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:22;height:31.5pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Operating temperature<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 -30°C ~ +80°C<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:23;height:31.5pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Smoke Density<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 IEC 61034-2 &amp; TS/DIN
 EN 50268-2<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:24;height:15.75pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Flame Test<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 IEC 60332-1-2 &amp; EN
 50265-2-1<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:25;height:31.5pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Corrosive Gas Test<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 IEC 60754-1/2 &amp;
 TS/DIN EN 50267-2-3<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:26;height:15.75pt">
 <td width="189" rowspan="2" style="width: 142pt; border-top: none; border-left: 1pt solid windowtext; border-bottom: 1pt solid black; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 min.&nbsp;Bending
 Radius<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Fixed Fixed Laying 6,5
 x D<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:27;mso-yfti-lastrow:yes;height:15.75pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Movable Flexible 15 x
 D<o:p></o:p>
 </td>
 </tr>
</tbody></table>

</div>

For use on computer systems, control equipments as control and signal cable.Nor for outdoor or subterranean use.Copper screen protects PVC cores.These cables are halogen free and flame retardant.

Cable structure
Conductor	IEC 60228 S 5 TS/DIN EN 60228 CLASS 5 Twisted electrolytic copper
Insulation	HFFR, HI2, VDE 0207-23
Stranding	Cores are twisted in layers at regular intervals
Insulation color coding	DIN 47100
Seperator	PES TAPE
Screen1	AL-PES TAPE
Screen2	Tinned copper braid
Sheath	HFFR, HM2, VDE 0207-24, RAL 7001 GRİ

Technicial Specifications
Conductor Resistance	0.14 mm² = 148 Ω.Km
	0.22 mm² = 96 Ω.Km
	0.25 mm² = 79.9 Ω.Km
	0.34 mm² = 56 Ω.Km
	0.50 mm² = 39 Ω.Km
	0.75 mm² = 26 Ω.Km
	1.00 mm² = 19.5 Ω.Km
	1.50 mm² = 13.3 Ω.Km
	2.50 mm² = 7.98 Ω.Km
Insulation Resistance	> 200 MΩ.Km
Operating voltage	0.14 mm² = 350 V
Operating voltage	≥ 0.22 mm² = 500 V
Effective Capacity	0.14 mm² = 90 nF/km
	0.22 mm² = 100 nF/km
	0.25 mm² = 100 nF/km
	0.34 mm² = 110 nF/km
	0.50 mm² = 120 nF/km
	0.75 mm² = 120 nF/km
	1.00 mm² = 120 nF/km
	1.50 mm² = 120 nF/km
	2.50 mm² = 120 nF/km
Operating temperature	-30°C ~ +80°C
Smoke Density	IEC 61034-2 & TS/DIN EN 50268-2
Flame Test	IEC 60332-1-2 & EN 50265-2-1
Corrosive Gas Test	IEC 60754-1/2 & TS/DIN EN 50267-2-3
min. Bending Radius	Fixed Fixed Laying 6,5 x D
min. Bending Radius	Movable Flexible 15 x D

Ürün adı

Kısa açıklama

Tam açıklama

For use on computer systems, control equipments as control and signal cable.Nor for outdoor or subterranean use.Copper screen protects PVC cores.These cables are halogen free and flame retardant.<div align="center"><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody><tr style="height: 31.5pt;"><td width="347" nowrap="" colspan="2" style="border-width: 1pt; border-style: solid; border-color: windowtext; width: 260pt; padding: 0cm 5.4pt; height: 31.5pt;">Cable structure<o:p></o:p></td></tr><tr style="height: 47.25pt;"><td width="108" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 81pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">Conductor<o:p></o:p></td><td width="239" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 179pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">IEC 60228 S 5 TS/DIN EN 60228 CLASS 5 Twisted electrolytic copper<o:p></o:p></td></tr><tr style="height: 15.75pt;"><td width="108" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 81pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">Insulation<o:p></o:p></td><td width="239" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 179pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">HFFR, HI2, VDE 0207-23<o:p></o:p></td></tr><tr style="height: 31.5pt;"><td width="108" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 81pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">Stranding<o:p></o:p></td><td width="239" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 179pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">Cores are twisted in layers at regular intervals<o:p></o:p></td></tr><tr style="height: 31.5pt;"><td width="108" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 81pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">Insulation color coding<o:p></o:p></td><td width="239" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 179pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">DIN 47100<o:p></o:p></td></tr><tr style="height: 15.75pt;"><td width="108" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 81pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">Seperator<o:p></o:p></td><td width="239" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 179pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">PES TAPE<o:p></o:p></td></tr><tr style="height: 15.75pt;"><td width="108" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 81pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">Screen1<o:p></o:p></td><td width="239" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 179pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">AL-PES TAPE<o:p></o:p></td></tr><tr style="height: 15.75pt;"><td width="108" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 81pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">Screen2<o:p></o:p></td><td width="239" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 179pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">Tinned copper braid<o:p></o:p></td></tr><tr style="height: 31.5pt;"><td width="108" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 81pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">Sheath<o:p></o:p></td><td width="239" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 179pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">HFFR, HM2, VDE 0207-24, RAL 7001 GRİ&nbsp;<o:p></o:p></td></tr></tbody></table></div><div align="center"> <table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody></tbody></table></div><div align="center"><div align="center"></div><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody></tbody></table><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="464" style="width: 348pt;"><tbody><tr style="height: 30pt;"><td width="464" nowrap="" colspan="2" style="border-width: 1pt; border-style: solid; border-color: windowtext; width: 348pt; padding: 0cm 5.4pt; height: 30pt;">Technicial Specifications<o:p></o:p></td></tr><tr style="height: 47.25pt;"><td width="189" rowspan="9" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid black; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">Conductor Resistance<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">0.14 mm² = 148 Ω.Km<o:p></o:p></td></tr><tr style="height: 15.75pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">0.22 mm² = 96 Ω.Km<o:p></o:p></td></tr><tr style="height: 31.5pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">0.25 mm² = 79.9 Ω.Km<o:p></o:p></td></tr><tr style="height: 31.5pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">0.34 mm² = 56 Ω.Km<o:p></o:p></td></tr><tr style="height: 15.75pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">0.50 mm² = 39 Ω.Km<o:p></o:p></td></tr><tr style="height: 15.75pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">0.75 mm² = 26 Ω.Km<o:p></o:p></td></tr><tr style="height: 15.75pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">1.00 mm² = 19.5 Ω.Km<o:p></o:p></td></tr><tr style="height: 31.5pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">1.50 mm² = 13.3 Ω.Km<o:p></o:p></td></tr><tr style="height: 15.75pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">2.50 mm² = 7.98 Ω.Km<o:p></o:p></td></tr><tr style="height: 15.75pt;"><td width="189" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">Insulation Resistance<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">&gt; 200 MΩ.Km<o:p></o:p></td></tr><tr style="height: 15.75pt;"><td width="189" rowspan="2" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid black; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">Operating voltage<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">0.14 mm² = 350 V<o:p></o:p></td></tr><tr style="height: 15.75pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">≥&nbsp;&nbsp;0.22 mm² = 500 V<o:p></o:p></td></tr><tr style="height: 15.75pt;"><td width="189" rowspan="9" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid black; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">Effective Capacity<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">0.14 mm² = 90 nF/km<o:p></o:p></td></tr><tr style="height: 15.75pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">0.22 mm² = 100 nF/km<o:p></o:p></td></tr><tr style="height: 15.75pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">0.25 mm² = 100 nF/km<o:p></o:p></td></tr><tr style="height: 15.75pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">0.34 mm² = 110 nF/km<o:p></o:p></td></tr><tr style="height: 31.5pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">0.50 mm² = 120 nF/km<o:p></o:p></td></tr><tr style="height: 15.75pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">0.75 mm² = 120 nF/km<o:p></o:p></td></tr><tr style="height: 15.75pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">1.00 mm² = 120 nF/km<o:p></o:p></td></tr><tr style="height: 15.75pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">1.50 mm² = 120 nF/km<o:p></o:p></td></tr><tr style="height: 15.75pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">2.50 mm² = 120 nF/km<o:p></o:p></td></tr><tr style="height: 31.5pt;"><td width="189" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">Operating temperature<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">-30°C ~ +80°C<o:p></o:p></td></tr><tr style="height: 31.5pt;"><td width="189" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">Smoke Density<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">IEC 61034-2 &amp; TS/DIN EN 50268-2<o:p></o:p></td></tr><tr style="height: 15.75pt;"><td width="189" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">Flame Test<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">IEC 60332-1-2 &amp; EN 50265-2-1<o:p></o:p></td></tr><tr style="height: 31.5pt;"><td width="189" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">Corrosive Gas Test<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">IEC 60754-1/2 &amp; TS/DIN EN 50267-2-3<o:p></o:p></td></tr><tr style="height: 15.75pt;"><td width="189" rowspan="2" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid black; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">min.&nbsp;Bending Radius<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">Fixed Fixed Laying 6,5 x D<o:p></o:p></td></tr><tr style="height: 15.75pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">Movable Flexible 15 x D<o:p></o:p></td></tr></tbody></table></div>

For use on computer systems, control equipments as control and signal cable.Nor for outdoor or subterranean use.Copper screen protects PVC cores.These cables are halogen free and flame retardant.

Cable structure
Conductor	IEC 60228 S 5 TS/DIN EN 60228 CLASS 5 Twisted electrolytic copper
Insulation	HFFR, HI2, VDE 0207-23
Stranding	Cores are twisted in layers at regular intervals
Insulation color coding	DIN 47100
Seperator	PES TAPE
Screen1	AL-PES TAPE
Screen2	Tinned copper braid
Sheath	HFFR, HM2, VDE 0207-24, RAL 7001 GRİ

Technicial Specifications
Conductor Resistance	0.14 mm² = 148 Ω.Km
	0.22 mm² = 96 Ω.Km
	0.25 mm² = 79.9 Ω.Km
	0.34 mm² = 56 Ω.Km
	0.50 mm² = 39 Ω.Km
	0.75 mm² = 26 Ω.Km
	1.00 mm² = 19.5 Ω.Km
	1.50 mm² = 13.3 Ω.Km
	2.50 mm² = 7.98 Ω.Km
Insulation Resistance	> 200 MΩ.Km
Operating voltage	0.14 mm² = 350 V
Operating voltage	≥ 0.22 mm² = 500 V
Effective Capacity	0.14 mm² = 90 nF/km
	0.22 mm² = 100 nF/km
	0.25 mm² = 100 nF/km
	0.34 mm² = 110 nF/km
	0.50 mm² = 120 nF/km
	0.75 mm² = 120 nF/km
	1.00 mm² = 120 nF/km
	1.50 mm² = 120 nF/km
	2.50 mm² = 120 nF/km
Operating temperature	-30°C ~ +80°C
Smoke Density	IEC 61034-2 & TS/DIN EN 50268-2
Flame Test	IEC 60332-1-2 & EN 50265-2-1
Corrosive Gas Test	IEC 60754-1/2 & TS/DIN EN 50267-2-3
min. Bending Radius	Fixed Fixed Laying 6,5 x D
min. Bending Radius	Movable Flexible 15 x D

Ürün adı

Kısa açıklama

Tam açıklama

تستخدم ككابلات تحكم واشارة في انظمة الكمبيوتر ومعدات تحكم الكترونية ولا تستخدم في البيئات الخارجية وتحت الارض وبفضل الشاشة النحاسية فهي مقاومة للتأثيرات الكهربائية الخارجية والشاشة النحاسية تحمي قلب PVC من خلال تغليفها . يتم استخدامها عندما لا تكون انبعاثات الغازات السامة مرغوبة ولا تنقل اللهب. <table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="rtl" border="1" style="table-layout: fixed; font-size: 11pt; font-family: Calibri; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="90"><col width="206"></colgroup><tbody><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;موصل&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">موصل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;IEC 60228 S 5 TS / DIN EN 60228 CLASS 5 النحاس المجدول كهربائياً&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">IEC 60228 S 5 TS / DIN EN 60228 CLASS 5 النحاس المجدول كهربائياً</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;عازلة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">عازلة</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;HFFR، HI2، VDE 0207-23&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">HFFR، HI2، VDE 0207-23</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;التواء&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">التواء</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الأوردة ملتوية في ثنايا بخطوات ثابتة.&nbsp;&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">الأوردة ملتوية في ثنايا بخطوات ثابتة.&nbsp;</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ألوان العازل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">ألوان العازل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ضجيج 47100&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">ضجيج 47100</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;شريط فاصل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">شريط فاصل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;PES TAPE&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">PES TAPE</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;العرض 1&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">العرض 1</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;AL-PES TAPE&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">AL-PES TAPE</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;العرض 2&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">العرض 2</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;جديلة نحاسية معلبة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">جديلة نحاسية معلبة</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;غطاء&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">غطاء</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;HFFR، HM2، VDE 0207-24، RAL 7001 GREY&nbsp;&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">HFFR، HM2، VDE 0207-24، RAL 7001 GREY&nbsp;</td></tr></tbody></table><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="rtl" border="1" style="table-layout: fixed; font-size: 11pt; font-family: Calibri; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="130"><col width="233"></colgroup><tbody><tr style="height: 21px;"><td dir="rtl" rowspan="9" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;مقاومة الموصل&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;"><div style="max-height: 189px;">مقاومة الموصل</div></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.14 مم² = 148 Ω.Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">0.14 مم² = 148 Ω.Km</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.22 مم² = 96 .Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">0.22 مم² = 96 .Km</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.25 مم² = 79.9 Ω.Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">0.25 مم² = 79.9 Ω.Km</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.34 مم² = 56 .Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">0.34 مم² = 56 .Km</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.50 مم² = 39 Ω.Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">0.50 مم² = 39 Ω.Km</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.75 مم² = 26 .Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">0.75 مم² = 26 .Km</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1.00 مم² = 19.5 Ω.Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">1.00 مم² = 19.5 Ω.Km</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1.50 مم² = 13.3 Ω.Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">1.50 مم² = 13.3 Ω.Km</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;2.50 مم² = 7.98 Ω.Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">2.50 مم² = 7.98 Ω.Km</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;مقاومة العزل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">مقاومة العزل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;> 200 متر مكعب&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">&gt; 200 متر مكعب</td></tr><tr style="height: 21px;"><td dir="rtl" rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;جهد التشغيل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;"><div style="max-height: 42px;">جهد التشغيل</div></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.14 مم² = 350 فولت&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">0.14 مم² = 350 فولت</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;≥&nbsp;&nbsp;0.22 مم² = 500 فولت&quot;}" data-sheets-textstyleruns="{&quot;1&quot;:0}{&quot;1&quot;:1,&quot;2&quot;:{&quot;2&quot;:{&quot;1&quot;:2,&quot;2&quot;:3552822},&quot;3&quot;:&quot;Roboto&quot;,&quot;4&quot;:12}}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Arial; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(77, 81, 86); text-align: center;">≥&nbsp;&nbsp;0.22 مم² = 500 فولت</td></tr><tr style="height: 21px;"><td dir="rtl" rowspan="9" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;القدرة الفعالة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;"><div style="max-height: 189px;">القدرة الفعالة</div></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.14 مم² = 90 نانوفاراد / كم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">0.14 مم² = 90 نانوفاراد / كم</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.22 مم² = 100 نيوتن / كم.&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">0.22 مم² = 100 نيوتن / كم.</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.25 مم² = 100 نيوتن / كم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">0.25 مم² = 100 نيوتن / كم</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.34 مم² = 110 نيوتن / كم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">0.34 مم² = 110 نيوتن / كم</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.50 مم² = 120 نانوفاراد / كم 0.75 مم² = 120 نيوتن&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">0.50 مم² = 120 نانوفاراد / كم 0.75 مم² = 120 نيوتن</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;/ كم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">/ كم</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1.00 مم² = 120 نيوتن / كم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">1.00 مم² = 120 نيوتن / كم</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1.50 مم² = 120 nF / km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">1.50 مم² = 120 nF / km</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;2.50 مم² = 120 nF / km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">2.50 مم² = 120 nF / km</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;درجة حرارة التشغيل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">درجة حرارة التشغيل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-30 درجة مئوية ~ + 80 درجة مئوية&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">-30 درجة مئوية ~ + 80 درجة مئوية</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;كثافة الدخان&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">كثافة الدخان</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;IEC 61034-2 &amp; TS / DIN EN 50268-2&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">IEC 61034-2 &amp; TS / DIN EN 50268-2</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;اختبار اللهب&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">اختبار اللهب</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;IEC 60332-1-2 و EN 50265-2-1&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">IEC 60332-1-2 و EN 50265-2-1</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;اختبار الغازات المسببة للتآكل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">اختبار الغازات المسببة للتآكل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;IEC 60754-1 / 2 &amp; TS / DIN EN 50267-2-3&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">IEC 60754-1 / 2 &amp; TS / DIN EN 50267-2-3</td></tr><tr style="height: 21px;"><td dir="rtl" rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;دقيقة.&nbsp;الانحناء الشعاع&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;"><div style="max-height: 42px;">دقيقة.&nbsp;الانحناء الشعاع</div></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ثابت ثابت وضع 6.5 × د&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">ثابت ثابت وضع 6.5 × د</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;المنقولة المرنة 15 × د&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">المنقولة المرنة 15 × د</td></tr></tbody></table><div align="center"></div>

تستخدم ككابلات تحكم واشارة في انظمة الكمبيوتر ومعدات تحكم الكترونية ولا تستخدم في البيئات الخارجية وتحت الارض وبفضل الشاشة النحاسية فهي مقاومة للتأثيرات الكهربائية الخارجية والشاشة النحاسية تحمي قلب PVC من خلال تغليفها . يتم استخدامها عندما لا تكون انبعاثات الغازات السامة مرغوبة ولا تنقل اللهب.

موصل	IEC 60228 S 5 TS / DIN EN 60228 CLASS 5 النحاس المجدول كهربائياً
عازلة	HFFR، HI2، VDE 0207-23
التواء	الأوردة ملتوية في ثنايا بخطوات ثابتة.
ألوان العازل	ضجيج 47100
شريط فاصل	PES TAPE
العرض 1	AL-PES TAPE
العرض 2	جديلة نحاسية معلبة
غطاء	HFFR، HM2، VDE 0207-24، RAL 7001 GREY

مقاومة الموصل	0.14 مم² = 148 Ω.Km
	0.22 مم² = 96 .Km
	0.25 مم² = 79.9 Ω.Km
	0.34 مم² = 56 .Km
	0.50 مم² = 39 Ω.Km
	0.75 مم² = 26 .Km
	1.00 مم² = 19.5 Ω.Km
	1.50 مم² = 13.3 Ω.Km
	2.50 مم² = 7.98 Ω.Km
مقاومة العزل	> 200 متر مكعب
جهد التشغيل	0.14 مم² = 350 فولت
جهد التشغيل	≥ 0.22 مم² = 500 فولت
القدرة الفعالة	0.14 مم² = 90 نانوفاراد / كم
	0.22 مم² = 100 نيوتن / كم.
	0.25 مم² = 100 نيوتن / كم
	0.34 مم² = 110 نيوتن / كم
	0.50 مم² = 120 نانوفاراد / كم 0.75 مم² = 120 نيوتن
	/ كم
	1.00 مم² = 120 نيوتن / كم
	1.50 مم² = 120 nF / km
	2.50 مم² = 120 nF / km
درجة حرارة التشغيل	-30 درجة مئوية ~ + 80 درجة مئوية
كثافة الدخان	IEC 61034-2 & TS / DIN EN 50268-2
اختبار اللهب	IEC 60332-1-2 و EN 50265-2-1
اختبار الغازات المسببة للتآكل	IEC 60754-1 / 2 & TS / DIN EN 50267-2-3
دقيقة. الانحناء الشعاع	ثابت ثابت وضع 6.5 × د
دقيقة. الانحناء الشعاع	المنقولة المرنة 15 × د

Ürün adı

Kısa açıklama

Tam açıklama

Bilgisayar sistemlerinde, elektronik kontrol ekipmanlarında kontrol ve sinyal kablosu olarak kullanılırlar.Harici ortamlarda ve toprak altında kullanılmazlar.Bakır ekranın sayesinde dışarıdan gelecek elektriksel etkilere karşı dayanıklıdır ve bakır ekran PVC damarı sararak korumaktadır. Zehirli gaz çıkartmasının istenmediği yerlerde kullanılırlar ve alevi iletmezler.<div align="center">

<table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="329" style="width: 247pt;">
 <tbody><tr style="mso-yfti-irow:0;mso-yfti-firstrow:yes;height:31.5pt">
 <td width="329" nowrap="" colspan="2" style="width: 247pt; border-width: 1pt; border-style: solid; border-color: windowtext; padding: 0cm 5.4pt; height: 31.5pt;">
 Kablo yapısı<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:1;height:47.25pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">
 İletken<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">
 IEC 60228 S 5 TS/DIN
 EN 60228 SINIF 5 Elektrolitik bükülü bakır<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:2;height:15.75pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 İzolasyon<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 HFFR, HI2, VDE 0207-23<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:3;height:31.5pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Büküm<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Damarlar, sabit
 adımlarla katlar halinde bükülür.&nbsp;<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:4;height:31.5pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Yalıtkan Renkleri<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 DIN 47100<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:5;height:15.75pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Ayırıcı Bant<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 PES BANT<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:6;height:15.75pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Ekran1<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 AL-PES BANT<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:7;height:15.75pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Ekran2<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Kalaylı bakır örgü<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:8;mso-yfti-lastrow:yes;height:31.5pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Kılıf<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 HFFR, HM2, VDE
 0207-24, RAL 7001 GRİ&nbsp;<o:p></o:p>
 </td>
 </tr>
</tbody></table></div><div align="center"><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="329" style="width: 247pt;"><tbody> </tbody></table></div><div align="center"><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="329" style="width: 247pt;"><tbody><div align="center">

<table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="415" style="width: 311.6pt;">
 <tbody><tr style="mso-yfti-irow:0;mso-yfti-firstrow:yes;height:30.0pt">
 <td width="415" nowrap="" colspan="2" style="width: 311.6pt; border-top: 1pt solid windowtext; border-right: 1pt solid windowtext; border-left: 1pt solid windowtext; border-bottom: none; padding: 0cm 5.4pt; height: 30pt;">
 <span style="mso-ascii-font-family:Calibri;mso-fareast-font-family:
 &quot;Times New Roman&quot;;mso-hansi-font-family:Calibri;mso-bidi-font-family:Calibri;
 color:black;mso-font-kerning:0pt;mso-ligatures:none">Teknik Özellikler<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:1;height:47.25pt">
 <td width="127" rowspan="9" style="width: 95pt; border-width: 1pt; border-style: solid; border-color: windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">
 İletken Direnci<o:p></o:p>
 </td>
 <td width="289" style="width: 216.6pt; border-top: 1pt solid windowtext; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 47.25pt;">
 0,14 mm² = 148 Ω.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:2;height:15.75pt">
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 0,22 mm² = 96 Ω.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:3;height:31.5pt">
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 0,25 mm² = 79,9 Ω.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:4;height:31.5pt">
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 0,34 mm² = 56 Ω.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:5;height:15.75pt">
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 0,50 mm² = 39 Ω.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:6;height:15.75pt">
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 0,75 mm² = 26 Ω.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:7;height:15.75pt">
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 1,00 mm² = 19,5 Ω.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:8;height:31.5pt">
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 1,50 mm² = 13,3 Ω.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:9;height:15.75pt">
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 2,50 mm² = 7,98 Ω.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:10;height:15.75pt">
 <td width="127" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Yalıtım Direnci<o:p></o:p>
 </td>
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 &gt; 200 MΩ.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:11;height:15.75pt">
 <td width="127" rowspan="2" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Çalışma Gerilimi<o:p></o:p>
 </td>
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 0,14 mm² = 350 V<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:12;height:15.75pt">
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 ≥&nbsp;0,22 mm² = 500 V<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:13;height:15.75pt">
 <td width="127" rowspan="9" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Efektif Kapasite<o:p></o:p>
 </td>
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 0,14 mm² = 90 nF/km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:14;height:15.75pt">
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 0,22 mm² = 100 nF/km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:15;height:15.75pt">
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 0,25 mm² = 100 nF/km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:16;height:15.75pt">
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 0,34 mm² = 110 nF/km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:17;height:31.5pt">
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 0,50 mm² = 120 nF/km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:18;height:15.75pt">
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 0,75 mm² = 120 nF/km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:19;height:15.75pt">
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 1,00 mm² = 120 nF/km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:20;height:15.75pt">
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 1,50 mm² = 120 nF/km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:21;height:15.75pt">
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 2,50 mm² = 120 nF/km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:22;height:31.5pt">
 <td width="127" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Çalışma Sıcaklığı<o:p></o:p>
 </td>
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 -30 ° C ~ + 80 ° C<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:23;height:31.5pt">
 <td width="127" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Duman Yoğunluğu<o:p></o:p>
 </td>
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 IEC 61034-2 &amp;
 TS/DIN EN 50268-2<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:24;height:15.75pt">
 <td width="127" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Alev Testi<o:p></o:p>
 </td>
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 IEC 60332-1-2 &amp; EN
 50265-2-1<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:25;height:31.5pt">
 <td width="127" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 Korozif Gaz Testi<o:p></o:p>
 </td>
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 31.5pt;">
 IEC 60754-1/2 &amp;
 TS/DIN EN 50267-2-3<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:26;height:15.75pt">
 <td width="127" rowspan="2" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Min. Bükülme Yarıçapı<o:p></o:p>
 </td>
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Sabit Fixed Laying 6,5
 x D<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:27;mso-yfti-lastrow:yes;height:15.75pt">
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15.75pt;">
 Hareketli Flexible 15
 x D<o:p></o:p>
 </td>
 </tr>
</tbody></table>

</div></tbody></table>

</div>

Bilgisayar sistemlerinde, elektronik kontrol ekipmanlarında kontrol ve sinyal kablosu olarak kullanılırlar.Harici ortamlarda ve toprak altında kullanılmazlar.Bakır ekranın sayesinde dışarıdan gelecek elektriksel etkilere karşı dayanıklıdır ve bakır ekran PVC damarı sararak korumaktadır. Zehirli gaz çıkartmasının istenmediği yerlerde kullanılırlar ve alevi iletmezler.

Kablo yapısı
İletken	IEC 60228 S 5 TS/DIN EN 60228 SINIF 5 Elektrolitik bükülü bakır
İzolasyon	HFFR, HI2, VDE 0207-23
Büküm	Damarlar, sabit adımlarla katlar halinde bükülür.
Yalıtkan Renkleri	DIN 47100
Ayırıcı Bant	PES BANT
Ekran1	AL-PES BANT
Ekran2	Kalaylı bakır örgü
Kılıf	HFFR, HM2, VDE 0207-24, RAL 7001 GRİ

Teknik Özellikler
İletken Direnci	0,14 mm² = 148 Ω.Km
	0,22 mm² = 96 Ω.Km
	0,25 mm² = 79,9 Ω.Km
	0,34 mm² = 56 Ω.Km
	0,50 mm² = 39 Ω.Km
	0,75 mm² = 26 Ω.Km
	1,00 mm² = 19,5 Ω.Km
	1,50 mm² = 13,3 Ω.Km
	2,50 mm² = 7,98 Ω.Km
Yalıtım Direnci	> 200 MΩ.Km
Çalışma Gerilimi	0,14 mm² = 350 V
Çalışma Gerilimi	≥ 0,22 mm² = 500 V
Efektif Kapasite	0,14 mm² = 90 nF/km
	0,22 mm² = 100 nF/km
	0,25 mm² = 100 nF/km
	0,34 mm² = 110 nF/km
	0,50 mm² = 120 nF/km
	0,75 mm² = 120 nF/km
	1,00 mm² = 120 nF/km
	1,50 mm² = 120 nF/km
	2,50 mm² = 120 nF/km
Çalışma Sıcaklığı	-30 ° C ~ + 80 ° C
Duman Yoğunluğu	IEC 61034-2 & TS/DIN EN 50268-2
Alev Testi	IEC 60332-1-2 & EN 50265-2-1
Korozif Gaz Testi	IEC 60754-1/2 & TS/DIN EN 50267-2-3
Min. Bükülme Yarıçapı	Sabit Fixed Laying 6,5 x D
Min. Bükülme Yarıçapı	Hareketli Flexible 15 x D

Ürün adı

Kısa açıklama

Tam açıklama

HTML düzenlemek için tıklayın...

Ürün adı

Kısa açıklama

Tam açıklama

HTML düzenlemek için tıklayın...

SKU

Üretici parça numarası

Global Ticari Öge Numarası

Gümrük Tarife Numarası

Ürün durumu

Menşe Ülke

Yönetici yorumu

Ürün etiketleri

Uygun başlangıç tarihi

Geçerli bitiş tarihi

Müşteri değerlendirmelerine izin ver

Anasayfada göster

Görüntüleme sırası

Mağazalar ile sınırlı

Müşteri rolleriyle sınırlıdır

Diğer ürünlerin sepete eklenmesi gerekmektedir

Gerekli ürün numaraları

Bu ürünleri otomatik olarak sepete ekle

Hediye kartıdır

Hediye kartı türü

Tekrarlayan ürün

Döngü uzunluğu

Döngü süresi

Tüm döngüler

Nakliye etkin

Teslimat zamanı

Ücretsiz nakliye

Ek nakliye ücreti

USD

Miktar birimi

Product Unit Id

Ağırlık

milliliter

Uzunluk

centimeter

Genişlik

centimeter

Yükseklik

centimeter

Box Weight

Item Count In Box

Box Price

USD

Boxes Count In Container

Container Price

USD

Vergiden muaf

Vergi kategorisi

Elektronik Servis Olma

Add Video

Seçenekler

Galeriden ilk resmi dışa aktar

Yeni bir resim ekle

Dosya yükle

Ana medya dosyası


Başlık etiketi

Meta Açıklaması

Anahtar Kelimeler

URL takma adı

Hepsini göster (4)

Başlık etiketi

Meta Açıklaması

Anahtar Kelimeler

URL takma adı

Başlık etiketi

Meta Açıklaması

Anahtar Kelimeler

URL takma adı

Başlık etiketi

Meta Açıklaması

Anahtar Kelimeler

URL takma adı

Başlık etiketi

Meta Açıklaması

Anahtar Kelimeler

URL takma adı

Başlık etiketi

Meta Açıklaması

Anahtar Kelimeler

URL takma adı

İndir

İndirilebilir ürün

Dosyayı indir

Dosya yükle

Versiyon

Seçenekler

Sınırsız indirme

Maksimum indirme

Gün sayısı

Gün

İndirme aktivasyon türü

Kullanıcı anlaşmasına sahip olma

Kullanıcı anlaşması metni

HTML düzenlemek için tıklayın...

Örnek indirme dosyası var

Örnek indirme dosyası

Dosya yükle
