For use as a data and signal cable in computer systems and electronic control equipment.Not for outdoor or subterranean use.
The copper screen is resistant to external electrical effects and is wrapped around the PVC cores for additional protection. The double helix structure allows the cable to maintain its electrical capacity capacity in electrically dense areas.
This cable is flame retardant and is ideal for use where toxic gas emission must be avoided.

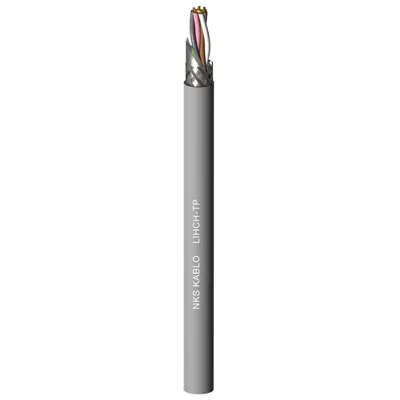

Cable structure
Conductor
IEC 60228 S 5 TS/DIN EN 60228 CLASS 5 Twisted electrolytic copper
Insulation
HFFR, HI2, VDE 0207-23
Stranding
Two cores are twisted as pairs at Stranding regular intervals.
Insulation color coding
DIN 47100
Seperator
PES TAPE
Screen
Tinned copper braid
Sheath
HFFR, HM2, VDE 0207-24, RAL 7001 GRİ
Technicial Specifications
Conductor Resistance
0.14 mm² = 148 Ω.Km
0.22 mm² = 96 Ω.Km
0.25 mm² = 79.9 Ω.Km
0.34 mm² = 56 Ω.Km
0.50 mm² = 39 Ω.Km
0.75 mm² = 26 Ω.Km
1.00 mm² = 19.5 Ω.Km
1.50 mm² = 13.3 Ω.Km
2.50 mm² = 7.98 Ω.Km
Insulation Resistance
> 200 MΩ.Km
Operating voltage
0.14 mm² = 350 V
≥ 0.22 mm² = 500 V
Effective Capacity
0.14 mm² = 90 nF/km
0.22 mm² = 100 nF/km
0.25 mm² = 100 nF/km
0.34 mm² = 110 nF/km
0.50 mm² = 120 nF/km
0.75 mm² = 120 nF/km
1.00 mm² = 120 nF/km
1.50 mm² = 120 nF/km
2.50 mm² = 120 nF/km
Operating temperature
-30°C ~ +80°C
Smoke Density
IEC 61034-2 & TS/DIN EN 50268-2
Flame Test
IEC 60332-1-2 & EN 50265-2-1
Corrosive Gas Test
IEC 60754-1/2 & TS/DIN EN 50267-2-3
min. Bending Radius
Fixed Fixed Laying 6,5 x D
Movable Flexible 15 x D
The copper screen is resistant to external electrical effects and is wrapped around the PVC cores for additional protection
. The double helix structure allows the cable to maintain its electrical capacity capacity in electrically dense areas.This cable is flame retardant and is ideal for use where toxic gas emission must be avoided.
يتم استخدامها ككابلات تحكم وإشارة في أنظمة الكمبيوتر ومعدات التحكم الإلكترونية. لا يتم استخدامها في البيئات الخارجية وتحت الأرض. بفضل الشاشة النحاسية ، فهي مقاومة للتأثيرات الكهربائية الخارجية والشاشة النحاسية تحمي نوى PVC من خلال تغليفها. بفضل هيكلها الحلزوني المزدوج ، فهي تحمي القدرة الكهربائية. يتم استخدامها عندما لا تكون انبعاثات الغازات السامة مرغوبة ولا تنقل اللهب.
Bilgisayar sistemlerinde, elektronik kontrol ekipmanlarında kontrol ve sinyal kablosu olarak kullanılırlar.Harici ortamlarda ve toprak altında kullanılmazlar.Bakır ekranın sayesinde dışarıdan gelecek elektriksel etkilere karşı dayanıklıdır ve bakır ekran PVC damarları sararak korumaktadır.
Çift sarmal yapısıyla elektriksel kapasiteyi korumasını sağlar. Zehirli gaz çıkartmasının istenmediği yerlerde kullanılırlar ve alevi iletmezler.
Kablo yapısı
İletken
IEC 60228 Sınıf 5 TS/DIN EN 60228 SINIF 5 Elektrolitik bükülü bakır
İzolasyon
Büküm
iki damar çift olacak sekilde sabit adımlarla bükülür.
Yalıtkan Renkleri
Ayırıcı Bant
PES BANT
Ekran
Kalaylı bakır örgü
Kılıf
Teknik Özellikler
İletken Direnci
0,14 mm² = 148 Ω.Km
0,22 mm² = 96 Ω.Km
0,25 mm² = 79,9 Ω.Km
0,34 mm² = 56 Ω.Km
0,50 mm² = 39 Ω.Km
0,75 mm² = 26 Ω.Km
1,00 mm² = 19,5 Ω.Km
1,50 mm² = 13,3 Ω.Km
2,50 mm² = 7,98 Ω.Km
Yalıtım Direnci
Çalışma Gerilimi
0,14 mm² = 350 V
≥ 0,22 mm² = 500 V
Efektif Kapasite
0,14 mm² = 90 nF/km
0,22 mm² = 100 nF/km
0,25 mm² = 100 nF/km
0,34 mm² = 110 nF/km
0,50 mm² = 120 nF/km
0,75 mm² = 120 nF/km
1,00 mm² = 120 nF/km
1,50 mm² = 120 nF/km
2,50 mm² = 120 nF/km
Çalışma Sıcaklığı
-30 ° C ~ + 80 ° C
Duman Yoğunluğu
Alev Testi
Korozif Gaz Testi
Min. Bükülme Yarıçapı
Sabit Fixed Laying 6,5 x D
Hareketli Flexible 15 x D
