Product name

Short description

Full description

For use as signal and control cables for electronic control equipment and computer systems. Ideal for use where toxic gas emission must be avoided. These cables are flame retardant. Not for outdoor and subterranean use.<div align="center">

<table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;">
 <tbody><tr style="mso-yfti-irow:0;mso-yfti-firstrow:yes;height:31.5pt">
 <td width="347" nowrap="" colspan="2" style="width: 260pt; border-width: 1pt; border-style: solid; border-color: windowtext; padding: 0cm 5.4pt; height: 31.5pt;">
 Cable structure<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:1;height:45.0pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 45pt;">
 Conductor<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 45pt;">
 IEC 60228 S 5 TS/DIN
 EN 60228 CLASS 5 Twisted electrolytic copper<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:2;height:15.0pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 Insulation<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 HFFR, HI2, VDE 0207-23<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:3;height:30.0pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 Stranding<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 Cores are twisted in
 layers at regular intervals<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:4;height:30.0pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 Insulation color
 coding<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 DIN 47100<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:5;height:75.0pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 75pt;">
 Insulation color
 coding&nbsp;(LIYY-OZ &amp; LIYY-JZ için)<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 75pt;">
 DIN VDE 0293; TSE EN
 50334;&nbsp;White&nbsp;numerical code on black insulation<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:6;height:15.0pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 Seperator<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 PES TAPE<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:7;mso-yfti-lastrow:yes;height:30.0pt">
 <td width="108" style="width: 81pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 Sheath<o:p></o:p>
 </td>
 <td width="239" style="width: 179pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 HFFR, HM2, VDE
 0207-24, RAL 7001 GRİ&nbsp;<o:p></o:p>
 </td>
 </tr>
</tbody></table></div><div align="center"> <table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody></tbody></table></div><div align="center"><div align="center">

</div><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody></tbody></table><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="464" style="width: 348pt;">
 <tbody><tr style="mso-yfti-irow:0;mso-yfti-firstrow:yes;height:30.0pt">
 <td width="464" nowrap="" colspan="2" style="width: 348pt; border-width: 1pt; border-style: solid; border-color: windowtext; padding: 0cm 5.4pt; height: 30pt;">
 <span style="mso-ascii-font-family:Calibri;mso-fareast-font-family:
 &quot;Times New Roman&quot;;mso-hansi-font-family:Calibri;mso-bidi-font-family:Calibri;
 color:black;mso-font-kerning:0pt;mso-ligatures:none">Technicial
 Specifications<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:1;height:45.0pt">
 <td width="189" rowspan="9" style="width: 142pt; border-top: none; border-left: 1pt solid windowtext; border-bottom: 1pt solid black; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 45pt;">
 Conductor Resistance<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 45pt;">
 0.14 mm² = 148 Ω.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:2;height:15.0pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 0.22 mm² = 96 Ω.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:3;height:30.0pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 0.25 mm² = 79.9 Ω.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:4;height:30.0pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 0.34 mm² = 56 Ω.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:5;height:75.0pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 75pt;">
 0.50 mm² = 39 Ω.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:6;height:15.0pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 0.75 mm² = 26 Ω.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:7;height:30.0pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 1.00 mm² = 19.5 Ω.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:8;height:15.0pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 1.50 mm² = 13.3 Ω.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:9;height:15.0pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 2.50 mm² = 7.98 Ω.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:10;height:15.0pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 Insulation Resistance<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 &gt; 200 MΩ / Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:11;height:15.0pt">
 <td width="189" rowspan="2" style="width: 142pt; border-top: none; border-left: 1pt solid windowtext; border-bottom: 1pt solid black; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 Operating voltage<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 0.14 mm² = 350 V<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:12;height:15.0pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 ≥ 0.22 mm² = 500 V<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:13;height:15.0pt">
 <td width="189" rowspan="9" style="width: 142pt; border-top: none; border-left: 1pt solid windowtext; border-bottom: 1pt solid black; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 Effective Capacity<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 0.14 mm² = 90 nF/km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:14;height:15.0pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 0.22 mm² = 100 nF/km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:15;height:15.0pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 0.25 mm² = 100 nF/km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:16;height:15.0pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 0.34 mm² = 110 nF/km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:17;height:30.0pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 0.50 mm² = 120 nF/km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:18;height:15.0pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 0.75 mm² = 120 nF/km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:19;height:15.0pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 1.00 mm² = 120 nF/km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:20;height:15.0pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 1.50 mm² = 120 nF/km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:21;height:15.0pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 2.50 mm² = 120 nF/km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:22;height:30.0pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 Operating temperature<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 -30°C ~ +80°C<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:23;height:30.0pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 Smoke Density<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 IEC 61034-2 &amp;
 TS/DIN EN 50268-2<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:24;height:30.0pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 Flame Test<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 IEC 60332-1-2 &amp; EN
 50266-2-4<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:25;height:30.0pt">
 <td width="189" style="width: 142pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 Corrosive Gas Test<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 IEC 60754-1/2 &amp;
 TS/DIN EN 50267-2-3<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:26;height:15.0pt">
 <td width="189" rowspan="2" style="width: 142pt; border-top: none; border-left: 1pt solid windowtext; border-bottom: 1pt solid black; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 min.&nbsp;Bending
 Radius<o:p></o:p>
 </td>
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 Fixed Fixed Laying 6,5
 x D&nbsp;<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:27;mso-yfti-lastrow:yes;height:75.0pt">
 <td width="275" style="width: 206pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 75pt;">
 Movable Flexible 15 x
 D<o:p></o:p>
 </td>
 </tr>
</tbody></table>

</div>

For use as signal and control cables for electronic control equipment and computer systems. Ideal for use where toxic gas emission must be avoided.

These cables are flame retardant. Not for outdoor and subterranean use.

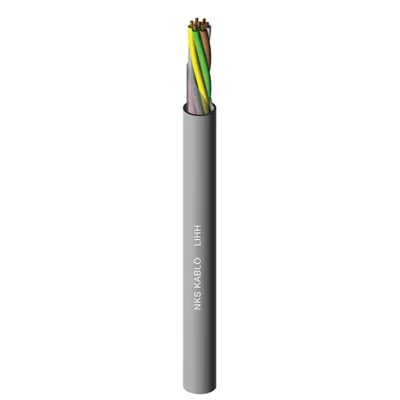

Cable structure
Conductor	IEC 60228 S 5 TS/DIN EN 60228 CLASS 5 Twisted electrolytic copper
Insulation	HFFR, HI2, VDE 0207-23
Stranding	Cores are twisted in layers at regular intervals
Insulation color coding	DIN 47100
Insulation color coding (LIYY-OZ & LIYY-JZ için)	DIN VDE 0293; TSE EN 50334; White numerical code on black insulation
Seperator	PES TAPE
Sheath	HFFR, HM2, VDE 0207-24, RAL 7001 GRİ

Technicial Specifications
Conductor Resistance	0.14 mm² = 148 Ω.Km
	0.22 mm² = 96 Ω.Km
	0.25 mm² = 79.9 Ω.Km
	0.34 mm² = 56 Ω.Km
	0.50 mm² = 39 Ω.Km
	0.75 mm² = 26 Ω.Km
	1.00 mm² = 19.5 Ω.Km
	1.50 mm² = 13.3 Ω.Km
	2.50 mm² = 7.98 Ω.Km
Insulation Resistance	> 200 MΩ / Km
Operating voltage	0.14 mm² = 350 V
Operating voltage	≥ 0.22 mm² = 500 V
Effective Capacity	0.14 mm² = 90 nF/km
	0.22 mm² = 100 nF/km
	0.25 mm² = 100 nF/km
	0.34 mm² = 110 nF/km
	0.50 mm² = 120 nF/km
	0.75 mm² = 120 nF/km
	1.00 mm² = 120 nF/km
	1.50 mm² = 120 nF/km
	2.50 mm² = 120 nF/km
Operating temperature	-30°C ~ +80°C
Smoke Density	IEC 61034-2 & TS/DIN EN 50268-2
Flame Test	IEC 60332-1-2 & EN 50266-2-4
Corrosive Gas Test	IEC 60754-1/2 & TS/DIN EN 50267-2-3
min. Bending Radius	Fixed Fixed Laying 6,5 x D
min. Bending Radius	Movable Flexible 15 x D

Product name

Short description

Full description

For use as signal and control cables for electronic control equipment and computer systems. Ideal for use where toxic gas emission must be avoided. These cables are flame retardant. Not for outdoor and subterranean use.<div align="center"><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody><tr style="height: 31.5pt;"><td width="347" nowrap="" colspan="2" style="border-width: 1pt; border-style: solid; border-color: windowtext; width: 260pt; padding: 0cm 5.4pt; height: 31.5pt;">Cable structure<o:p></o:p></td></tr><tr style="height: 45pt;"><td width="108" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 81pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 45pt;">Conductor<o:p></o:p></td><td width="239" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 179pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 45pt;">IEC 60228 S 5 TS/DIN EN 60228 CLASS 5 Twisted electrolytic copper<o:p></o:p></td></tr><tr style="height: 15pt;"><td width="108" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 81pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">Insulation<o:p></o:p></td><td width="239" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 179pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">HFFR, HI2, VDE 0207-23<o:p></o:p></td></tr><tr style="height: 30pt;"><td width="108" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 81pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">Stranding<o:p></o:p></td><td width="239" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 179pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">Cores are twisted in layers at regular intervals<o:p></o:p></td></tr><tr style="height: 30pt;"><td width="108" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 81pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">Insulation color coding<o:p></o:p></td><td width="239" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 179pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">DIN 47100<o:p></o:p></td></tr><tr style="height: 75pt;"><td width="108" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 81pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 75pt;">Insulation color coding&nbsp;(LIYY-OZ &amp; LIYY-JZ için)<o:p></o:p></td><td width="239" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 179pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 75pt;">DIN VDE 0293; TSE EN 50334;&nbsp;White&nbsp;numerical code on black insulation<o:p></o:p></td></tr><tr style="height: 15pt;"><td width="108" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 81pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">Seperator<o:p></o:p></td><td width="239" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 179pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">PES TAPE<o:p></o:p></td></tr><tr style="height: 30pt;"><td width="108" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 81pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">Sheath<o:p></o:p></td><td width="239" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 179pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">HFFR, HM2, VDE 0207-24, RAL 7001 GRİ&nbsp;<o:p></o:p></td></tr></tbody></table></div><div align="center"> <table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody></tbody></table></div><div align="center"><div align="center"></div><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="347" style="width: 260pt;"><tbody></tbody></table><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="464" style="width: 348pt;"><tbody><tr style="height: 30pt;"><td width="464" nowrap="" colspan="2" style="border-width: 1pt; border-style: solid; border-color: windowtext; width: 348pt; padding: 0cm 5.4pt; height: 30pt;">Technicial Specifications<o:p></o:p></td></tr><tr style="height: 45pt;"><td width="189" rowspan="9" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid black; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 45pt;">Conductor Resistance<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 45pt;">0.14 mm² = 148 Ω.Km<o:p></o:p></td></tr><tr style="height: 15pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">0.22 mm² = 96 Ω.Km<o:p></o:p></td></tr><tr style="height: 30pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">0.25 mm² = 79.9 Ω.Km<o:p></o:p></td></tr><tr style="height: 30pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">0.34 mm² = 56 Ω.Km<o:p></o:p></td></tr><tr style="height: 75pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 75pt;">0.50 mm² = 39 Ω.Km<o:p></o:p></td></tr><tr style="height: 15pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">0.75 mm² = 26 Ω.Km<o:p></o:p></td></tr><tr style="height: 30pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">1.00 mm² = 19.5 Ω.Km<o:p></o:p></td></tr><tr style="height: 15pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">1.50 mm² = 13.3 Ω.Km<o:p></o:p></td></tr><tr style="height: 15pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">2.50 mm² = 7.98 Ω.Km<o:p></o:p></td></tr><tr style="height: 15pt;"><td width="189" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">Insulation Resistance<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">&gt; 200 MΩ / Km<o:p></o:p></td></tr><tr style="height: 15pt;"><td width="189" rowspan="2" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid black; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">Operating voltage<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">0.14 mm² = 350 V<o:p></o:p></td></tr><tr style="height: 15pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">≥ 0.22 mm² = 500 V<o:p></o:p></td></tr><tr style="height: 15pt;"><td width="189" rowspan="9" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid black; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">Effective Capacity<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">0.14 mm² = 90 nF/km<o:p></o:p></td></tr><tr style="height: 15pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">0.22 mm² = 100 nF/km<o:p></o:p></td></tr><tr style="height: 15pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">0.25 mm² = 100 nF/km<o:p></o:p></td></tr><tr style="height: 15pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">0.34 mm² = 110 nF/km<o:p></o:p></td></tr><tr style="height: 30pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">0.50 mm² = 120 nF/km<o:p></o:p></td></tr><tr style="height: 15pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">0.75 mm² = 120 nF/km<o:p></o:p></td></tr><tr style="height: 15pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">1.00 mm² = 120 nF/km<o:p></o:p></td></tr><tr style="height: 15pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">1.50 mm² = 120 nF/km<o:p></o:p></td></tr><tr style="height: 15pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">2.50 mm² = 120 nF/km<o:p></o:p></td></tr><tr style="height: 30pt;"><td width="189" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">Operating temperature<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">-30°C ~ +80°C<o:p></o:p></td></tr><tr style="height: 30pt;"><td width="189" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">Smoke Density<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">IEC 61034-2 &amp; TS/DIN EN 50268-2<o:p></o:p></td></tr><tr style="height: 30pt;"><td width="189" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">Flame Test<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">IEC 60332-1-2 &amp; EN 50266-2-4<o:p></o:p></td></tr><tr style="height: 30pt;"><td width="189" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">Corrosive Gas Test<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">IEC 60754-1/2 &amp; TS/DIN EN 50267-2-3<o:p></o:p></td></tr><tr style="height: 15pt;"><td width="189" rowspan="2" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid black; border-left: 1pt solid windowtext; width: 142pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">min.&nbsp;Bending Radius<o:p></o:p></td><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">Fixed Fixed Laying 6,5 x D&nbsp;<o:p></o:p></td></tr><tr style="height: 75pt;"><td width="275" style="border-top: none; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; width: 206pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 75pt;">Movable Flexible 15 x D<o:p></o:p></td></tr></tbody></table></div>

For use as signal and control cables for electronic control equipment and computer systems. Ideal for use where toxic gas emission must be avoided.

These cables are flame retardant. Not for outdoor and subterranean use.

Cable structure
Conductor	IEC 60228 S 5 TS/DIN EN 60228 CLASS 5 Twisted electrolytic copper
Insulation	HFFR, HI2, VDE 0207-23
Stranding	Cores are twisted in layers at regular intervals
Insulation color coding	DIN 47100
Insulation color coding (LIYY-OZ & LIYY-JZ için)	DIN VDE 0293; TSE EN 50334; White numerical code on black insulation
Seperator	PES TAPE
Sheath	HFFR, HM2, VDE 0207-24, RAL 7001 GRİ

Technicial Specifications
Conductor Resistance	0.14 mm² = 148 Ω.Km
	0.22 mm² = 96 Ω.Km
	0.25 mm² = 79.9 Ω.Km
	0.34 mm² = 56 Ω.Km
	0.50 mm² = 39 Ω.Km
	0.75 mm² = 26 Ω.Km
	1.00 mm² = 19.5 Ω.Km
	1.50 mm² = 13.3 Ω.Km
	2.50 mm² = 7.98 Ω.Km
Insulation Resistance	> 200 MΩ / Km
Operating voltage	0.14 mm² = 350 V
Operating voltage	≥ 0.22 mm² = 500 V
Effective Capacity	0.14 mm² = 90 nF/km
	0.22 mm² = 100 nF/km
	0.25 mm² = 100 nF/km
	0.34 mm² = 110 nF/km
	0.50 mm² = 120 nF/km
	0.75 mm² = 120 nF/km
	1.00 mm² = 120 nF/km
	1.50 mm² = 120 nF/km
	2.50 mm² = 120 nF/km
Operating temperature	-30°C ~ +80°C
Smoke Density	IEC 61034-2 & TS/DIN EN 50268-2
Flame Test	IEC 60332-1-2 & EN 50266-2-4
Corrosive Gas Test	IEC 60754-1/2 & TS/DIN EN 50267-2-3
min. Bending Radius	Fixed Fixed Laying 6,5 x D
min. Bending Radius	Movable Flexible 15 x D

Product name

Short description

Full description

يتم استخدامه ككابلات إشارة وتحكم للتحكم الإلكتروني في أنظمة الكمبيوتر ، ومعدات التحكم الإلكترونية ، ومعدات الغازات السامة وأنظمة الكمبيوتر. يتم استخدامها في الأماكن المثالية للاستخدام حيث لا يكون الملصق مرغوبًا فيه ولا ينقلون اللهب. لا يتم استخدامها في البيئات الخارجية وتحت الأرض. <table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="rtl" border="1" style="table-layout: fixed; font-size: 11pt; font-family: Calibri; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="90"><col width="206"></colgroup><tbody><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;موصل&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">موصل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;IEC 60228 S 5 TS / DIN EN 60228 CLASS 5 النحاس المجدول كهربائياً&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">IEC 60228 S 5 TS / DIN EN 60228 CLASS 5 النحاس المجدول كهربائياً</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;عازلة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">عازلة</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;HFFR، HI2، VDE 0207-23&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">HFFR، HI2، VDE 0207-23</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;التواء&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">التواء</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;الأوردة ملتوية في ثنايا بخطوات ثابتة.&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">الأوردة ملتوية في ثنايا بخطوات ثابتة.</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ألوان العازل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">ألوان العازل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ضجيج 47100&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">ضجيج 47100</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ألوان العازل (لـ LIYY-OZ &amp; LIYY-JZ)&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">ألوان العازل (لـ LIYY-OZ &amp; LIYY-JZ)</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;DIN VDE 0293 ؛&nbsp;TSE EN 50334 ؛&nbsp;رقم أبيض مشفر على عازل أسود&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">DIN VDE 0293 ؛&nbsp;TSE EN 50334 ؛&nbsp;رقم أبيض مشفر على عازل أسود</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;شريط فاصل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">شريط فاصل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;PES TAPE&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">PES TAPE</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;غطاء&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">غطاء</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;HFFR، HM2، VDE 0207-24، RAL 7001 GREY&nbsp;&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">HFFR، HM2، VDE 0207-24، RAL 7001 GREY&nbsp;</td></tr></tbody></table><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin><google-sheets-html-origin style="color: rgb(0, 0, 0); font-size: medium;"></google-sheets-html-origin><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="rtl" border="1" style="table-layout: fixed; font-size: 11pt; font-family: Calibri; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="130"><col width="233"></colgroup><tbody><tr style="height: 21px;"><td dir="rtl" rowspan="9" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;مقاومة الموصل&quot;}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;"><div style="max-height: 189px;">مقاومة الموصل</div></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.14 مم² = 148 Ω.Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">0.14 مم² = 148 Ω.Km</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.22 مم² = 96 .Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">0.22 مم² = 96 .Km</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.25 مم² = 79.9 Ω.Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">0.25 مم² = 79.9 Ω.Km</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.34 مم² = 56 .Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">0.34 مم² = 56 .Km</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.50 مم² = 39 Ω.Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">0.50 مم² = 39 Ω.Km</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.75 مم² = 26 .Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">0.75 مم² = 26 .Km</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1.00 مم² = 19.5 Ω.Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">1.00 مم² = 19.5 Ω.Km</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1.50 مم² = 13.3 Ω.Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">1.50 مم² = 13.3 Ω.Km</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;2.50 مم² = 7.98 Ω.Km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">2.50 مم² = 7.98 Ω.Km</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;مقاومة العزل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">مقاومة العزل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;> 200 متر مكعب / كم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">&gt; 200 متر مكعب / كم</td></tr><tr style="height: 21px;"><td dir="rtl" rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;جهد التشغيل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;"><div style="max-height: 42px;">جهد التشغيل</div></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.14 مم² = 350 فولت&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">0.14 مم² = 350 فولت</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;≥ 0.22 مم² = 500 فولت&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">≥ 0.22 مم² = 500 فولت</td></tr><tr style="height: 21px;"><td dir="rtl" rowspan="9" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;القدرة الفعالة&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;"><div style="max-height: 189px;">القدرة الفعالة</div></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.14 مم² = 90 نانوفاراد / كم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">0.14 مم² = 90 نانوفاراد / كم</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.22 مم² = 100 نيوتن / كم.&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">0.22 مم² = 100 نيوتن / كم.</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.25 مم² = 100 نيوتن / كم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">0.25 مم² = 100 نيوتن / كم</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.34 مم² = 110 نيوتن / كم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">0.34 مم² = 110 نيوتن / كم</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;0.50 مم² = 120 نانوفاراد / كم 0.75 مم² = 120 نيوتن&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">0.50 مم² = 120 نانوفاراد / كم 0.75 مم² = 120 نيوتن</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;/ كم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">/ كم</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1.00 مم² = 120 نيوتن / كم&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">1.00 مم² = 120 نيوتن / كم</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;1.50 مم² = 120 nF / km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">1.50 مم² = 120 nF / km</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;2.50 مم² = 120 nF / km&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">2.50 مم² = 120 nF / km</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;درجة حرارة التشغيل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">درجة حرارة التشغيل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;-30 درجة مئوية ~ + 80 درجة مئوية&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">-30 درجة مئوية ~ + 80 درجة مئوية</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;كثافة الدخان&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">كثافة الدخان</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;IEC 61034-2 &amp; TS / DIN EN 50268-2&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">IEC 61034-2 &amp; TS / DIN EN 50268-2</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;اختبار اللهب&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">اختبار اللهب</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;IEC 60332-1-2 و EN 50266-2-4&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">IEC 60332-1-2 و EN 50266-2-4</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;اختبار الغازات المسببة للتآكل&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">اختبار الغازات المسببة للتآكل</td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;IEC 60754-1 / 2 &amp; TS / DIN EN 50267-2-3&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">IEC 60754-1 / 2 &amp; TS / DIN EN 50267-2-3</td></tr><tr style="height: 21px;"><td dir="rtl" rowspan="2" colspan="1" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;دقيقة.&nbsp;الانحناء الشعاع&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;"><div style="max-height: 42px;">دقيقة.&nbsp;الانحناء الشعاع</div></td><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;ثابت ثابت وضع 6.5 × د&nbsp;&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">ثابت ثابت وضع 6.5 × د&nbsp;</td></tr><tr style="height: 21px;"><td dir="rtl" data-sheets-value="{&quot;1&quot;:2,&quot;2&quot;:&quot;المنقولة المرنة 15 × د&quot;}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 0px 3px; vertical-align: middle; background-color: rgb(255, 255, 255); font-family: Roboto; font-size: 12pt; font-weight: normal; white-space: normal; overflow-wrap: break-word; color: rgb(54, 54, 54); text-align: center;">المنقولة المرنة 15 × د</td></tr></tbody></table><div align="center"></div>

يتم استخدامه ككابلات إشارة وتحكم للتحكم الإلكتروني في أنظمة الكمبيوتر ، ومعدات التحكم الإلكترونية ، ومعدات الغازات السامة وأنظمة الكمبيوتر. يتم استخدامها في الأماكن المثالية للاستخدام حيث لا يكون الملصق مرغوبًا فيه ولا ينقلون اللهب. لا يتم استخدامها في البيئات الخارجية وتحت الأرض.

موصل	IEC 60228 S 5 TS / DIN EN 60228 CLASS 5 النحاس المجدول كهربائياً
عازلة	HFFR، HI2، VDE 0207-23
التواء	الأوردة ملتوية في ثنايا بخطوات ثابتة.
ألوان العازل	ضجيج 47100
ألوان العازل (لـ LIYY-OZ & LIYY-JZ)	DIN VDE 0293 ؛ TSE EN 50334 ؛ رقم أبيض مشفر على عازل أسود
شريط فاصل	PES TAPE
غطاء	HFFR، HM2، VDE 0207-24، RAL 7001 GREY

مقاومة الموصل	0.14 مم² = 148 Ω.Km
	0.22 مم² = 96 .Km
	0.25 مم² = 79.9 Ω.Km
	0.34 مم² = 56 .Km
	0.50 مم² = 39 Ω.Km
	0.75 مم² = 26 .Km
	1.00 مم² = 19.5 Ω.Km
	1.50 مم² = 13.3 Ω.Km
	2.50 مم² = 7.98 Ω.Km
مقاومة العزل	> 200 متر مكعب / كم
جهد التشغيل	0.14 مم² = 350 فولت
جهد التشغيل	≥ 0.22 مم² = 500 فولت
القدرة الفعالة	0.14 مم² = 90 نانوفاراد / كم
	0.22 مم² = 100 نيوتن / كم.
	0.25 مم² = 100 نيوتن / كم
	0.34 مم² = 110 نيوتن / كم
	0.50 مم² = 120 نانوفاراد / كم 0.75 مم² = 120 نيوتن
	/ كم
	1.00 مم² = 120 نيوتن / كم
	1.50 مم² = 120 nF / km
	2.50 مم² = 120 nF / km
درجة حرارة التشغيل	-30 درجة مئوية ~ + 80 درجة مئوية
كثافة الدخان	IEC 61034-2 & TS / DIN EN 50268-2
اختبار اللهب	IEC 60332-1-2 و EN 50266-2-4
اختبار الغازات المسببة للتآكل	IEC 60754-1 / 2 & TS / DIN EN 50267-2-3
دقيقة. الانحناء الشعاع	ثابت ثابت وضع 6.5 × د
دقيقة. الانحناء الشعاع	المنقولة المرنة 15 × د

Product name

Short description

Full description

Bilgisayar sistemlerinde, elektronik kontrol ekipmanlarında For use as signal and control cables for electronic control kontrol ve sinyal kablosu olarak kullanılır.Zehirli gaz equipment and computer systems. Ideal for use where çıkartmasının istenmediği yerlerde kullanılırlar ve alevi iletmezler. Harici ortamlarda ve toprak altında kullanılmazlar.<div align="center">

<table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="329" style="width: 247pt;">
 <tbody><tr style="mso-yfti-irow:0;mso-yfti-firstrow:yes;height:31.5pt">
 <td width="329" nowrap="" colspan="2" style="width: 247pt; border-width: 1pt; border-style: solid; border-color: windowtext; padding: 0cm 5.4pt; height: 31.5pt;">
 Kablo yapısı<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:1;height:45.0pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 45pt;">
 İletken<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 45pt;">
 IEC 60228 S 5 TS/DIN
 EN 60228 SINIF 5 Elektrolitik bükülü bakır<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:2;height:15.0pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 İzolasyon<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 HFFR, HI2, VDE 0207-23<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:3;height:30.0pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 Büküm<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 Damarlar, sabit
 adımlarla katlar halinde bükülür.<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:4;height:30.0pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 Yalıtkan Renkleri<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 DIN 47100<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:5;height:75.0pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 75pt;">
 Yalıtkan
 Renkleri&nbsp;(LIYY-OZ &amp; LIYY-JZ için)<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 75pt;">
 DIN VDE 0293; TSE EN
 50334; Siyah&nbsp;yalıtkan üzerine beyaz numara kodlu<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:6;height:15.0pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 Ayırıcı Bant<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 PES BANT<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:7;mso-yfti-lastrow:yes;height:30.0pt">
 <td width="107" style="width: 80pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 Kılıf<o:p></o:p>
 </td>
 <td width="223" style="width: 167pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 HFFR, HM2, VDE
 0207-24, RAL 7001 GRİ&nbsp;<o:p></o:p>
 </td>
 </tr>
</tbody></table></div><div align="center"> <table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="329" style="width: 247pt;"><tbody></tbody></table></div><div align="center"><div align="center">

</div><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="329" style="width: 247pt;"><tbody></tbody></table><table class="MsoNormalTable" border="0" cellspacing="0" cellpadding="0" width="415" style="width: 311.6pt;">
 <tbody><tr style="mso-yfti-irow:0;mso-yfti-firstrow:yes;height:30.0pt">
 <td width="415" nowrap="" colspan="2" style="width: 311.6pt; border-top: 1pt solid windowtext; border-right: 1pt solid windowtext; border-left: 1pt solid windowtext; border-bottom: none; padding: 0cm 5.4pt; height: 30pt;">
 <span style="mso-ascii-font-family:Calibri;mso-fareast-font-family:
 &quot;Times New Roman&quot;;mso-hansi-font-family:Calibri;mso-bidi-font-family:Calibri;
 color:black;mso-font-kerning:0pt;mso-ligatures:none">Teknik Özellikler<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:1;height:45.0pt">
 <td width="127" rowspan="9" style="width: 95pt; border-width: 1pt; border-style: solid; border-color: windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 45pt;">
 İletken Direnci<o:p></o:p>
 </td>
 <td width="289" style="width: 216.6pt; border-top: 1pt solid windowtext; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 45pt;">
 0,14 mm² = 148 Ω.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:2;height:15.0pt">
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 0,22 mm² = 96 Ω.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:3;height:30.0pt">
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 0,25 mm² = 79,9 Ω.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:4;height:30.0pt">
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 0,34 mm² = 56 Ω.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:5;height:75.0pt">
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 75pt;">
 0,50 mm² = 39 Ω.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:6;height:15.0pt">
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 0,75 mm² = 26 Ω.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:7;height:30.0pt">
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 1,00 mm² = 19,5 Ω.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:8;height:15.0pt">
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 1,50 mm² = 13,3 Ω.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:9;height:15.0pt">
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 2,50 mm² = 7,98 Ω.Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:10;height:15.0pt">
 <td width="127" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 Yalıtım Direnci<o:p></o:p>
 </td>
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 &gt; 200 MΩ / Km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:11;height:15.0pt">
 <td width="127" rowspan="2" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 Çalışma Gerilimi<o:p></o:p>
 </td>
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 0,14 mm² = 350 V<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:12;height:15.0pt">
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 ≥ 0,22 mm² = 500 V<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:13;height:15.0pt">
 <td width="127" rowspan="9" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 Efektif Kapasite<o:p></o:p>
 </td>
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 0,14 mm² = 90 nF/km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:14;height:15.0pt">
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 0,22 mm² = 100 nF/km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:15;height:15.0pt">
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 0,25 mm² = 100 nF/km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:16;height:15.0pt">
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 0,34 mm² = 110 nF/km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:17;height:30.0pt">
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 0,50 mm² = 120 nF/km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:18;height:15.0pt">
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 0,75 mm² = 120 nF/km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:19;height:15.0pt">
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 1,00 mm² = 120 nF/km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:20;height:15.0pt">
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 1,50 mm² = 120 nF/km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:21;height:15.0pt">
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 2,50 mm² = 120 nF/km<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:22;height:30.0pt">
 <td width="127" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 Çalışma Sıcaklığı<o:p></o:p>
 </td>
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 -30 ° C ~ + 80 ° C<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:23;height:30.0pt">
 <td width="127" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 Duman Yoğunluğu<o:p></o:p>
 </td>
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 IEC 61034-2 &amp;
 TS/DIN EN 50268-2<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:24;height:30.0pt">
 <td width="127" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 Alev Testi<o:p></o:p>
 </td>
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 IEC 60332-1-2
 &amp;&nbsp; EN 50266-2-4<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:25;height:30.0pt">
 <td width="127" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 Korozif Gaz Testi<o:p></o:p>
 </td>
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 30pt;">
 IEC 60754-1/2 &amp;
 TS/DIN EN 50267-2-3<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:26;height:15.0pt">
 <td width="127" rowspan="2" style="width: 95pt; border-right: 1pt solid windowtext; border-bottom: 1pt solid windowtext; border-left: 1pt solid windowtext; border-top: none; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 Min. Bükülme Yarıçapı<o:p></o:p>
 </td>
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 15pt;">
 Sabit Fixed Laying 6,5
 x D&nbsp;<o:p></o:p>
 </td>
 </tr>
 <tr style="mso-yfti-irow:27;mso-yfti-lastrow:yes;height:75.0pt">
 <td width="289" style="width: 216.6pt; border-top: none; border-left: none; border-bottom: 1pt solid windowtext; border-right: 1pt solid windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial; padding: 0cm 5.4pt; height: 75pt;">
 Hareketli Flexible 15
 x D<o:p></o:p>
 </td>
 </tr>
</tbody></table>

</div>

Bilgisayar sistemlerinde, elektronik kontrol ekipmanlarında For use as signal and control cables for electronic control kontrol ve sinyal kablosu olarak kullanılır.Zehirli gaz equipment and computer systems.

Ideal for use where çıkartmasının istenmediği yerlerde kullanılırlar ve alevi iletmezler. Harici ortamlarda ve toprak altında kullanılmazlar.

Kablo yapısı
İletken	IEC 60228 S 5 TS/DIN EN 60228 SINIF 5 Elektrolitik bükülü bakır
İzolasyon	HFFR, HI2, VDE 0207-23
Büküm	Damarlar, sabit adımlarla katlar halinde bükülür.
Yalıtkan Renkleri	DIN 47100
Yalıtkan Renkleri (LIYY-OZ & LIYY-JZ için)	DIN VDE 0293; TSE EN 50334; Siyah yalıtkan üzerine beyaz numara kodlu
Ayırıcı Bant	PES BANT
Kılıf	HFFR, HM2, VDE 0207-24, RAL 7001 GRİ

Teknik Özellikler
İletken Direnci	0,14 mm² = 148 Ω.Km
	0,22 mm² = 96 Ω.Km
	0,25 mm² = 79,9 Ω.Km
	0,34 mm² = 56 Ω.Km
	0,50 mm² = 39 Ω.Km
	0,75 mm² = 26 Ω.Km
	1,00 mm² = 19,5 Ω.Km
	1,50 mm² = 13,3 Ω.Km
	2,50 mm² = 7,98 Ω.Km
Yalıtım Direnci	> 200 MΩ / Km
Çalışma Gerilimi	0,14 mm² = 350 V
Çalışma Gerilimi	≥ 0,22 mm² = 500 V
Efektif Kapasite	0,14 mm² = 90 nF/km
	0,22 mm² = 100 nF/km
	0,25 mm² = 100 nF/km
	0,34 mm² = 110 nF/km
	0,50 mm² = 120 nF/km
	0,75 mm² = 120 nF/km
	1,00 mm² = 120 nF/km
	1,50 mm² = 120 nF/km
	2,50 mm² = 120 nF/km
Çalışma Sıcaklığı	-30 ° C ~ + 80 ° C
Duman Yoğunluğu	IEC 61034-2 & TS/DIN EN 50268-2
Alev Testi	IEC 60332-1-2 & EN 50266-2-4
Korozif Gaz Testi	IEC 60754-1/2 & TS/DIN EN 50267-2-3
Min. Bükülme Yarıçapı	Sabit Fixed Laying 6,5 x D
Min. Bükülme Yarıçapı	Hareketli Flexible 15 x D

Product name

Short description

Full description

Click to edit HTML...

Product name

Short description

Full description

Click to edit HTML...

SKU

Manufacturer part number

GTIN (global trade item number)

Customs Tariff Number

Product condition

Country of Origin

Admin comment

Product tags

Available start date

Available end date

Allow customer reviews

Show on home page

Display order

Limited to stores

Limited to customer roles

Require other products are added to the cart

Required product IDs

Automatically add these products to the cart

Is gift card

Gift card type

Recurring product

Cycle length

Cycle period

Total cycles

Shipping enabled

Delivery time

Free shipping

Additional shipping charge

USD

Quantity unit

Product Unit Id

Weight

milliliter

Length

centimeter

Width

centimeter

Height

centimeter

Box Weight

Item Count In Box

Box Price

USD

Boxes Count In Container

Container Price

USD

Tax exempt

Tax category

Is Electronic Service

Add Video

Options

Exclude first image from gallery

Add a new picture

To upload files drop them here or click.

Main media file


Title tag

Meta description

Meta keywords

URL alias

Show all (4)

Title tag

Meta description

Meta keywords

URL alias

Title tag

Meta description

Meta keywords

URL alias

Title tag

Meta description

Meta keywords

URL alias

Title tag

Meta description

Meta keywords

URL alias

Title tag

Meta description

Meta keywords

URL alias

Download

Downloadable product

Download file

To upload files drop them here or click.

Version

Options

Unlimited downloads

Max. downloads

Number of days

Days

Download activation type

Has user agreement

User agreement text

Click to edit HTML...

Has sample download file

Sample download file

To upload files drop them here or click.
