Ürün bilgilerini düzenle -
0.6/1 Kv Power Cable
Önizleme
Kaydet
Kaydet ve Düzenlemeye Devam Et
Ürünü kopyala
Sil
ID
Oluşturulma tarihi
18.07.2024 16:26:47
Güncellenme tarihi
29.07.2024 10:41:00
Ürün sayfasının URL'si
https://www.alderishop.com/0-6/1-kv-pvc-zoleli-alueminyum-letkenli-gue-kablo-2/
Ürün tipi
Simple product
Grouped product
Bundled product
Yayınlanmış
görünürlük
Fully visible
In search results
On product detail pages
Not visible
Ürün şablonu
Default Product Template
Standart
English
العربية
Turkce
Russian (Russia)
السلوفاكية (سلوفاكيا)
Ürün adı
Kısa açıklama
Tam açıklama
<ul><li>Type: YAVV-R (TSE), NAYY (VDE), AL/PVC/PVC (BS)</li><li>Standards: TS IEC 60502-1, VDE 0276</li><li>Structure: Aluminum conductor, PVC insulation, PVC filling, PVC outer sheath</li><li>Places of Use: This cable, which is used as a mains lighting and power cable, is used internally, externally underground, and in cable ducts where high mechanical stresses occur.</li><li>Technical Data: Max. operating temperature 70 °C</li><li>Max. short circuit temperature 160°C</li><li>Minimum bending radius 12*D D:Cable outer diameter (mm)</li></ul><p><google-sheets-html-origin style=""></google-sheets-html-origin></p><google-sheets-html-origin style=""><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; width: 0px; border: none;"><colgroup><col width="95"><col width="100"><col width="140"><col width="118"><col width="125"><col width="86"><col width="130"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="4" data-sheets-value="{"1":2,"2":"Dimensions and Weights"}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: bottom; overflow-wrap: break-word; text-align: center;">Dimensions and Weights</td><td rowspan="1" colspan="3" data-sheets-value="{"1":2,"2":"Electrical Information"}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; overflow-wrap: break-word; text-align: center;">Electrical Information</td></tr><tr style="height: 21px;"><td rowspan="2" colspan="1" data-sheets-value="{"1":2,"2":"Nominal Cross Section"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; overflow-wrap: break-word; text-align: center;"><div style="max-height: 80px;">Nominal Cross Section</div></td><td rowspan="2" colspan="1" data-sheets-value="{"1":2,"2":"Outside Diameter Approx."}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; overflow-wrap: break-word; text-align: center;"><div style="max-height: 80px;">Outside Diameter Approx.</div></td><td rowspan="2" colspan="1" data-sheets-value="{"1":2,"2":"Net Weight Approx."}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; overflow-wrap: break-word; text-align: center;"><div style="max-height: 80px;">Net Weight Approx.</div></td><td rowspan="2" colspan="1" data-sheets-value="{"1":2,"2":"Conveying Reel Dimensions for 1000 m Cable"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; overflow-wrap: break-word; text-align: center;"><div style="max-height: 80px;">Conveying Reel Dimensions for 1000 m Cable</div></td><td rowspan="2" colspan="1" data-sheets-value="{"1":2,"2":"Conductor DC Resistance at 20 °C (Max.)"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; overflow-wrap: break-word; text-align: center;"><div style="max-height: 80px;">Conductor DC Resistance at 20 °C (Max.)</div></td><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"Current Carrying Capacity"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; overflow-wrap: break-word; text-align: center;">Current Carrying Capacity</td></tr><tr style="height: 59px;"><td rowspan="2" colspan="1" data-sheets-value="{"1":2,"2":"In soil (A)"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; overflow-wrap: break-word; text-align: center;"><div style="max-height: 80px;">In soil (A)</div></td><td rowspan="2" colspan="1" data-sheets-value="{"1":2,"2":"In the air (A)"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; overflow-wrap: break-word; text-align: center;"><div style="max-height: 80px;">In the air (A)</div></td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"mm 2"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; overflow-wrap: break-word; text-align: center;">mm 2</td><td data-sheets-value="{"1":2,"2":"mm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; overflow-wrap: break-word; text-align: center;">mm</td><td data-sheets-value="{"1":2,"2":"kg km"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; overflow-wrap: break-word; text-align: center;">kg km</td><td data-sheets-value="{"1":2,"2":"cm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; overflow-wrap: break-word; text-align: center;">cm</td><td data-sheets-value="{"1":2,"2":"ohm/km"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; overflow-wrap: break-word; text-align: center;">ohm/km</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"2x25 rm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">2x25 rm</td><td data-sheets-value="{"1":2,"2":"22,0"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">22,0</td><td data-sheets-value="{"1":3,"3":630}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">630</td><td data-sheets-value="{"1":3,"3":130}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">130</td><td data-sheets-value="{"1":3,"3":1200}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">1,200</td><td data-sheets-value="{"1":2,"2":"-"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">-</td><td data-sheets-value="{"1":3,"3":91}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">91</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"2x35 rm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">2x35 rm</td><td data-sheets-value="{"1":2,"2":"24,0"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">24,0</td><td data-sheets-value="{"1":3,"3":770}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">770</td><td data-sheets-value="{"1":3,"3":130}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">130</td><td data-sheets-value="{"1":3,"3":868}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">868</td><td data-sheets-value="{"1":2,"2":"-"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">-</td><td data-sheets-value="{"1":3,"3":113}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">113</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"2x50 rm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">2x50 rm</td><td data-sheets-value="{"1":2,"2":"28,0"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">28,0</td><td data-sheets-value="{"1":3,"3":1025}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">1025</td><td data-sheets-value="{"1":3,"3":150}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">150</td><td data-sheets-value="{"1":3,"3":641}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">641</td><td data-sheets-value="{"1":2,"2":"-"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">-</td><td data-sheets-value="{"1":3,"3":138}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">138</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"2x70 rm"}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">2x70 rm</td><td data-sheets-value="{"1":2,"2":"31,0"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">31,0</td><td data-sheets-value="{"1":3,"3":1320}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">1320</td><td data-sheets-value="{"1":3,"3":160}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">160</td><td data-sheets-value="{"1":3,"3":443}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">443</td><td data-sheets-value="{"1":2,"2":"-"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">-</td><td data-sheets-value="{"1":3,"3":174}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">174</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"2x95 rm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">2x95 rm</td><td data-sheets-value="{"1":2,"2":"35,0"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">35,0</td><td data-sheets-value="{"1":3,"3":1800}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">1800</td><td data-sheets-value="{"1":3,"3":180}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">180</td><td data-sheets-value="{"1":3,"3":320}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">320</td><td data-sheets-value="{"1":2,"2":"-"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">-</td><td data-sheets-value="{"1":3,"3":210}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">210</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"2x120 rm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">2x120 rm</td><td data-sheets-value="{"1":2,"2":"39,0"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">39,0</td><td data-sheets-value="{"1":3,"3":2150}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">2150</td><td data-sheets-value="{"1":3,"3":210}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">210</td><td data-sheets-value="{"1":3,"3":253}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">253</td><td data-sheets-value="{"1":2,"2":"-"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">-</td><td data-sheets-value="{"1":3,"3":244}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">244</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"2x150 rm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">2x150 rm</td><td data-sheets-value="{"1":2,"2":"43,0"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">43,0</td><td data-sheets-value="{"1":3,"3":2600}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">2600</td><td data-sheets-value="{"1":3,"3":220}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">220</td><td data-sheets-value="{"1":3,"3":206}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">206</td><td data-sheets-value="{"1":2,"2":"-"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">-</td><td data-sheets-value="{"1":3,"3":281}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">281</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"2x185 rm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">2x185 rm</td><td data-sheets-value="{"1":2,"2":"47,0"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">47,0</td><td data-sheets-value="{"1":3,"3":3250}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">3250</td><td data-sheets-value="{"1":3,"3":230}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">230</td><td data-sheets-value="{"1":3,"3":164}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">164</td><td data-sheets-value="{"1":2,"2":"-"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">-</td><td data-sheets-value="{"1":3,"3":320}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">320</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"2x240 rm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">2x240 rm</td><td data-sheets-value="{"1":2,"2":"53,0"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">53,0</td><td data-sheets-value="{"1":3,"3":4100}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">4100</td><td data-sheets-value="{"1":3,"3":240}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">240</td><td data-sheets-value="{"1":3,"3":125}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">125</td><td data-sheets-value="{"1":2,"2":"-"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">-</td><td data-sheets-value="{"1":3,"3":378}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">378</td></tr></tbody></table></google-sheets-html-origin>
Type: YAVV-R (TSE), NAYY (VDE), AL/PVC/PVC (BS)
Standards: TS IEC 60502-1, VDE 0276

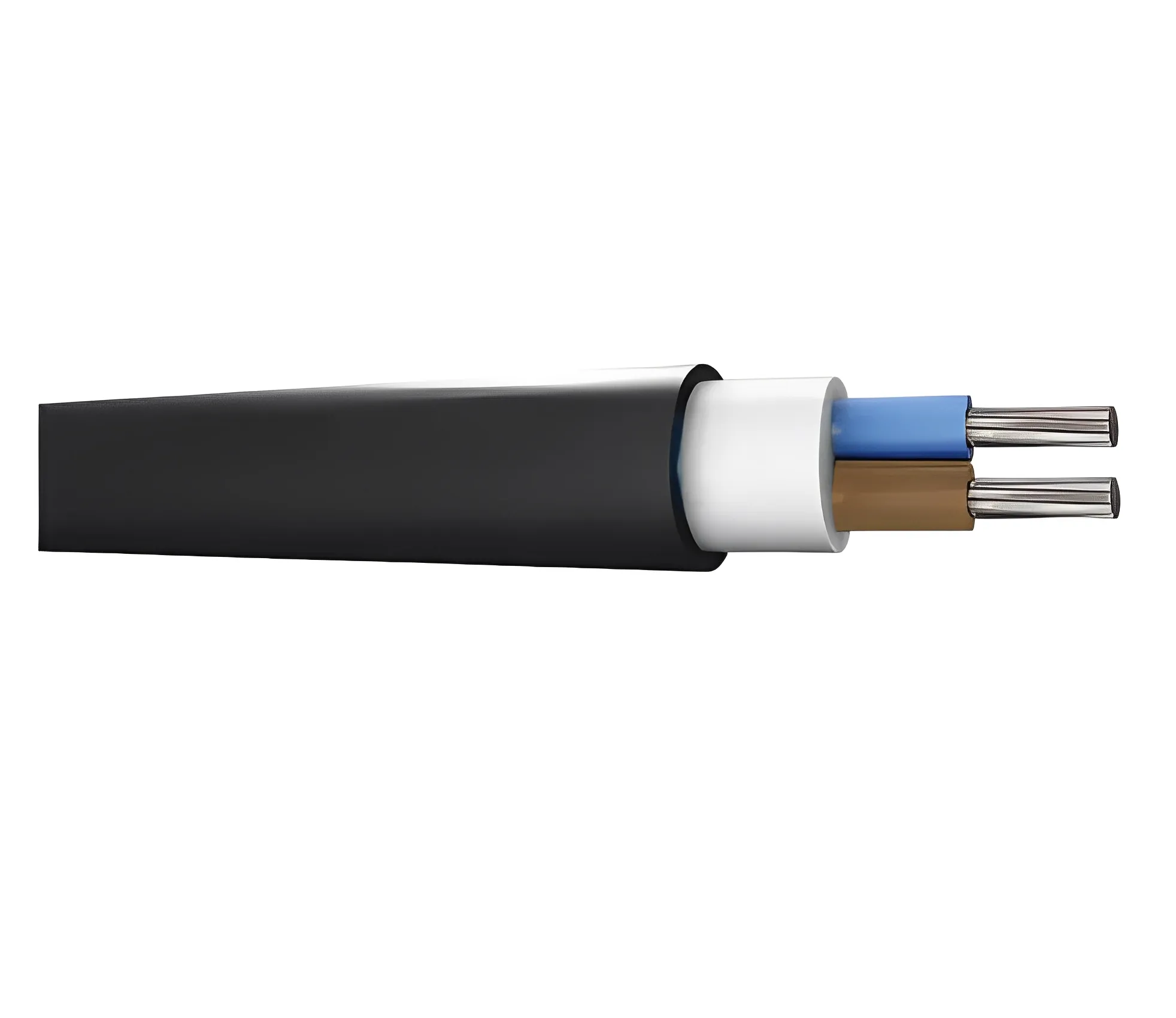

Structure: Aluminum conductor, PVC insulation, PVC filling, PVC outer sheath
Places of Use: This cable, which is used as a mains lighting and power cable, is used internally, externally underground, and in cable ducts where high mechanical stresses occur.
Technical Data: Max. operating temperature 70 °C
Max. short circuit temperature 160°C
Minimum bending radius 12*D D:Cable outer diameter (mm)
Dimensions and Weights
Electrical Information
Nominal Cross Section
Outside Diameter Approx.
Net Weight Approx.
Conveying Reel Dimensions for 1000 m Cable
Conductor DC Resistance at 20 °C (Max.)
Current Carrying Capacity
In soil (A)
In the air (A)
mm 2
mm
kg km
cm
ohm/km
2x25 rm
22,0
630
130
1,200
-
91
2x35 rm
24,0
770
130
868
-
113
2x50 rm
28,0
1025
150
641
-
138
2x70 rm
31,0
1320
160
443
-
174
2x95 rm
35,0
1800
180
320
-
210
2x120 rm
39,0
2150
210
253
-
244
2x150 rm
43,0
2600
220
206
-
281
2x185 rm
47,0
3250
230
164
-
320
2x240 rm
53,0
4100
240
125
-
378
Ürün adı
Kısa açıklama
Tam açıklama
<ul><li>Type: YAVV-R (TSE), NAYY (VDE), AL/PVC/PVC (BS)</li><li>Standards: TS IEC 60502-1, VDE 0276</li><li>Structure: Aluminum conductor, PVC insulation, PVC filling, PVC outer sheath</li><li>Places of Use: This cable, which is used as a mains lighting and power cable, is used internally, externally underground, and in cable ducts where high mechanical stresses occur.</li><li>Technical Data: Max. operating temperature 70 °C</li><li>Max. short circuit temperature 160°C</li><li>Minimum bending radius 12*D D:Cable outer diameter (mm)</li></ul><p><google-sheets-html-origin style=""></google-sheets-html-origin></p><google-sheets-html-origin style=""><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; width: 0px; border: none;"><colgroup><col width="95"><col width="100"><col width="140"><col width="118"><col width="125"><col width="86"><col width="130"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="4" data-sheets-value="{"1":2,"2":"Dimensions and Weights"}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: bottom; overflow-wrap: break-word; text-align: center;">Dimensions and Weights</td><td rowspan="1" colspan="3" data-sheets-value="{"1":2,"2":"Electrical Information"}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; overflow-wrap: break-word; text-align: center;">Electrical Information</td></tr><tr style="height: 21px;"><td rowspan="2" colspan="1" data-sheets-value="{"1":2,"2":"Nominal Cross Section"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; overflow-wrap: break-word; text-align: center;"><div style="max-height: 80px;">Nominal Cross Section</div></td><td rowspan="2" colspan="1" data-sheets-value="{"1":2,"2":"Outside Diameter Approx."}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; overflow-wrap: break-word; text-align: center;"><div style="max-height: 80px;">Outside Diameter Approx.</div></td><td rowspan="2" colspan="1" data-sheets-value="{"1":2,"2":"Net Weight Approx."}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; overflow-wrap: break-word; text-align: center;"><div style="max-height: 80px;">Net Weight Approx.</div></td><td rowspan="2" colspan="1" data-sheets-value="{"1":2,"2":"Conveying Reel Dimensions for 1000 m Cable"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; overflow-wrap: break-word; text-align: center;"><div style="max-height: 80px;">Conveying Reel Dimensions for 1000 m Cable</div></td><td rowspan="2" colspan="1" data-sheets-value="{"1":2,"2":"Conductor DC Resistance at 20 °C (Max.)"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; overflow-wrap: break-word; text-align: center;"><div style="max-height: 80px;">Conductor DC Resistance at 20 °C (Max.)</div></td><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"Current Carrying Capacity"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; overflow-wrap: break-word; text-align: center;">Current Carrying Capacity</td></tr><tr style="height: 59px;"><td rowspan="2" colspan="1" data-sheets-value="{"1":2,"2":"In soil (A)"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; overflow-wrap: break-word; text-align: center;"><div style="max-height: 80px;">In soil (A)</div></td><td rowspan="2" colspan="1" data-sheets-value="{"1":2,"2":"In the air (A)"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; overflow-wrap: break-word; text-align: center;"><div style="max-height: 80px;">In the air (A)</div></td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"mm 2"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; overflow-wrap: break-word; text-align: center;">mm 2</td><td data-sheets-value="{"1":2,"2":"mm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; overflow-wrap: break-word; text-align: center;">mm</td><td data-sheets-value="{"1":2,"2":"kg km"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; overflow-wrap: break-word; text-align: center;">kg km</td><td data-sheets-value="{"1":2,"2":"cm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; overflow-wrap: break-word; text-align: center;">cm</td><td data-sheets-value="{"1":2,"2":"ohm/km"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; overflow-wrap: break-word; text-align: center;">ohm/km</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"2x25 rm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">2x25 rm</td><td data-sheets-value="{"1":2,"2":"22,0"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">22,0</td><td data-sheets-value="{"1":3,"3":630}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">630</td><td data-sheets-value="{"1":3,"3":130}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">130</td><td data-sheets-value="{"1":3,"3":1200}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">1,200</td><td data-sheets-value="{"1":2,"2":"-"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">-</td><td data-sheets-value="{"1":3,"3":91}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">91</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"2x35 rm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">2x35 rm</td><td data-sheets-value="{"1":2,"2":"24,0"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">24,0</td><td data-sheets-value="{"1":3,"3":770}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">770</td><td data-sheets-value="{"1":3,"3":130}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">130</td><td data-sheets-value="{"1":3,"3":868}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">868</td><td data-sheets-value="{"1":2,"2":"-"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">-</td><td data-sheets-value="{"1":3,"3":113}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">113</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"2x50 rm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">2x50 rm</td><td data-sheets-value="{"1":2,"2":"28,0"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">28,0</td><td data-sheets-value="{"1":3,"3":1025}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">1025</td><td data-sheets-value="{"1":3,"3":150}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">150</td><td data-sheets-value="{"1":3,"3":641}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">641</td><td data-sheets-value="{"1":2,"2":"-"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">-</td><td data-sheets-value="{"1":3,"3":138}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">138</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"2x70 rm"}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">2x70 rm</td><td data-sheets-value="{"1":2,"2":"31,0"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">31,0</td><td data-sheets-value="{"1":3,"3":1320}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">1320</td><td data-sheets-value="{"1":3,"3":160}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">160</td><td data-sheets-value="{"1":3,"3":443}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">443</td><td data-sheets-value="{"1":2,"2":"-"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">-</td><td data-sheets-value="{"1":3,"3":174}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">174</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"2x95 rm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">2x95 rm</td><td data-sheets-value="{"1":2,"2":"35,0"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">35,0</td><td data-sheets-value="{"1":3,"3":1800}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">1800</td><td data-sheets-value="{"1":3,"3":180}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">180</td><td data-sheets-value="{"1":3,"3":320}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">320</td><td data-sheets-value="{"1":2,"2":"-"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">-</td><td data-sheets-value="{"1":3,"3":210}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">210</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"2x120 rm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">2x120 rm</td><td data-sheets-value="{"1":2,"2":"39,0"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">39,0</td><td data-sheets-value="{"1":3,"3":2150}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">2150</td><td data-sheets-value="{"1":3,"3":210}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">210</td><td data-sheets-value="{"1":3,"3":253}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">253</td><td data-sheets-value="{"1":2,"2":"-"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">-</td><td data-sheets-value="{"1":3,"3":244}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">244</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"2x150 rm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">2x150 rm</td><td data-sheets-value="{"1":2,"2":"43,0"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">43,0</td><td data-sheets-value="{"1":3,"3":2600}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">2600</td><td data-sheets-value="{"1":3,"3":220}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">220</td><td data-sheets-value="{"1":3,"3":206}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">206</td><td data-sheets-value="{"1":2,"2":"-"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">-</td><td data-sheets-value="{"1":3,"3":281}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">281</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"2x185 rm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">2x185 rm</td><td data-sheets-value="{"1":2,"2":"47,0"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">47,0</td><td data-sheets-value="{"1":3,"3":3250}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">3250</td><td data-sheets-value="{"1":3,"3":230}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">230</td><td data-sheets-value="{"1":3,"3":164}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">164</td><td data-sheets-value="{"1":2,"2":"-"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">-</td><td data-sheets-value="{"1":3,"3":320}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">320</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"2x240 rm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">2x240 rm</td><td data-sheets-value="{"1":2,"2":"53,0"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">53,0</td><td data-sheets-value="{"1":3,"3":4100}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">4100</td><td data-sheets-value="{"1":3,"3":240}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">240</td><td data-sheets-value="{"1":3,"3":125}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">125</td><td data-sheets-value="{"1":2,"2":"-"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">-</td><td data-sheets-value="{"1":3,"3":378}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; font-family: "Open Sans"; text-align: center;">378</td></tr></tbody></table></google-sheets-html-origin>
Type: YAVV-R (TSE), NAYY (VDE), AL/PVC/PVC (BS)
Standards: TS IEC 60502-1, VDE 0276
Structure: Aluminum conductor, PVC insulation, PVC filling, PVC outer sheath
Places of Use: This cable, which is used as a mains lighting and power cable, is used internally, externally underground, and in cable ducts where high mechanical stresses occur.
Technical Data: Max. operating temperature 70 °C
Max. short circuit temperature 160°C
Minimum bending radius 12*D D:Cable outer diameter (mm)
Dimensions and Weights
Electrical Information
Nominal Cross Section
Outside Diameter Approx.
Net Weight Approx.
Conveying Reel Dimensions for 1000 m Cable
Conductor DC Resistance at 20 °C (Max.)
Current Carrying Capacity
In soil (A)
In the air (A)
mm 2
mm
kg km
cm
ohm/km
2x25 rm
22,0
630
130
1,200
-
91
2x35 rm
24,0
770
130
868
-
113
2x50 rm
28,0
1025
150
641
-
138
2x70 rm
31,0
1320
160
443
-
174
2x95 rm
35,0
1800
180
320
-
210
2x120 rm
39,0
2150
210
253
-
244
2x150 rm
43,0
2600
220
206
-
281
2x185 rm
47,0
3250
230
164
-
320
2x240 rm
53,0
4100
240
125
-
378
Ürün adı
Kısa açıklama
Tam açıklama
<ul><li>النوع: YAVV-R (TSE)، NAYY (VDE)، AL/PVC/PVC (BS)</li><li>المعايير: TS IEC 60502-1، VDE 0276</li><li>الهيكل: موصل ألومنيوم، عزل PVC، حشو PVC، غلاف خارجي PVC</li><li>أماكن الاستخدام: يستخدم هذا الكابل ككابل للإضاءة والطاقة، داخليًا وخارجيًا تحت الأرض وفي قنوات الكابلات التي تحدث فيها ضغوط ميكانيكية عالية.</li><li>البيانات الفنية: درجة حرارة التشغيل 70 درجة مئوية</li><li>درجة حرارة الدائرة القصيرة 160 درجة مئوية</li><li>الحد الأدنى لنصف قطر الانحناء 12*D D: القطر الخارجي للكابل (مم)</li></ul><p><google-sheets-html-origin style=""></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="89"><col width="134"><col width="103"><col width="89"><col width="120"><col width="65"><col width="101"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="4" data-sheets-value="{"1":2,"2":"الأبعاد والأوزان"}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(255, 255, 255); white-space: normal; overflow-wrap: break-word; text-align: center;">الأبعاد والأوزان</td><td rowspan="1" colspan="3" data-sheets-value="{"1":2,"2":"المعلومات الكهربائية"}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(255, 255, 255); white-space: normal; overflow-wrap: break-word; text-align: center;">المعلومات الكهربائية</td></tr><tr style="height: 21px;"><td rowspan="2" colspan="1" data-sheets-value="{"1":2,"2":"المقطع العرضي الاسمي"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); white-space: normal; overflow-wrap: break-word; text-align: center;"><span><div style="max-height: 80px;">المقطع العرضي الاسمي</div></span></td><td rowspan="2" colspan="1" data-sheets-value="{"1":2,"2":"القطر الخارجي تقريبا"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); white-space: normal; overflow-wrap: break-word; text-align: center;"><span><div style="max-height: 80px;">القطر الخارجي تقريبا</div></span></td><td rowspan="2" colspan="1" data-sheets-value="{"1":2,"2":"الوزن الصافي"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; white-space: normal; overflow-wrap: break-word; text-align: center;"><span><div style="max-height: 80px;">الوزن الصافي</div></span></td><td rowspan="2" colspan="1" data-sheets-value="{"1":2,"2":"أبعاد بكرة النقل لكابل 1000 متر"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); white-space: normal; overflow-wrap: break-word; text-align: center;"><span><div style="max-height: 80px;">أبعاد بكرة النقل لكابل 1000 متر</div></span></td><td rowspan="2" colspan="1" data-sheets-value="{"1":2,"2":"مقاومة موصل DC عند 20 درجة مئوية (كحد أقصى)"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; white-space: normal; overflow-wrap: break-word; text-align: center;"><span><div style="max-height: 80px;">مقاومة موصل DC عند 20 درجة مئوية (كحد أقصى)</div></span></td><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"القدرة الاستيعابية الحالية"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); white-space: normal; overflow-wrap: break-word; text-align: center;">القدرة الاستيعابية الحالية</td></tr><tr style="height: 59px;"><td rowspan="2" colspan="1" data-sheets-value="{"1":2,"2":"في التربة (أ)"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); white-space: normal; overflow-wrap: break-word; text-align: center;"><span><div style="max-height: 80px;">في التربة (أ)</div></span></td><td rowspan="2" colspan="1" data-sheets-value="{"1":2,"2":"في الهواء (أ)"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); white-space: normal; overflow-wrap: break-word; text-align: center;"><span><div style="max-height: 80px;">في الهواء (أ)</div></span></td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"مم²"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(255, 255, 255); white-space: normal; overflow-wrap: break-word; text-align: center;">مم²</td><td data-sheets-value="{"1":2,"2":"مم"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(255, 255, 255); white-space: normal; overflow-wrap: break-word; text-align: center;">مم</td><td data-sheets-value="{"1":2,"2":"كجم/كم"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(255, 255, 255); white-space: normal; overflow-wrap: break-word; text-align: center;">كجم/كم</td><td data-sheets-value="{"1":2,"2":"سم"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(255, 255, 255); white-space: normal; overflow-wrap: break-word; text-align: center;">سم</td><td data-sheets-value="{"1":2,"2":"أوم/كم/م"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(255, 255, 255); white-space: normal; overflow-wrap: break-word; text-align: center;">أوم/كم/م</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"2x25 rm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">2x25 rm</td><td data-sheets-value="{"1":2,"2":"22,0"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">22,0</td><td data-sheets-value="{"1":3,"3":630}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">630</td><td data-sheets-value="{"1":3,"3":130}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">130</td><td data-sheets-value="{"1":3,"3":1200}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">1,200</td><td data-sheets-value="{"1":2,"2":"-"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">-</td><td data-sheets-value="{"1":3,"3":91}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">91</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"2x35 rm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">2x35 rm</td><td data-sheets-value="{"1":2,"2":"24,0"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">24,0</td><td data-sheets-value="{"1":3,"3":770}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">770</td><td data-sheets-value="{"1":3,"3":130}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">130</td><td data-sheets-value="{"1":3,"3":868}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">868</td><td data-sheets-value="{"1":2,"2":"-"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">-</td><td data-sheets-value="{"1":3,"3":113}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">113</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"2x50 rm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">2x50 rm</td><td data-sheets-value="{"1":2,"2":"28,0"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">28,0</td><td data-sheets-value="{"1":3,"3":1025}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">1025</td><td data-sheets-value="{"1":3,"3":150}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">150</td><td data-sheets-value="{"1":3,"3":641}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">641</td><td data-sheets-value="{"1":2,"2":"-"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">-</td><td data-sheets-value="{"1":3,"3":138}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">138</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"2x70 rm"}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">2x70 rm</td><td data-sheets-value="{"1":2,"2":"31,0"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">31,0</td><td data-sheets-value="{"1":3,"3":1320}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">1320</td><td data-sheets-value="{"1":3,"3":160}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">160</td><td data-sheets-value="{"1":3,"3":443}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">443</td><td data-sheets-value="{"1":2,"2":"-"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">-</td><td data-sheets-value="{"1":3,"3":174}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">174</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"2x95 rm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">2x95 rm</td><td data-sheets-value="{"1":2,"2":"35,0"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">35,0</td><td data-sheets-value="{"1":3,"3":1800}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">1800</td><td data-sheets-value="{"1":3,"3":180}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">180</td><td data-sheets-value="{"1":3,"3":320}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">320</td><td data-sheets-value="{"1":2,"2":"-"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">-</td><td data-sheets-value="{"1":3,"3":210}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">210</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"2x120 rm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">2x120 rm</td><td data-sheets-value="{"1":2,"2":"39,0"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">39,0</td><td data-sheets-value="{"1":3,"3":2150}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">2150</td><td data-sheets-value="{"1":3,"3":210}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">210</td><td data-sheets-value="{"1":3,"3":253}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">253</td><td data-sheets-value="{"1":2,"2":"-"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">-</td><td data-sheets-value="{"1":3,"3":244}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">244</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"2x150 rm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">2x150 rm</td><td data-sheets-value="{"1":2,"2":"43,0"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">43,0</td><td data-sheets-value="{"1":3,"3":2600}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">2600</td><td data-sheets-value="{"1":3,"3":220}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">220</td><td data-sheets-value="{"1":3,"3":206}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">206</td><td data-sheets-value="{"1":2,"2":"-"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">-</td><td data-sheets-value="{"1":3,"3":281}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">281</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"2x185 rm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">2x185 rm</td><td data-sheets-value="{"1":2,"2":"47,0"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">47,0</td><td data-sheets-value="{"1":3,"3":3250}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">3250</td><td data-sheets-value="{"1":3,"3":230}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">230</td><td data-sheets-value="{"1":3,"3":164}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">164</td><td data-sheets-value="{"1":2,"2":"-"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">-</td><td data-sheets-value="{"1":3,"3":320}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">320</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"2x240 rm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">2x240 rm</td><td data-sheets-value="{"1":2,"2":"53,0"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">53,0</td><td data-sheets-value="{"1":3,"3":4100}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">4100</td><td data-sheets-value="{"1":3,"3":240}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">240</td><td data-sheets-value="{"1":3,"3":125}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">125</td><td data-sheets-value="{"1":2,"2":"-"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">-</td><td data-sheets-value="{"1":3,"3":378}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">378</td></tr></tbody></table>
النوع: YAVV-R (TSE)، NAYY (VDE)، AL/PVC/PVC (BS)
المعايير: TS IEC 60502-1، VDE 0276
الهيكل: موصل ألومنيوم، عزل PVC، حشو PVC، غلاف خارجي PVC
أماكن الاستخدام: يستخدم هذا الكابل ككابل للإضاءة والطاقة، داخليًا وخارجيًا تحت الأرض وفي قنوات الكابلات التي تحدث فيها ضغوط ميكانيكية عالية.
البيانات الفنية: درجة حرارة التشغيل 70 درجة مئوية
درجة حرارة الدائرة القصيرة 160 درجة مئوية
الحد الأدنى لنصف قطر الانحناء 12*D D: القطر الخارجي للكابل (مم)
الأبعاد والأوزان
المعلومات الكهربائية
المقطع العرضي الاسمي
القطر الخارجي تقريبا
الوزن الصافي
أبعاد بكرة النقل لكابل 1000 متر
مقاومة موصل DC عند 20 درجة مئوية (كحد أقصى)
القدرة الاستيعابية الحالية
في التربة (أ)
في الهواء (أ)
مم²
مم
كجم/كم
سم
أوم/كم/م
2x25 rm
22,0
630
130
1,200
-
91
2x35 rm
24,0
770
130
868
-
113
2x50 rm
28,0
1025
150
641
-
138
2x70 rm
31,0
1320
160
443
-
174
2x95 rm
35,0
1800
180
320
-
210
2x120 rm
39,0
2150
210
253
-
244
2x150 rm
43,0
2600
220
206
-
281
2x185 rm
47,0
3250
230
164
-
320
2x240 rm
53,0
4100
240
125
-
378
Ürün adı
Kısa açıklama
Tam açıklama
<ul><li>Tip : YAVV-R (TSE), NAYY (VDE), AL/PVC/PVC (BS)</li><li>Standartlar : TS IEC 60502-1, VDE 0276</li><li>Yapısı : Alüminyum iletken, PVC izole, PVC Dolgu, PVC dış kılıf</li><li>Kullanıldığı Yerler : Şebeke aydınlatma ve güç kablosu olarak kullanılan bu kablo fazla mekanik zorlamaların dahili, harici toprak altında, ve kablo kanalında kullanılır.</li><li>Teknik Veriler : Maks. çalışma sıcaklığı 70 °C</li><li>Maks. kısa devre sıcaklığı 160°C</li><li>Minimum bükülme yarı çapı 12*D D:Kablo dış çapı (mm)</li></ul><p><google-sheets-html-origin style=""></google-sheets-html-origin></p><table xmlns="http://www.w3.org/1999/xhtml" cellspacing="0" cellpadding="0" dir="ltr" border="1" data-sheets-root="1" style="table-layout: fixed; width: 0px; border-collapse: collapse; border: none;"><colgroup><col width="85"><col width="85"><col width="98"><col width="145"><col width="101"><col width="113"><col width="132"></colgroup><tbody><tr style="height: 21px;"><td rowspan="1" colspan="4" data-sheets-value="{"1":2,"2":"Boyut ve Ağırlıklar"}" style="border: 1px solid rgb(0, 0, 0); overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(255, 255, 255); white-space: normal; overflow-wrap: break-word; text-align: center;">Boyut ve Ağırlıklar</td><td rowspan="1" colspan="3" data-sheets-value="{"1":2,"2":"Elektriksel Bilgiler"}" style="border-width: 1px; border-style: solid; border-color: rgb(0, 0, 0) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(255, 255, 255); white-space: normal; overflow-wrap: break-word; text-align: center;">Elektriksel Bilgiler</td></tr><tr style="height: 21px;"><td rowspan="2" colspan="1" data-sheets-value="{"1":2,"2":"Nominal Kesit"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); white-space: normal; overflow-wrap: break-word; text-align: center;"><span><div style="max-height: 80px;">Nominal Kesit</div></span></td><td rowspan="2" colspan="1" data-sheets-value="{"1":2,"2":"Dış Çap Yaklaşık"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); white-space: normal; overflow-wrap: break-word; text-align: center;"><span><div style="max-height: 80px;">Dış Çap Yaklaşık</div></span></td><td rowspan="2" colspan="1" data-sheets-value="{"1":2,"2":"Net Ağırlık Yaklaşık"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); white-space: normal; overflow-wrap: break-word; text-align: center;"><span><div style="max-height: 80px;">Net Ağırlık Yaklaşık</div></span></td><td rowspan="2" colspan="1" data-sheets-value="{"1":2,"2":"1000 m\nKablo İçin Sevk Makara\nÖlçüleri"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); white-space: normal; overflow-wrap: break-word; text-align: center;"><span><div style="max-height: 80px;">1000 m<br>Kablo İçin Sevk Makara<br>Ölçüleri</div></span></td><td rowspan="2" colspan="1" data-sheets-value="{"1":2,"2":"20 °C’ de İletken DC Direnci (Maks.)"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; white-space: normal; overflow-wrap: break-word; text-align: center;"><span><div style="max-height: 80px;">20 °C’ de İletken DC Direnci (Maks.)</div></span></td><td rowspan="1" colspan="2" data-sheets-value="{"1":2,"2":"Akım Taşıma Kapasitesi"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: bottom; background-color: rgb(255, 255, 255); white-space: normal; overflow-wrap: break-word; text-align: center;">Akım Taşıma Kapasitesi</td></tr><tr style="height: 59px;"><td data-sheets-value="{"1":2,"2":"Toprakta (A)"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; white-space: normal; overflow-wrap: break-word; text-align: center;">Toprakta (A)</td><td data-sheets-value="{"1":2,"2":"Havada (A)"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; white-space: normal; overflow-wrap: break-word; text-align: center;">Havada (A)</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"2x25 rm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">2x25 rm</td><td data-sheets-value="{"1":2,"2":"22,0"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">22,0</td><td data-sheets-value="{"1":3,"3":630}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">630</td><td data-sheets-value="{"1":3,"3":130}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">130</td><td data-sheets-value="{"1":3,"3":1200}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">1,200</td><td data-sheets-value="{"1":2,"2":"-"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">-</td><td data-sheets-value="{"1":3,"3":91}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">91</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"2x35 rm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">2x35 rm</td><td data-sheets-value="{"1":2,"2":"24,0"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">24,0</td><td data-sheets-value="{"1":3,"3":770}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">770</td><td data-sheets-value="{"1":3,"3":130}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">130</td><td data-sheets-value="{"1":3,"3":868}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">868</td><td data-sheets-value="{"1":2,"2":"-"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">-</td><td data-sheets-value="{"1":3,"3":113}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">113</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"2x50 rm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">2x50 rm</td><td data-sheets-value="{"1":2,"2":"28,0"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">28,0</td><td data-sheets-value="{"1":3,"3":1025}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">1025</td><td data-sheets-value="{"1":3,"3":150}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">150</td><td data-sheets-value="{"1":3,"3":641}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">641</td><td data-sheets-value="{"1":2,"2":"-"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">-</td><td data-sheets-value="{"1":3,"3":138}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">138</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"2x70 rm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">2x70 rm</td><td data-sheets-value="{"1":2,"2":"31,0"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">31,0</td><td data-sheets-value="{"1":3,"3":1320}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">1320</td><td data-sheets-value="{"1":3,"3":160}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">160</td><td data-sheets-value="{"1":3,"3":443}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">443</td><td data-sheets-value="{"1":2,"2":"-"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">-</td><td data-sheets-value="{"1":3,"3":174}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">174</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"2x95 rm"}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">2x95 rm</td><td data-sheets-value="{"1":2,"2":"35,0"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">35,0</td><td data-sheets-value="{"1":3,"3":1800}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">1800</td><td data-sheets-value="{"1":3,"3":180}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">180</td><td data-sheets-value="{"1":3,"3":320}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">320</td><td data-sheets-value="{"1":2,"2":"-"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">-</td><td data-sheets-value="{"1":3,"3":210}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">210</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"2x120 rm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">2x120 rm</td><td data-sheets-value="{"1":2,"2":"39,0"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">39,0</td><td data-sheets-value="{"1":3,"3":2150}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">2150</td><td data-sheets-value="{"1":3,"3":210}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">210</td><td data-sheets-value="{"1":3,"3":253}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">253</td><td data-sheets-value="{"1":2,"2":"-"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">-</td><td data-sheets-value="{"1":3,"3":244}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">244</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"2x150 rm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">2x150 rm</td><td data-sheets-value="{"1":2,"2":"43,0"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">43,0</td><td data-sheets-value="{"1":3,"3":2600}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">2600</td><td data-sheets-value="{"1":3,"3":220}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">220</td><td data-sheets-value="{"1":3,"3":206}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">206</td><td data-sheets-value="{"1":2,"2":"-"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">-</td><td data-sheets-value="{"1":3,"3":281}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">281</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"2x185 rm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">2x185 rm</td><td data-sheets-value="{"1":2,"2":"47,0"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">47,0</td><td data-sheets-value="{"1":3,"3":3250}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">3250</td><td data-sheets-value="{"1":3,"3":230}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">230</td><td data-sheets-value="{"1":3,"3":164}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">164</td><td data-sheets-value="{"1":2,"2":"-"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">-</td><td data-sheets-value="{"1":3,"3":320}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">320</td></tr><tr style="height: 21px;"><td data-sheets-value="{"1":2,"2":"2x240 rm"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">2x240 rm</td><td data-sheets-value="{"1":2,"2":"53,0"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">53,0</td><td data-sheets-value="{"1":3,"3":4100}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">4100</td><td data-sheets-value="{"1":3,"3":240}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">240</td><td data-sheets-value="{"1":3,"3":125}" data-sheets-numberformat="{"1":2,"2":"#,##0","3":1}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">125</td><td data-sheets-value="{"1":2,"2":"-"}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">-</td><td data-sheets-value="{"1":3,"3":378}" style="border-width: 1px; border-style: solid; border-color: rgb(204, 204, 204) rgb(0, 0, 0) rgb(0, 0, 0) rgb(204, 204, 204); border-image: initial; overflow: hidden; padding: 2px 3px; vertical-align: top; background-color: rgb(255, 255, 255); font-family: "Open Sans"; font-weight: normal; text-align: center;">378</td></tr></tbody></table>
Tip : YAVV-R (TSE), NAYY (VDE), AL/PVC/PVC (BS)
Standartlar : TS IEC 60502-1, VDE 0276
Yapısı : Alüminyum iletken, PVC izole, PVC Dolgu, PVC dış kılıf
Kullanıldığı Yerler : Şebeke aydınlatma ve güç kablosu olarak kullanılan bu kablo fazla mekanik zorlamaların dahili, harici toprak altında, ve kablo kanalında kullanılır.
Teknik Veriler : Maks. çalışma sıcaklığı 70 °C
Maks. kısa devre sıcaklığı 160°C
Minimum bükülme yarı çapı 12*D D:Kablo dış çapı (mm)
Boyut ve Ağırlıklar
Elektriksel Bilgiler
Nominal Kesit
Dış Çap Yaklaşık
Net Ağırlık Yaklaşık
1000 m
Kablo İçin Sevk Makara
Ölçüleri
20 °C’ de İletken DC Direnci (Maks.)
Akım Taşıma Kapasitesi
Toprakta (A)
Havada (A)
2x25 rm
22,0
630
130
1,200
-
91
2x35 rm
24,0
770
130
868
-
113
2x50 rm
28,0
1025
150
641
-
138
2x70 rm
31,0
1320
160
443
-
174
2x95 rm
35,0
1800
180
320
-
210
2x120 rm
39,0
2150
210
253
-
244
2x150 rm
43,0
2600
220
206
-
281
2x185 rm
47,0
3250
230
164
-
320
2x240 rm
53,0
4100
240
125
-
378
