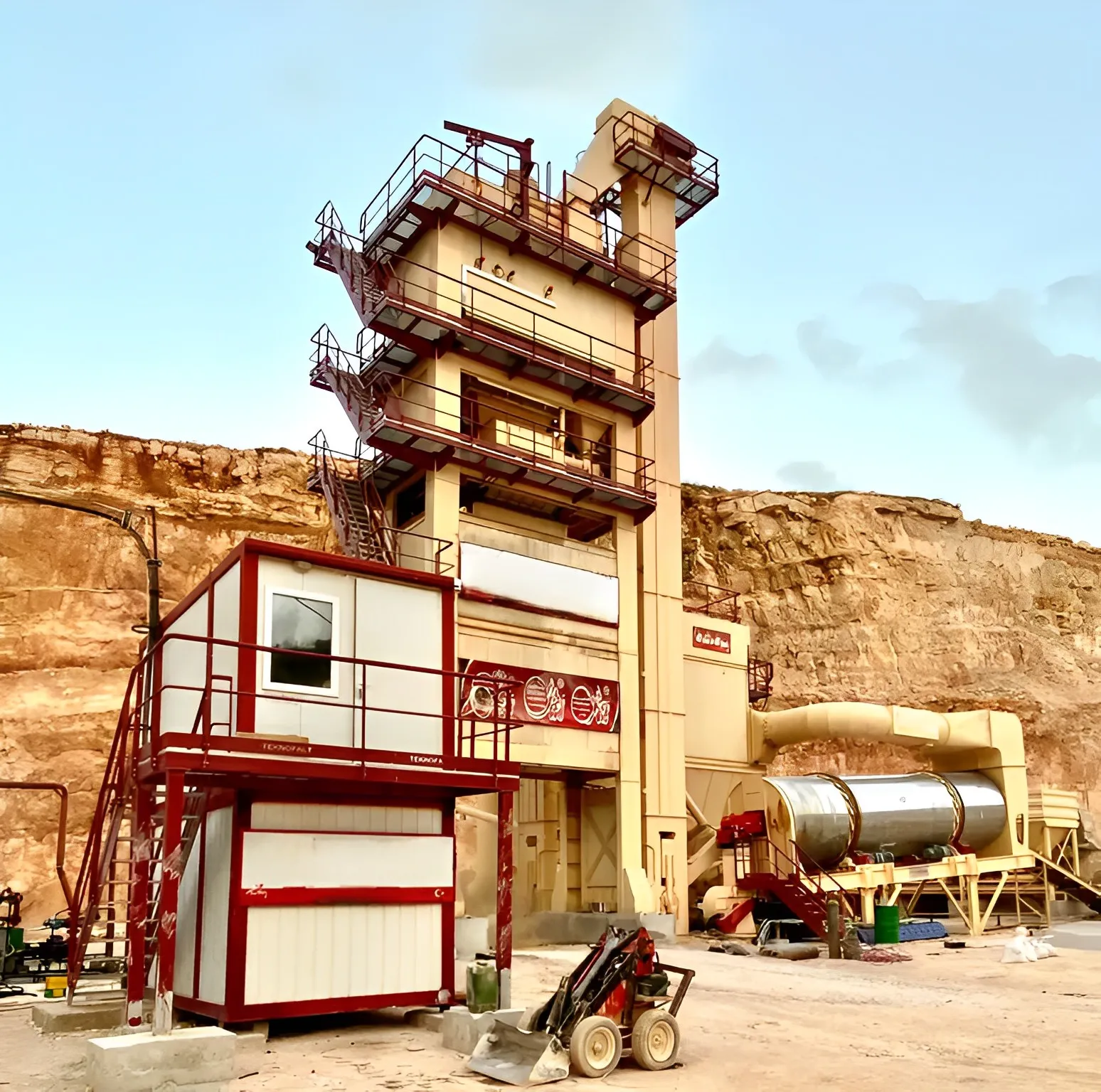

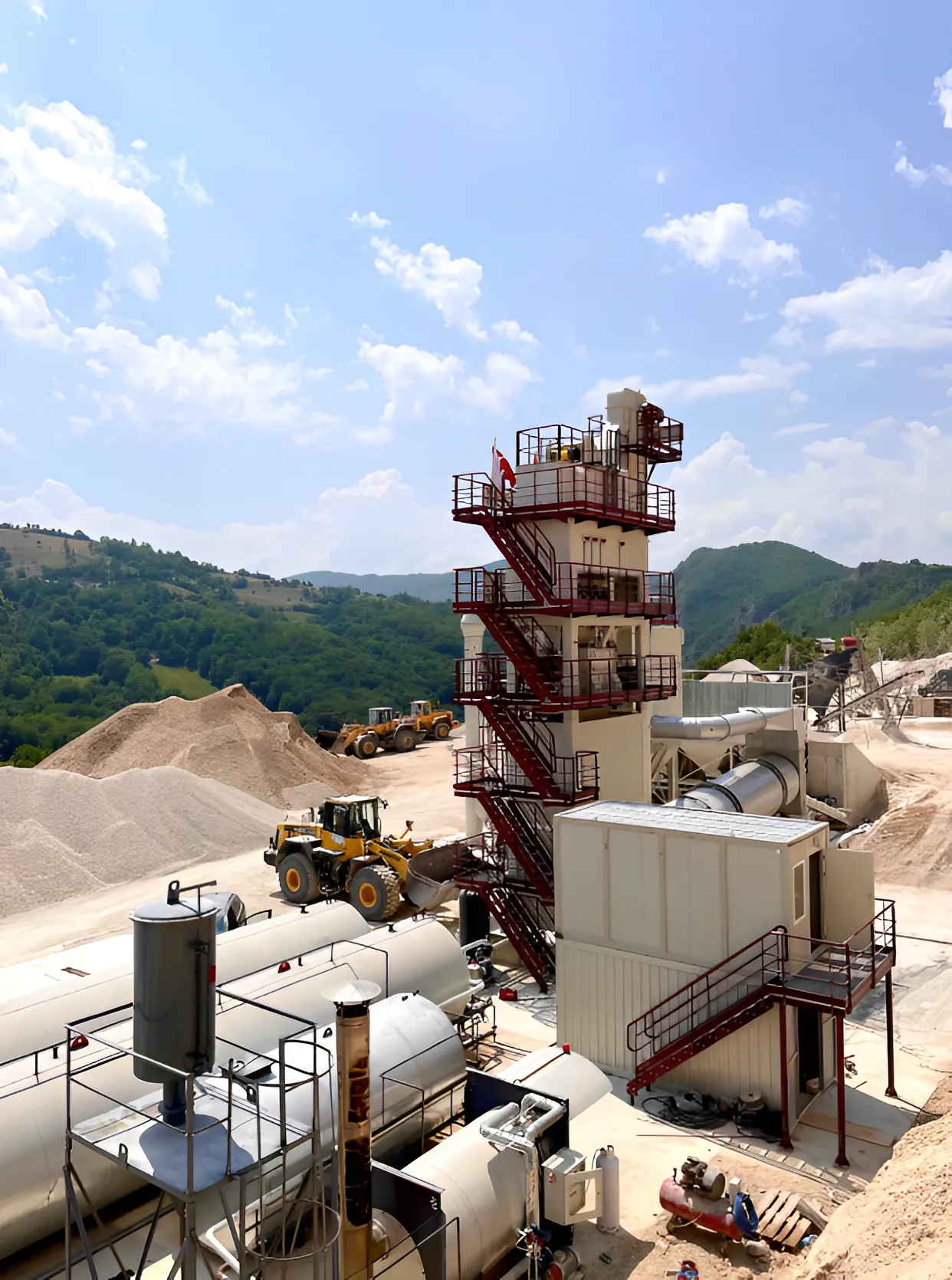

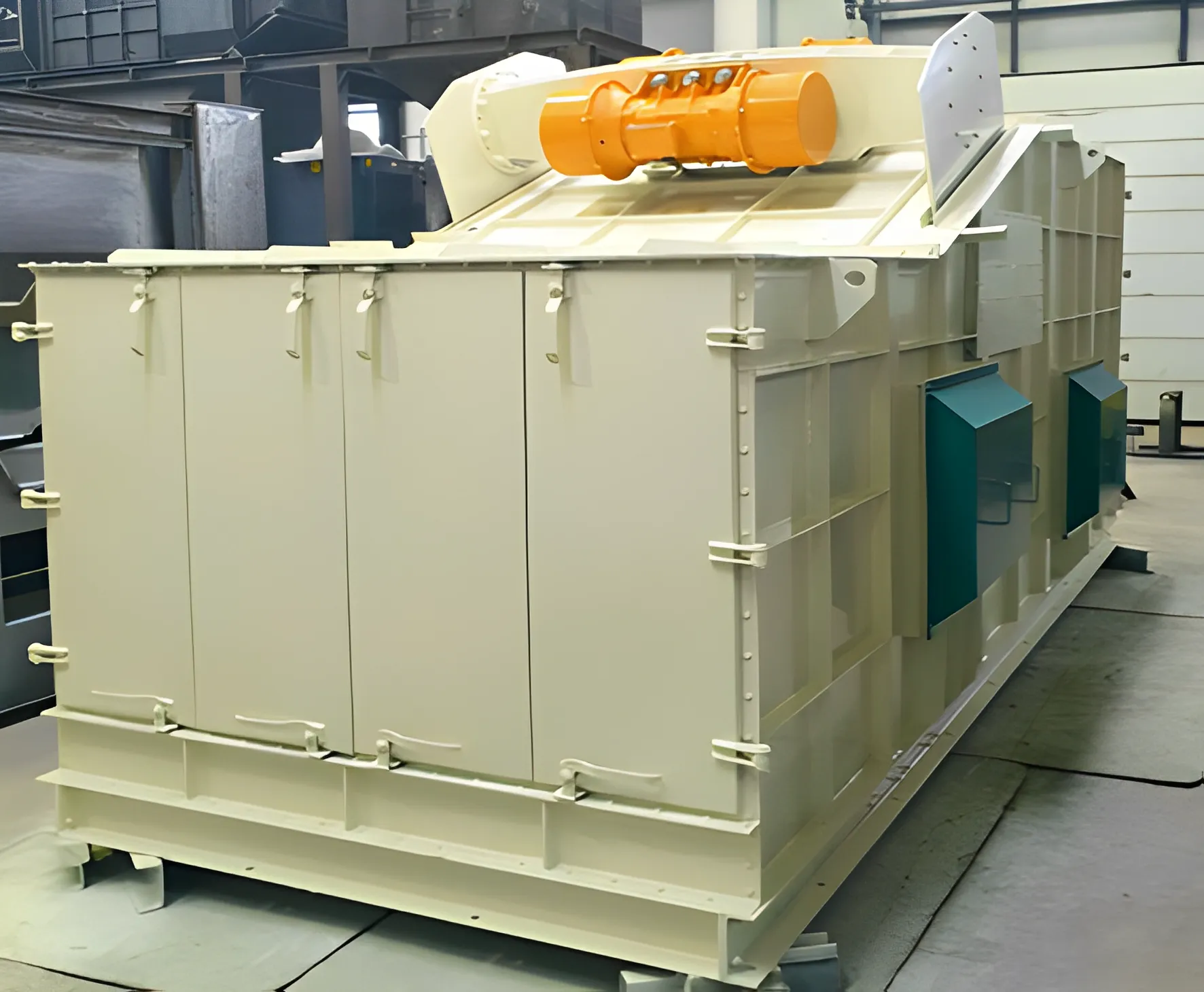

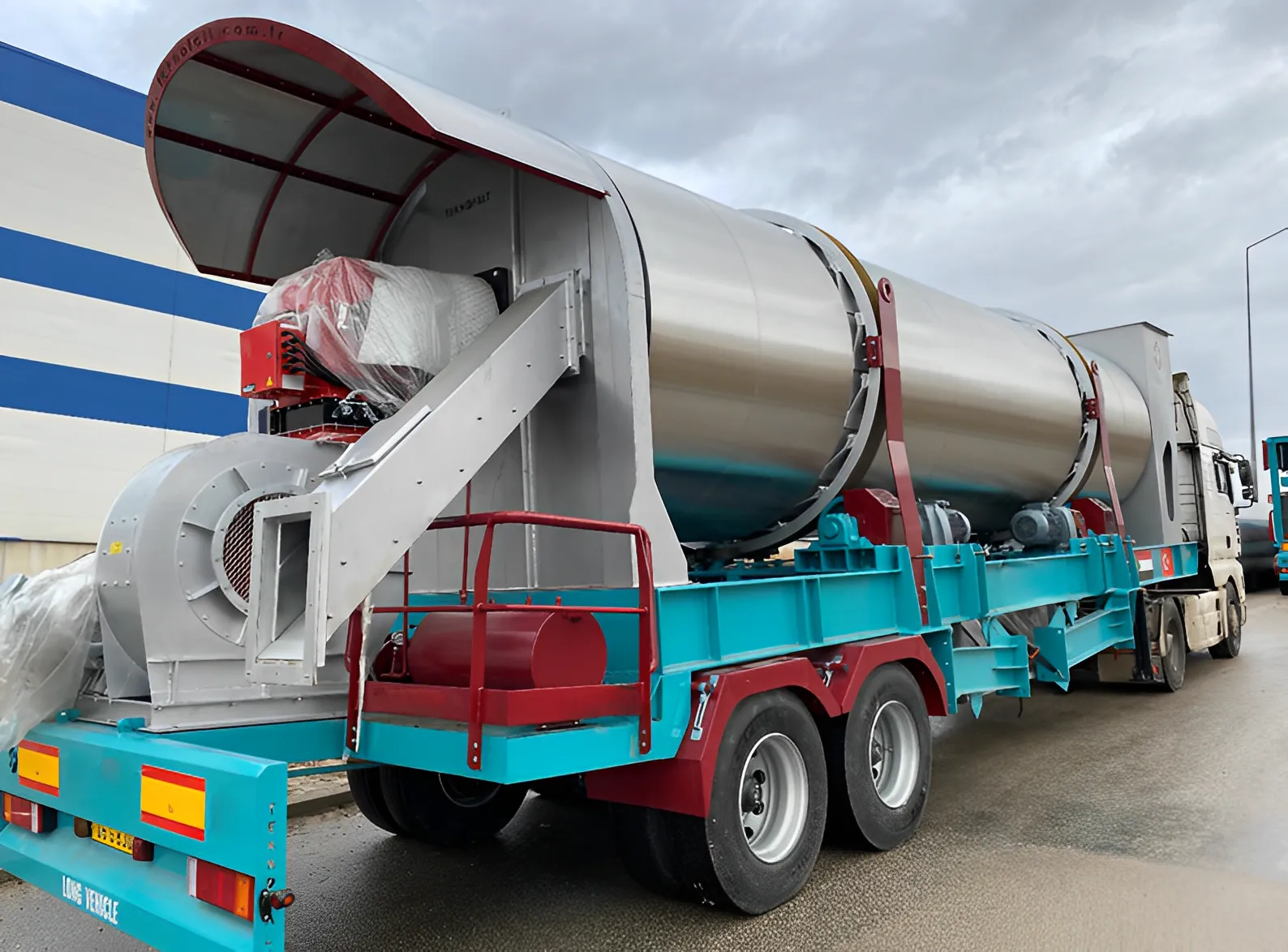

| Dry Dust Suppression Filter And Filler Silo Group |
| Filter plant filter and remove the dust particles discharged from 160 t/h capacity dryer and screen top to the air via fan. |
| Filter also filter the gas created by the burner. |
| Fan value and motor power to be used in filter suction have required capacity for 160 t/h plant. |
| There servo-motor driven valve in front of the fan to adjust the flow rate of the fan. |
| The command of the valve in front of the chimney fan controlled automatically by the automation system by means of the vacuum meter measuring the drier counter pressure. Additionally, it can be controlled by the operator from the computer screen if desired. |
| Through such system, the fan flow rate adjusted automatically depending on the system requirements, thus increasing economic lifetime of bags and saving power. |
| The value of the counter pressure followed up on computer screen in mmSS. |

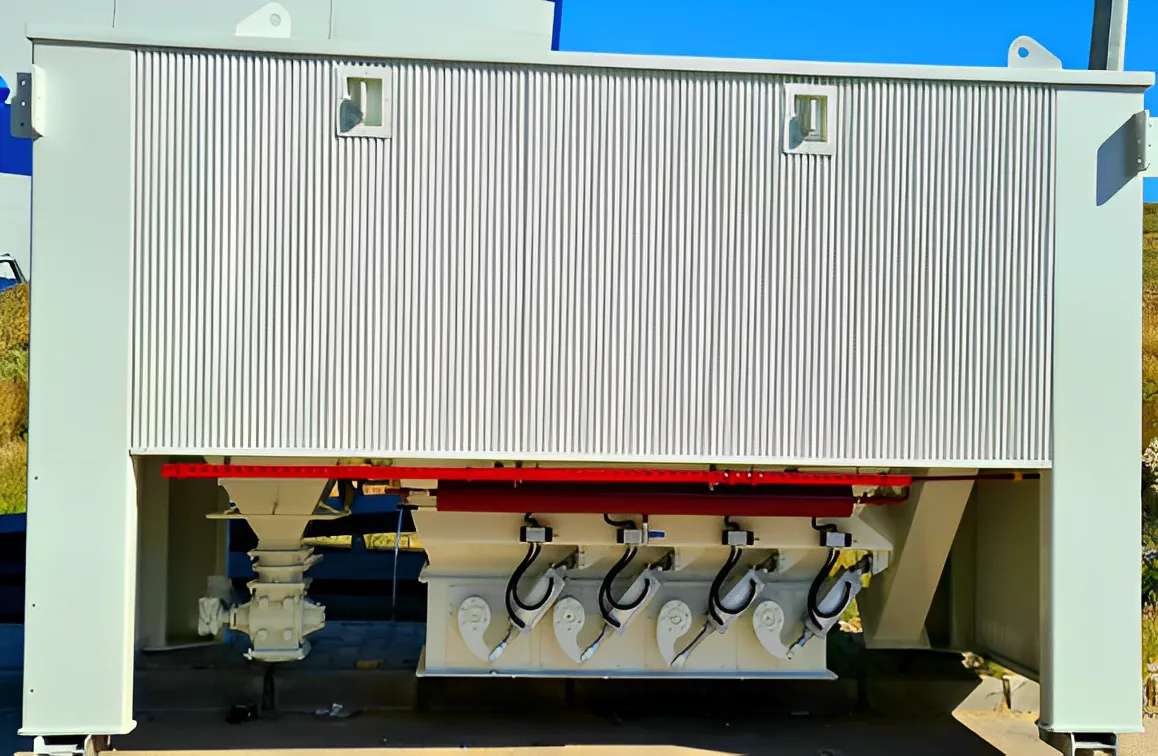

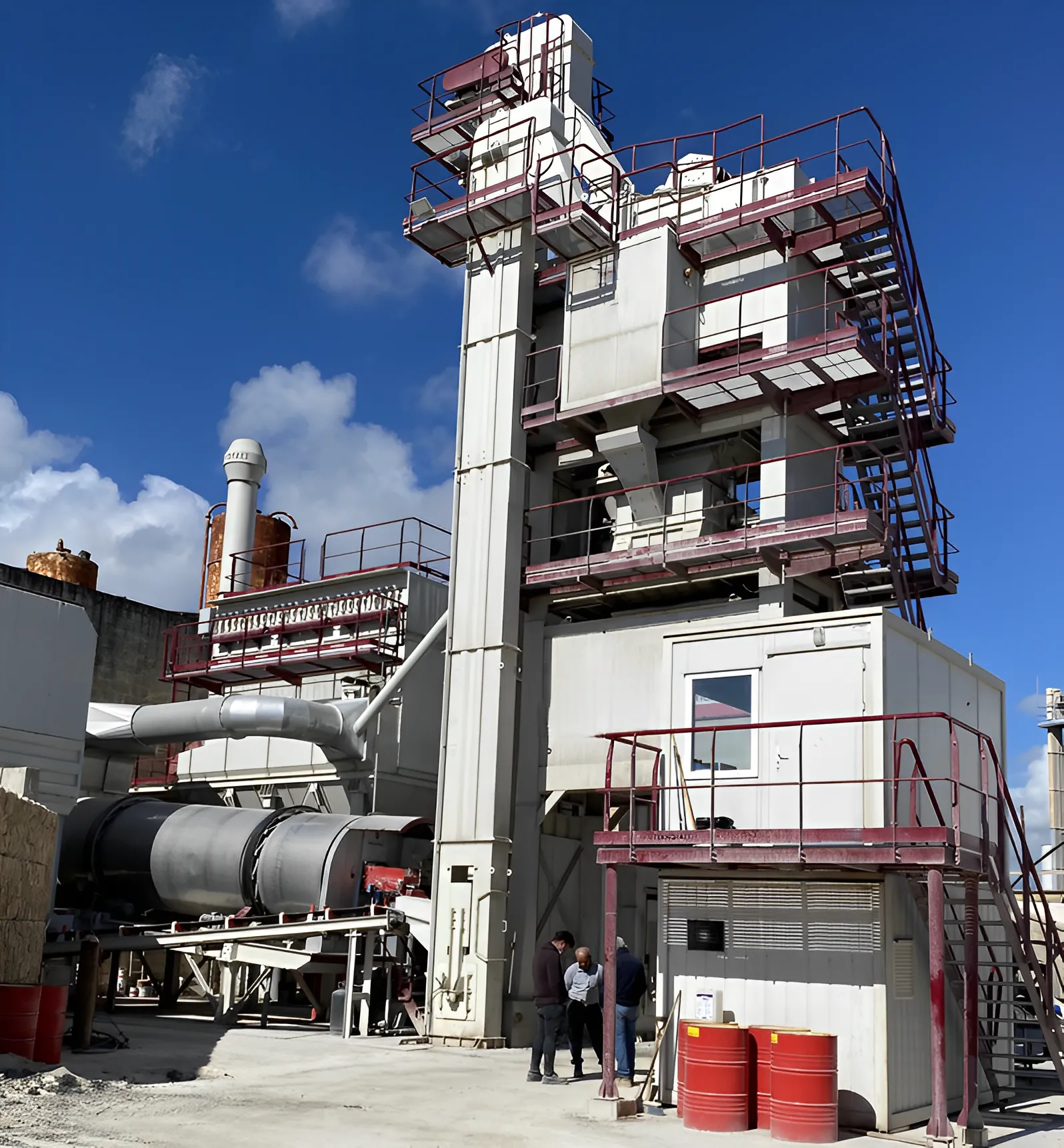

| Filter dust bag and cassette type or reverse flow, pneumatic controlled valve cap, and there pre-separator. |
| Filter body installed on a bunker and rough particles avoided to harm being collected in a separator and bunker space and reaching to the bags. |

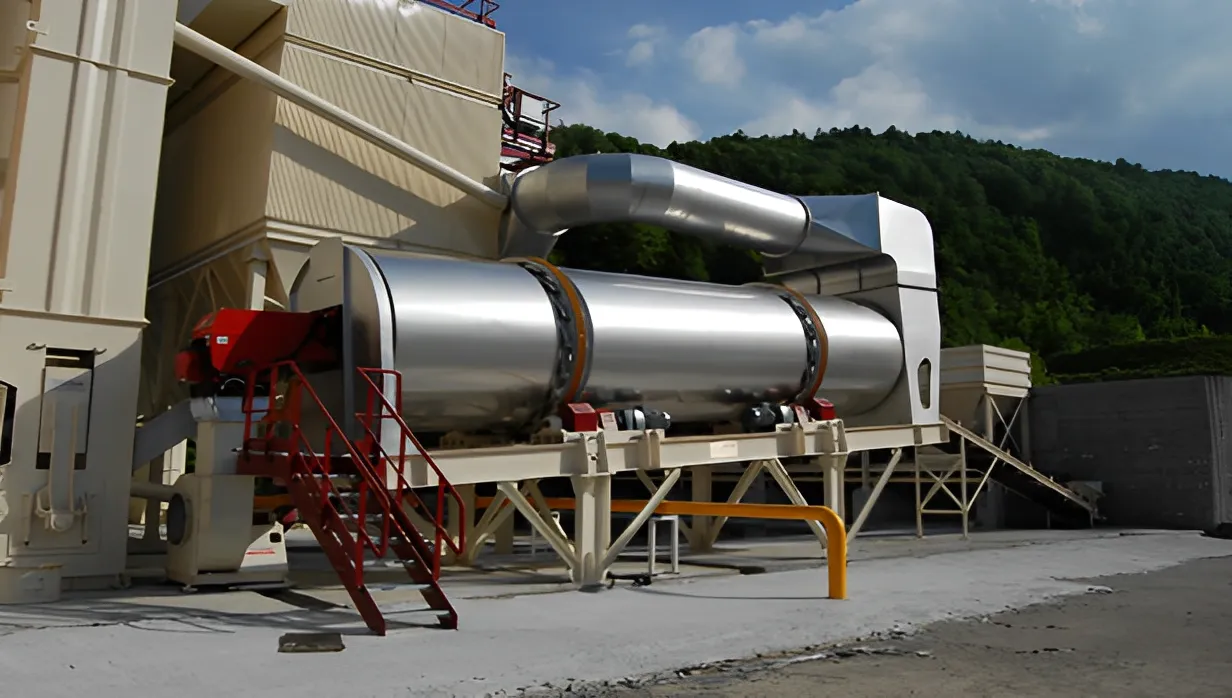

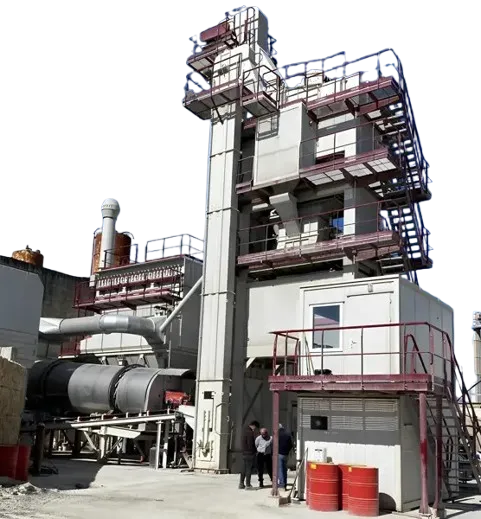

| Filter connected to the dryer via a channel. |
| Nomex filter cloth used in the filter system. |
| There platforms, banisters and ladders where required in the filter. |
| Reaching the material collected under the bunker to the filler elevator ensured with tube spiral. |
| As soon as the filter body exceeds 180 degrees, fresh air adjustment valve put to cool the filter. |
| On/off position of the fresh air adjustment valve of the filter seen on computer screen. |
| In the event that the temperature of the filter cannot be reduced for any reason, the plant automatically stop to avoid burning of the bags. |
| The surface of the filter isolated 50 mm glass wool and coated with aluminium sheet. |
| The system incorporate a 30 ton capacity of filler silo. |
| The filler silo installed between the filter and the filler elevator and designed to automatically stock up the filler in the hot aggregate bunker and to deliver to production when needed. |
| The filler silo equipped with a level indicator and a filler discharge spiral. |
| Start/Stop operation of the filter group performed from computer screen. |
Possible failures can be seen on computer screen.
|
