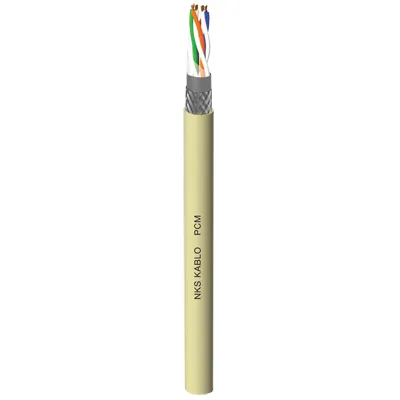

Picture of PCM JE-2Y(ST)CY PİMF Cable

Picture of PCM JE-2Y(ST)CY PİMF Cable

DescriptionThese cables are used for communications systems and connecting PCM equipment in 2048 Mbps digital transmission systems.Cable structureConductor0,40 mm / 0,50 mm tin plated or red copperInsulationSOLID PEStrandingTwo cores are twisted in pairs.Seperator TapePES TAPE Screen1AL - PES TAPEScreen2Tin...
Reviews0

These cables are used for communications systems and connecting PCM equipment in 2048 Mbps digital transmission systems.

Cable structure
Conductor	0,40 mm / 0,50 mm tin plated or red copper
Insulation	SOLID PE
Stranding	Two cores are twisted in pairs.
Seperator Tape	PES TAPE
Screen1	AL - PES TAPE
Screen2	Tinned copper wire
Sheath	VC , RAL 7001 GREY

Technicial Specifications
Conductor Resistance	0.40mm 153 Ω / Km
Conductor Resistance	0.50mm 97.8 Ω / Km
Insulation Resistance	> 500 MΩ. km
Characteristic Impedance	120 +/- 10 Ω
Effective Capacity	56 +/- 3 pF/ Km
Operating voltage	350V
Operating temperature	-40°C ~ +70°C
min. Bending Radius	10 x D
Flame Test	VDE 0482-265-2-1 & EN 50265-2-1
Flame Test	IEC 60332-1-2
